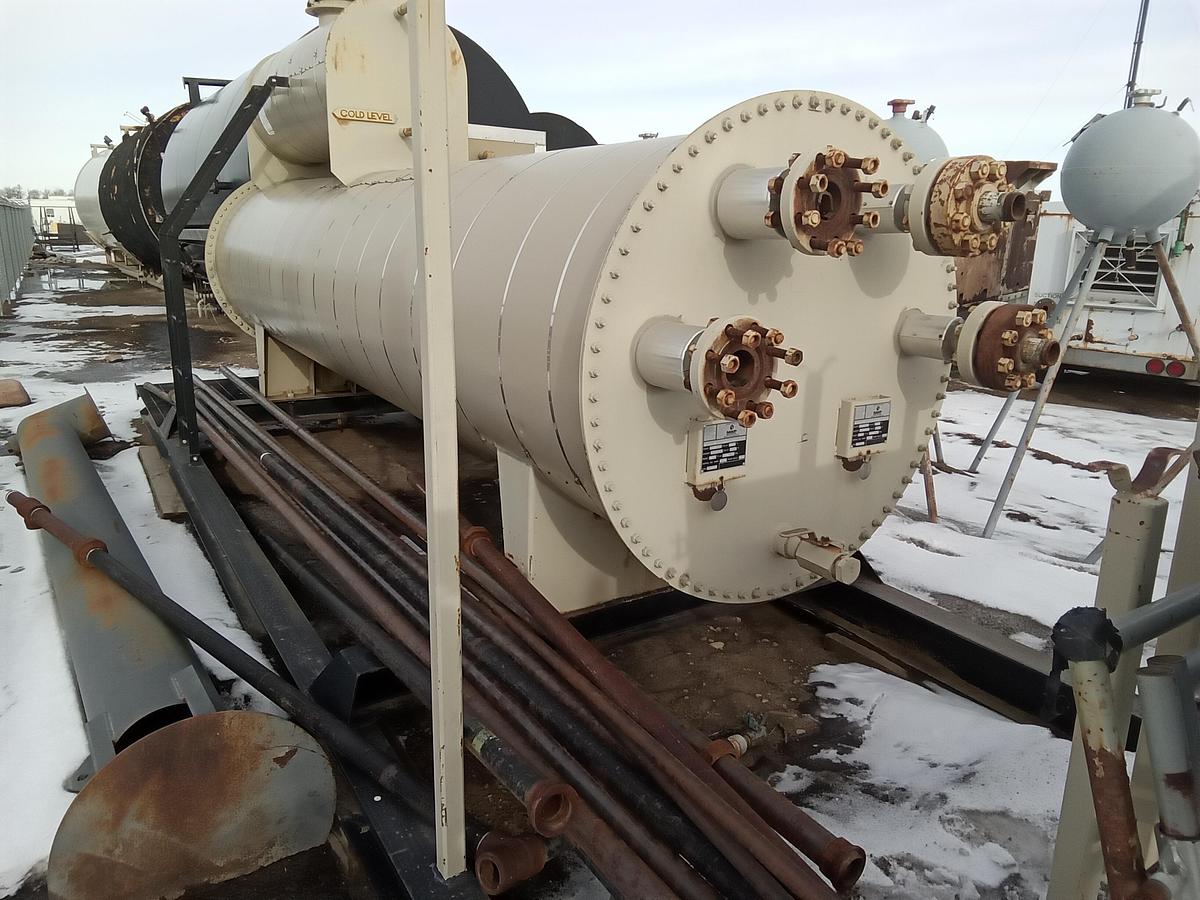

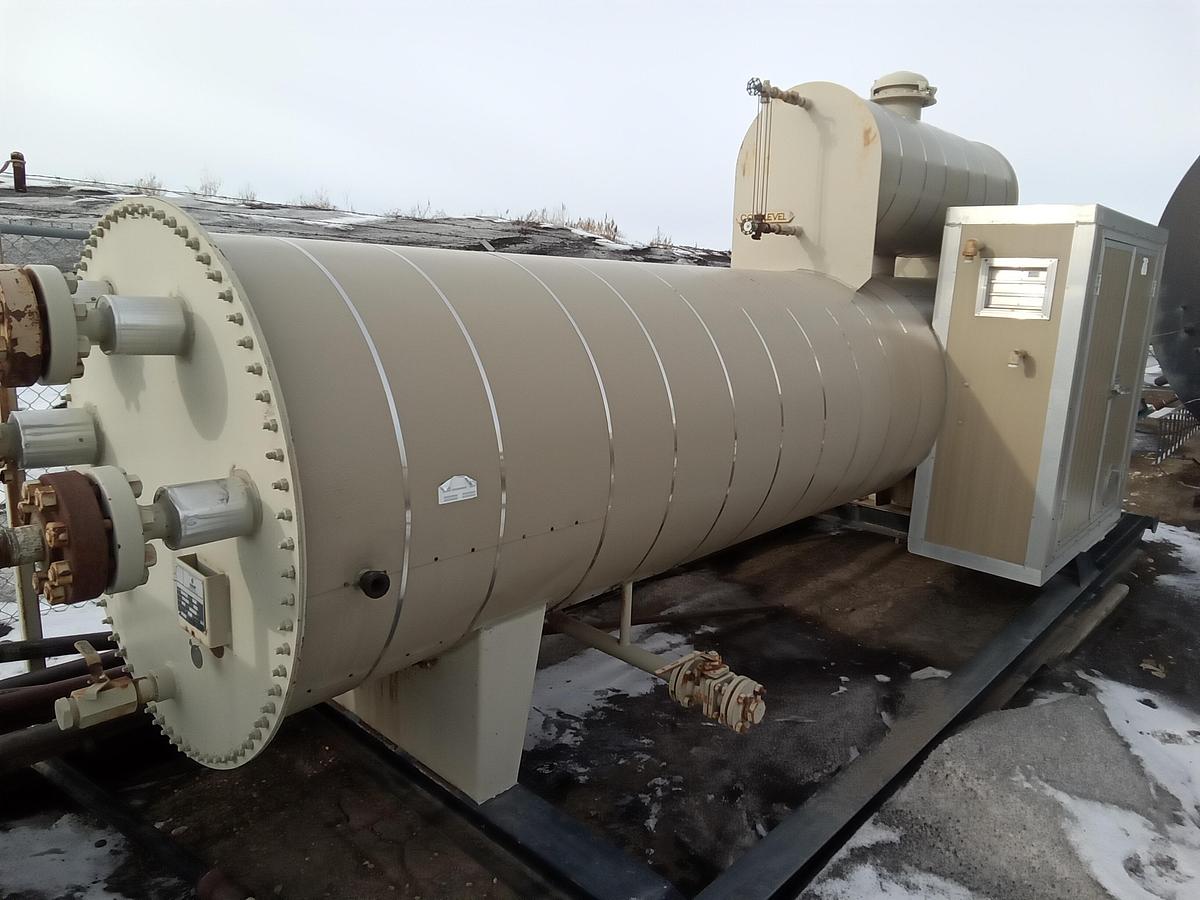

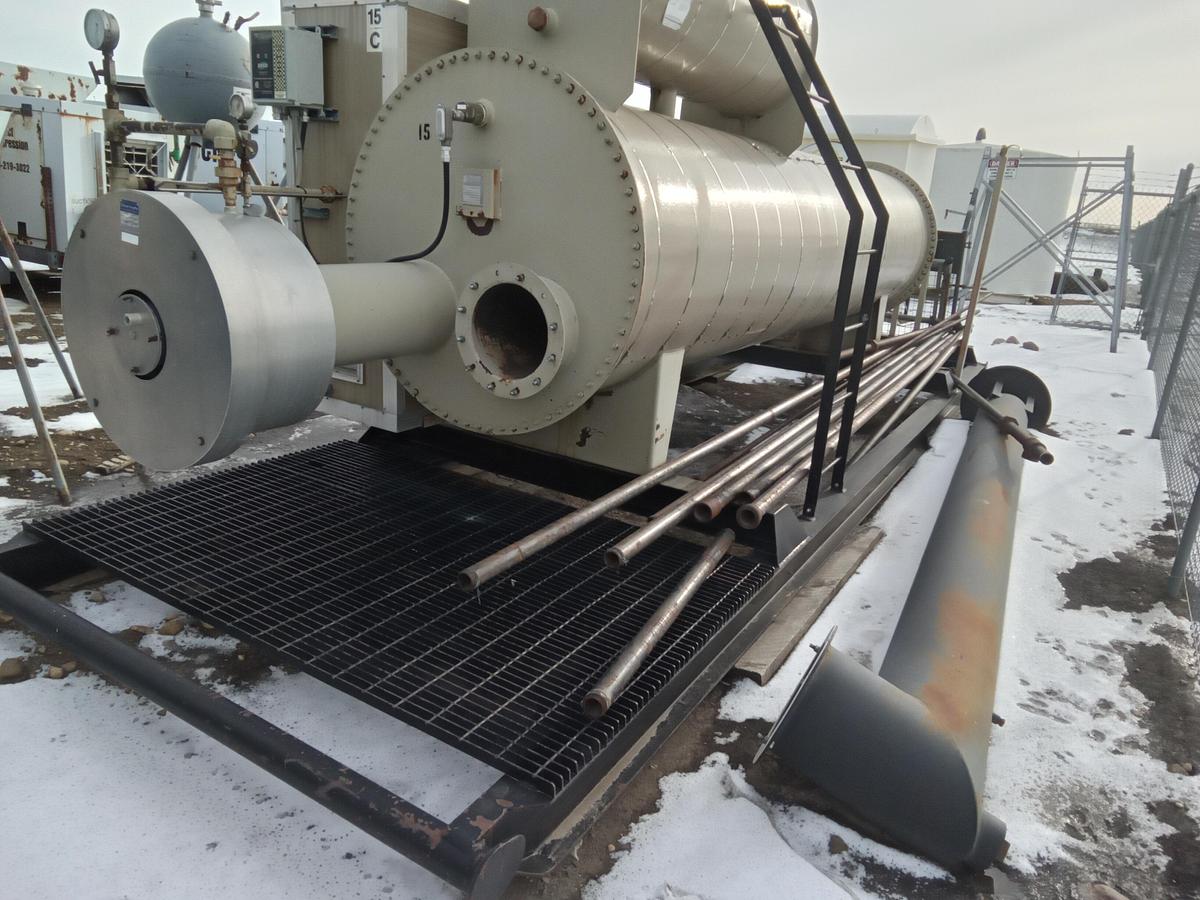

1.0 MMBTU/hr Sour Line Heater #16245

1.0 MMBTU/hr Sour Line Heater #16245

Location:Alberta, Canada

or
Call 403-861-8873

Description

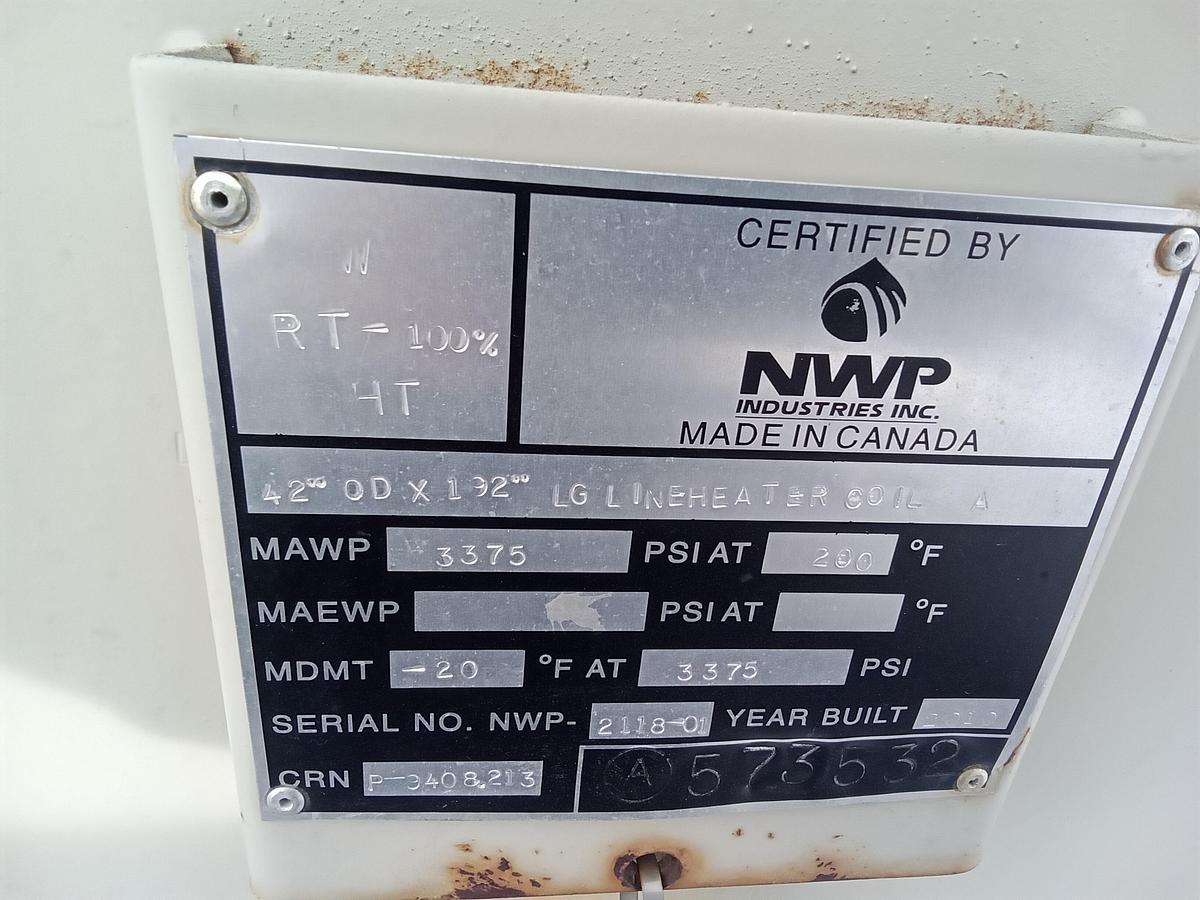

COIL #1 - (8) Eight Passes of 3” Sch. XXH Pipe c/w 2” 1500# RTJ flanged outer end, MAWP 3375 Psi @ -20/200 F, Constructed with Alberta, BC and Sask. Registration, 0.125” corrosion allowance, 100% XRAY PWHT, 123 sq. ft Heating Surface.

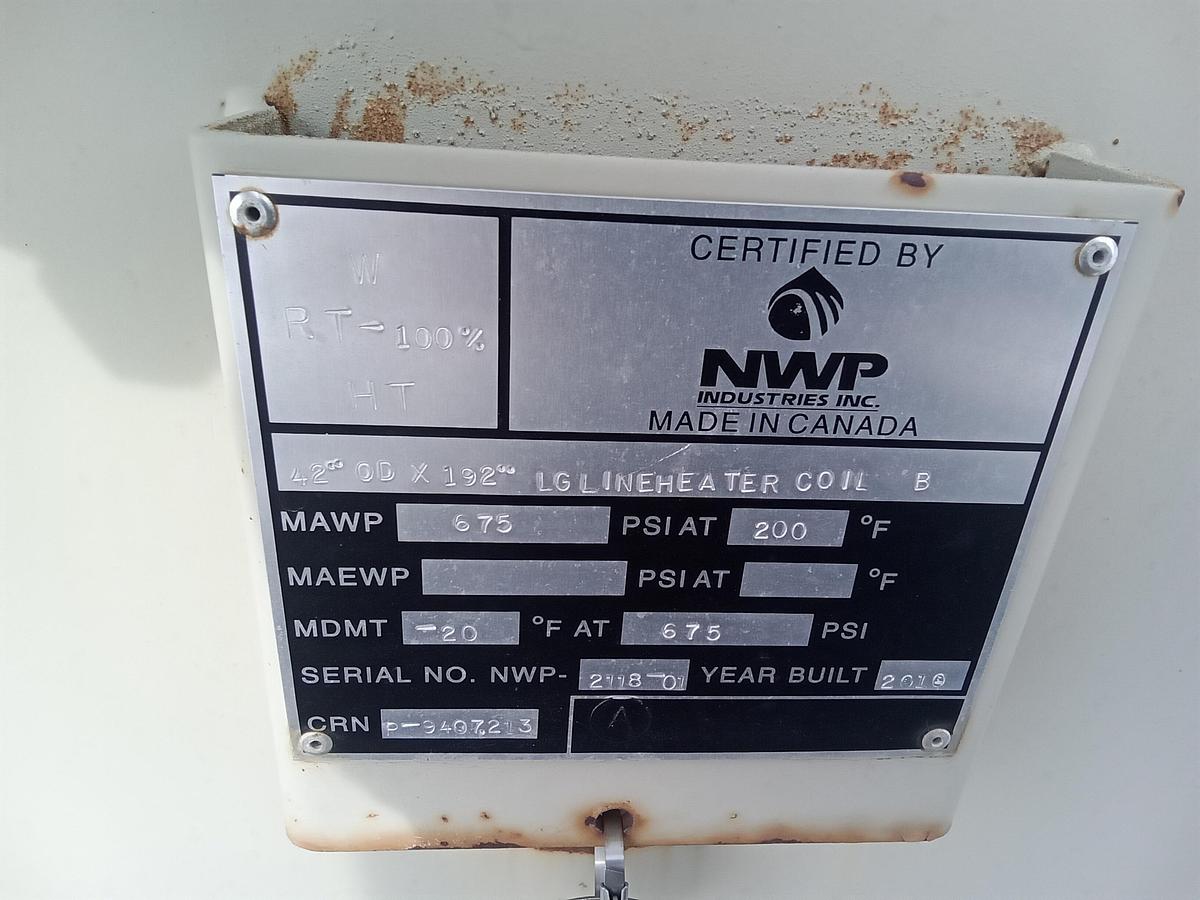

COIL #2 - (2) Two Passes of 3” Sch. XH Pipe c/w 3” 300# RFF flanged outer end, MAWP 675 Psi @ -20/200 F, Constructed with Alberta, BC and Sask. Registration, 0.125” corrosion allowance, 100% X ray, PWHT, 18.41 sq. ft Heating Surface.

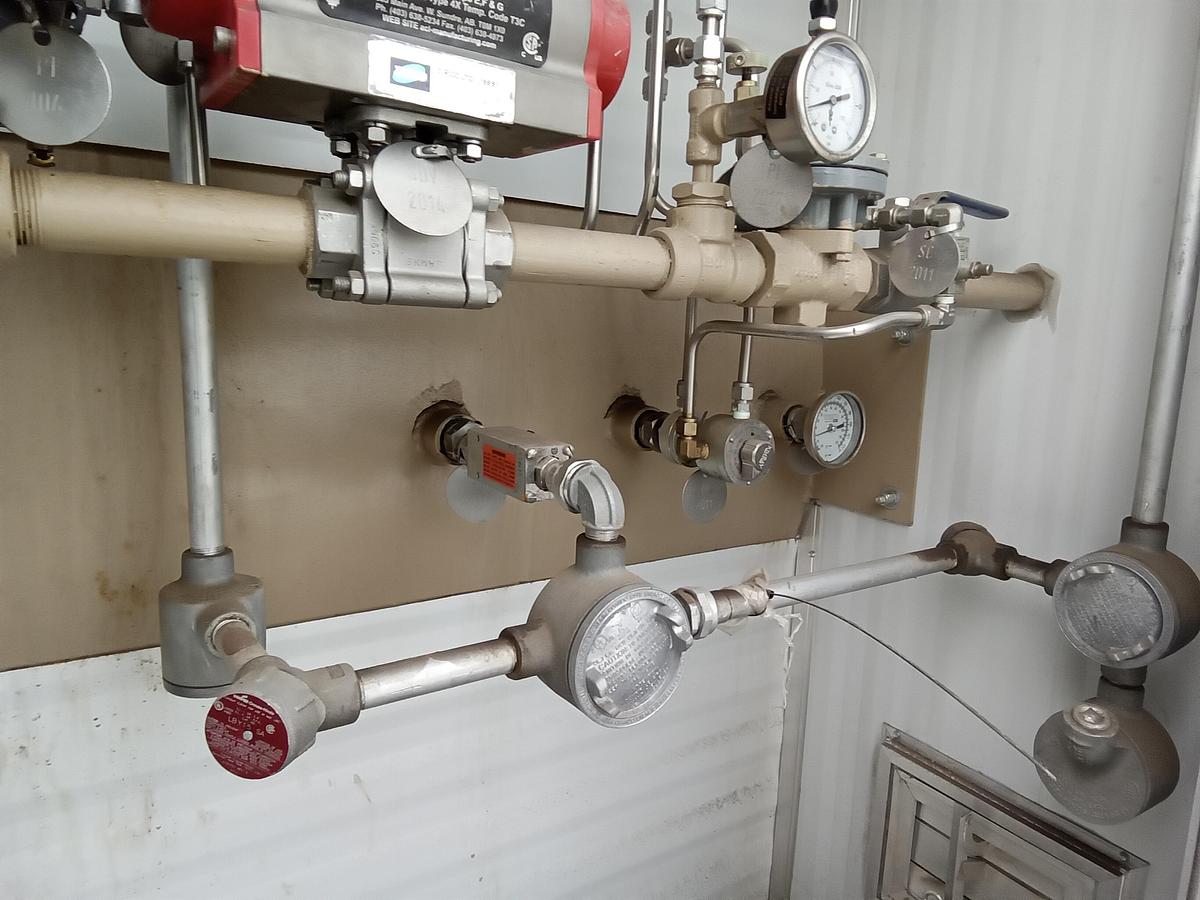

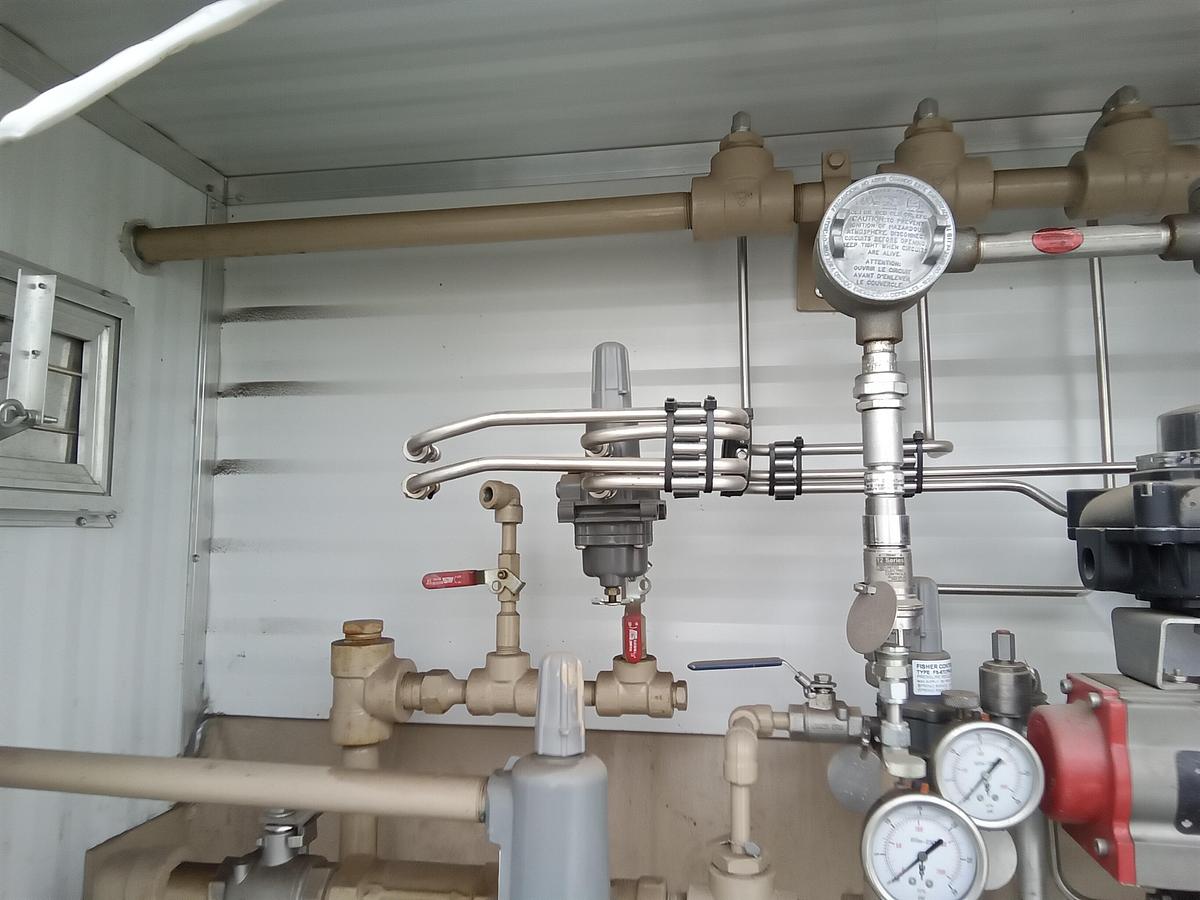

ACL-5100 BMS system installed and wired.

Show All

Specifications

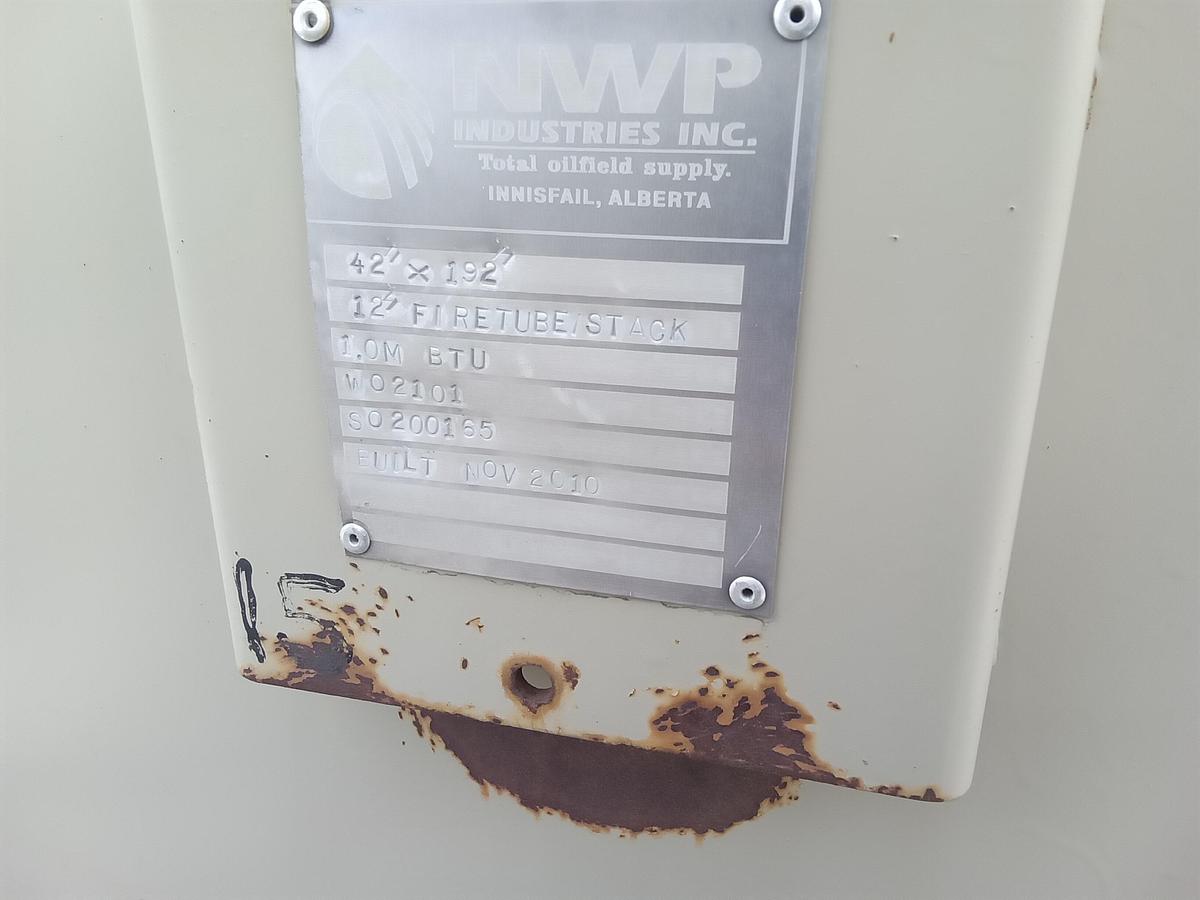

ManufacturerNWP Industries LP
Year2010
ConditionUsed
Serial Number2118-01
Stock Number16245
Rating (BTU/Hr)1,000,000
ANSI Rating1500 ANSI / 3375psi
Length15'
InsulationYes
BMSACL-5100 BMS
CRN#P9408.213
