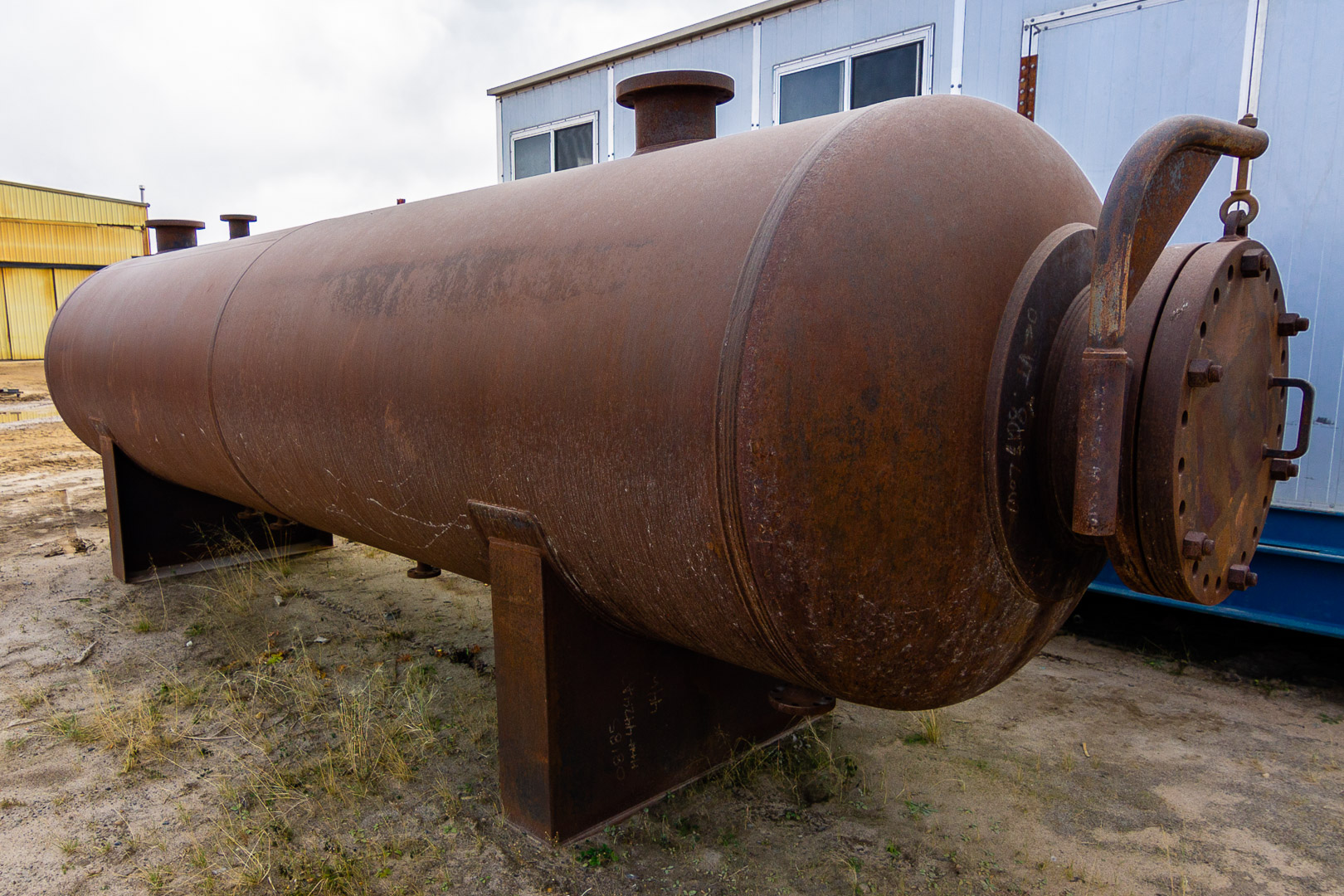

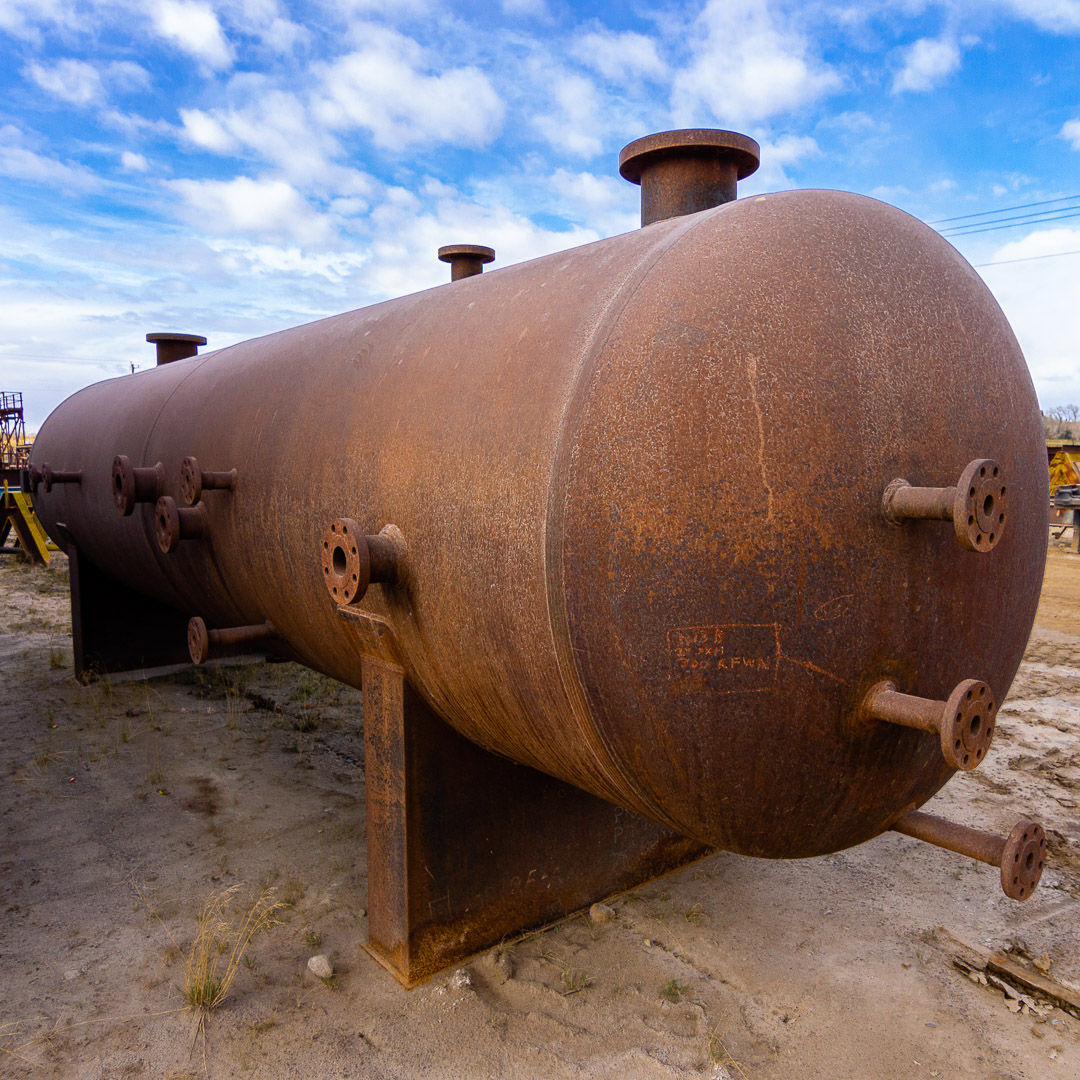

60” x 20’ 740 PSI Sour Vessel #16155

VESSEL CONNECTIONS

N1 Inlet : 8” NPS 300# RF Flange w/ deflector

N2 Gas Outlet : 8” NPS 300# RF Flange w/ mesh pads

N3 Oil Outlet : 2” NPS 300# RF Flange w/ vortex breaker

N4 Water Outlet : 2” NPS 300# RF Flange w/ vortex breaker

N5 Pressure Indicator : 2” NPS 300# RF Flange

N6 Temperature Indicator : 2” NPS 300# RF Flange

N7 Pressure Relief : 3” NPS 300# RF Flange

N8 High Level Shutdown : 4” NPS 300# RF Flange

N9 Oil Level Control : 3” NPS 300# RF Flange

N10 Water Level Control : 3” NPS 300# RF Flange

N11 Drain : 3” NPS 300# RF Flange

N12a Water Level Gauge High : 2” NPS 300# RF Flange

N12b Water Level Gauge Low : 2” NPS 300# RF Flange

N13a Oil Level Gauge High : 2” NPS 300# RF Flange

N13b Oil Level Gauge Low : 2” NPS 300# RF Flange

M1 Manway : 20” NPS 300# RF Flange
