30" 1440 PSI Vertical Sour Separator Package w/Integral 400 BBL Tank - 16066
Sold
30" 1440 PSI Vertical Sour Separator Package w/Integral 400 BBL Tank - 16066
Location:Alberta, Canada
Description
Field Run RJV 10' x 30" 3-Phase Vertical Sour Separator Package has a design pressure of 1440 PSI. The unit is equipped with a 400 BBL tank capacity.

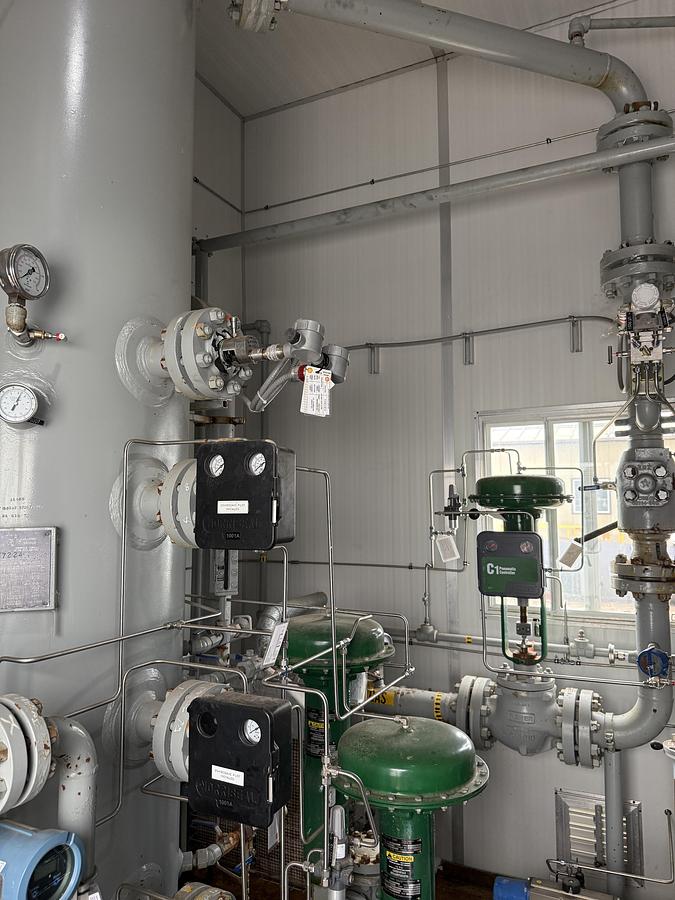

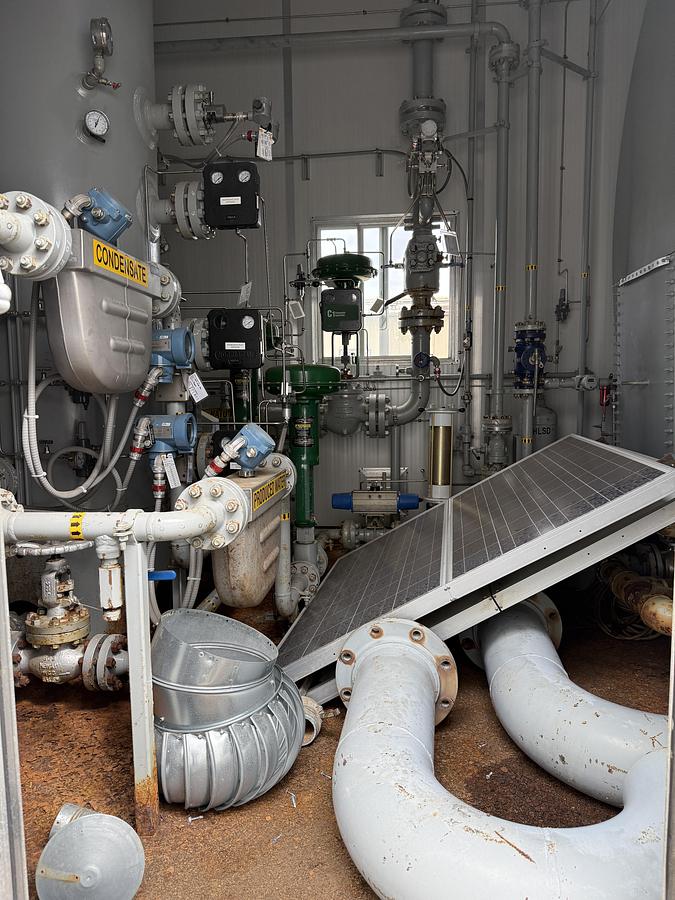

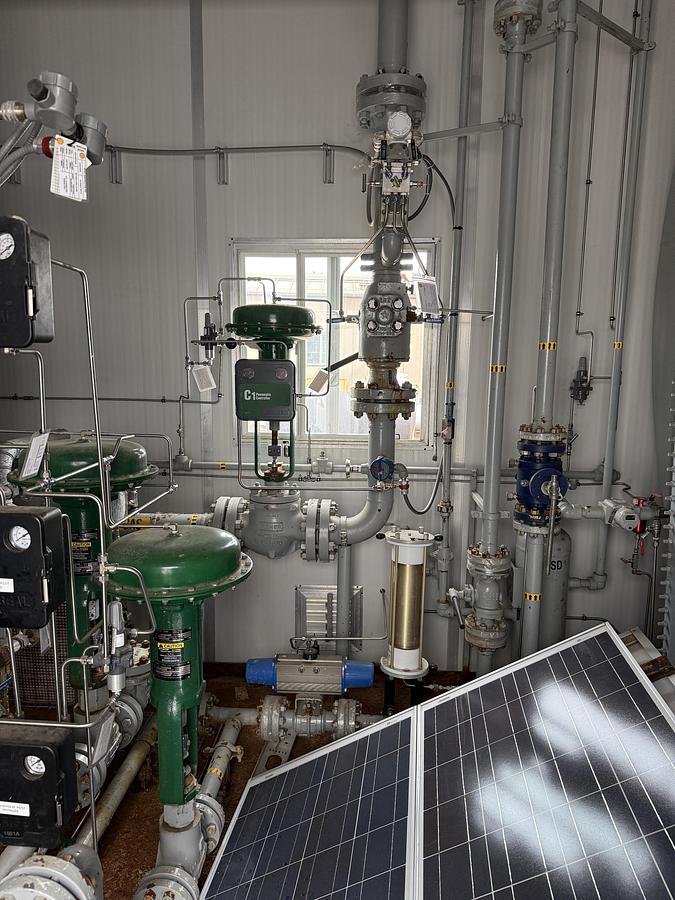

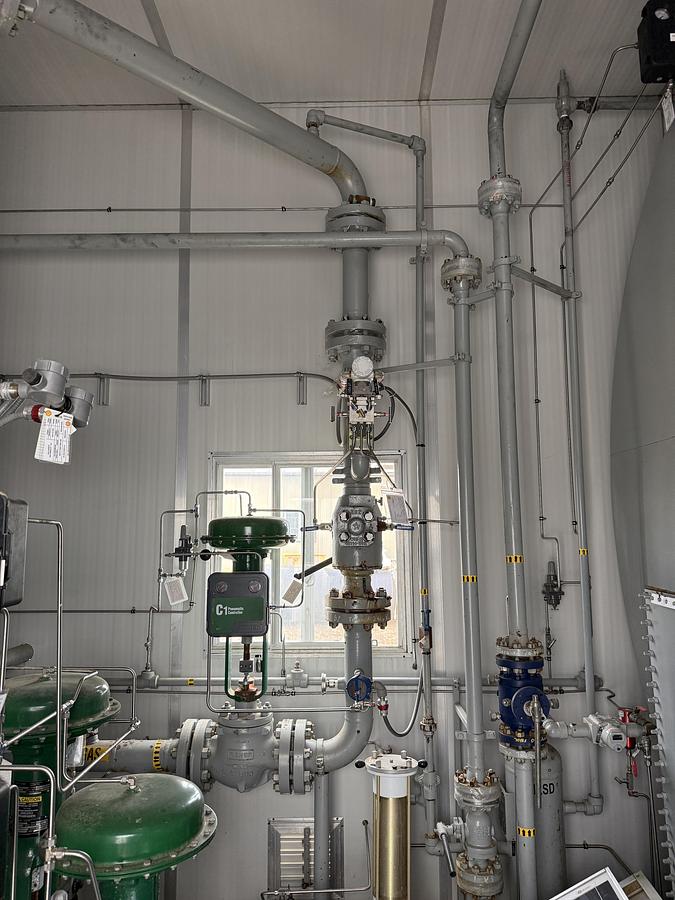

Inlets and outlets, all sized at 4" with 600 ANSI RF ratings. Additionally, the sales gas is managed through a 4" 600 ANSI Senior Meter Run complemented by a Fisher BPCV. The condensate and water are processed through a 2" 600 ANSI LCV with Coriolis meters. The entire setup is housed in a 38'6" L x 11'6" W building, with a corresponding skid.
Specifications
| Manufacturer | RJV |
| Year | 2012 |
| Condition | Used |
| Serial Number | 12495 |
| Stock Number | 16066 |
| Diameter | 30" |
| Design Pressure | 1440 PSI |
| Orientation | Vertical |
| Service | Sour |
| Length | 10' |
| Phase | 3 Phase |

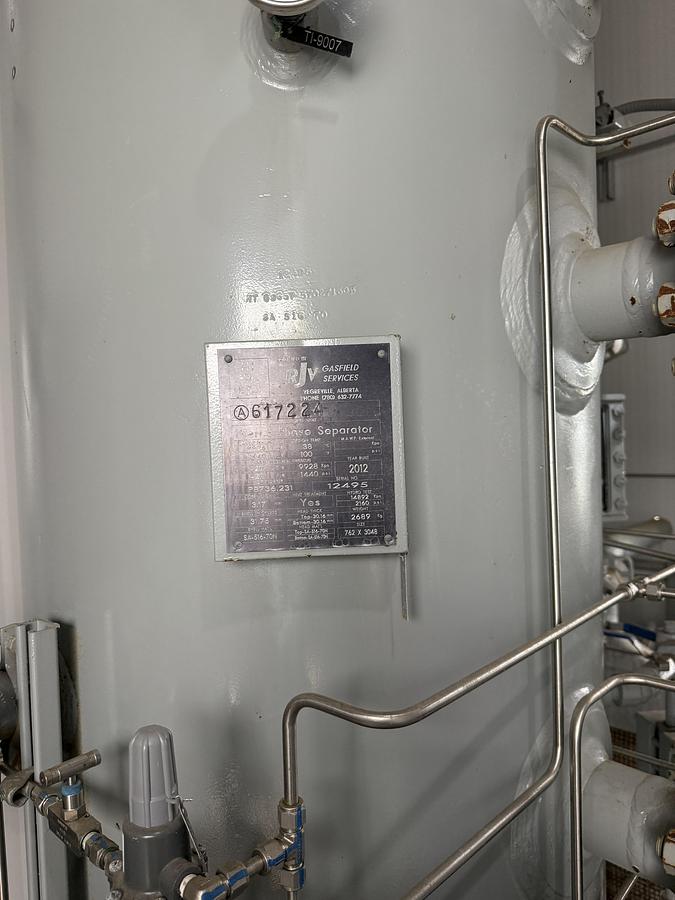

| A# | 617224 |
| CRN# | P8736.231 |
| Inlet | 4" 600 ANSI RF |
| Outlet | 4" 600 ANSI RF |
| Sales Gas | 4" 600 ANSI Senior Meter Run w/4" 600 ANSI Fisher BPCV |

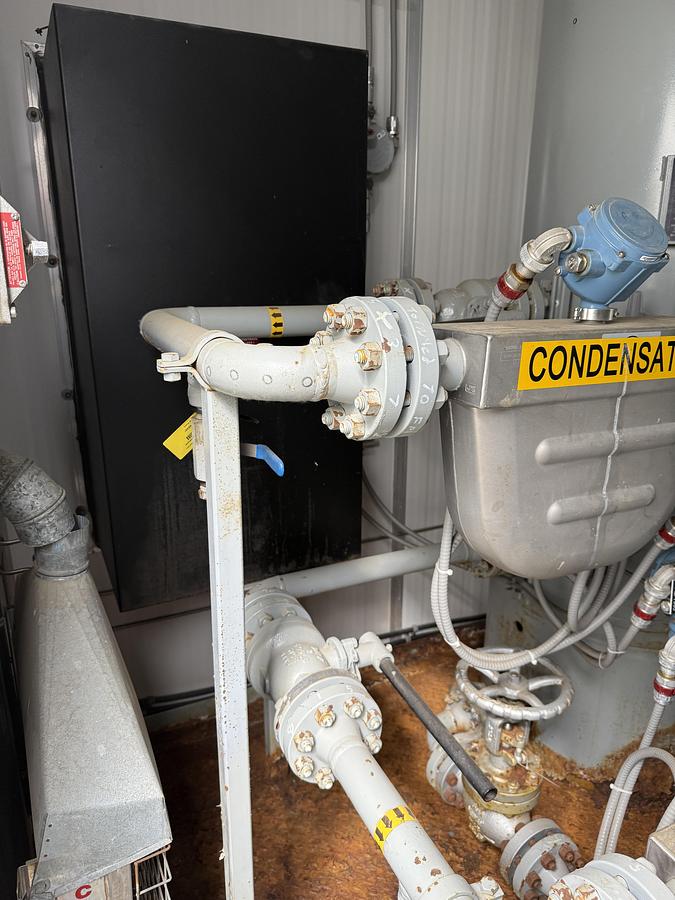

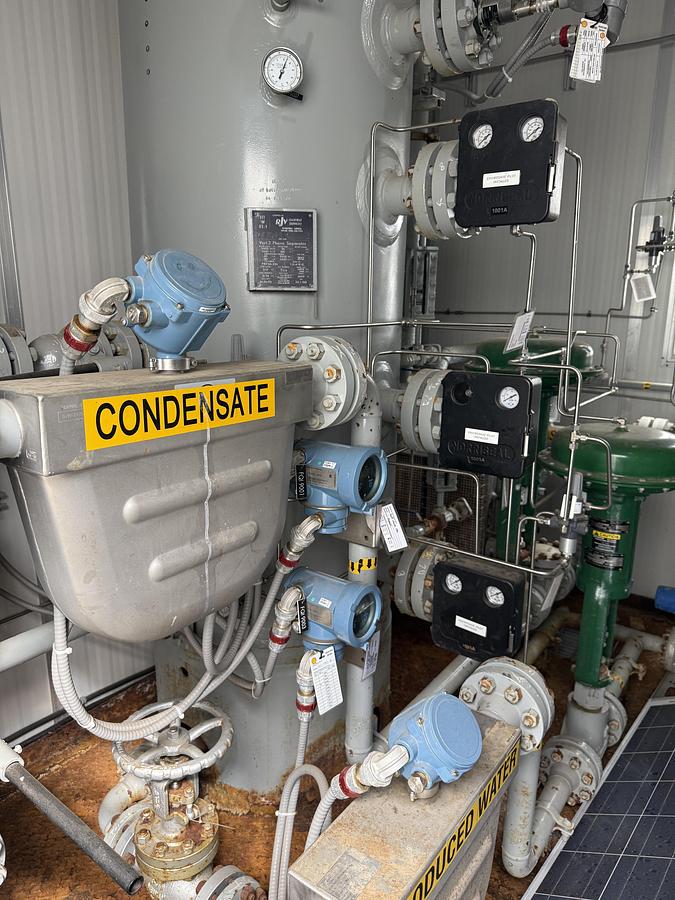

| Condensate Details | 2" 600 ANSI LCV w/ 2" 600 ANSI Coriolis Meter |
| H2O Details | 2" 600 ANSI LCV w/ 2" 600 ANSI Coriolis Meter |
| Fuel Gas | 6" x 30" 150 PSI Fuel Gas Scrubber w/ PSV & Fuel Gas Regulator |

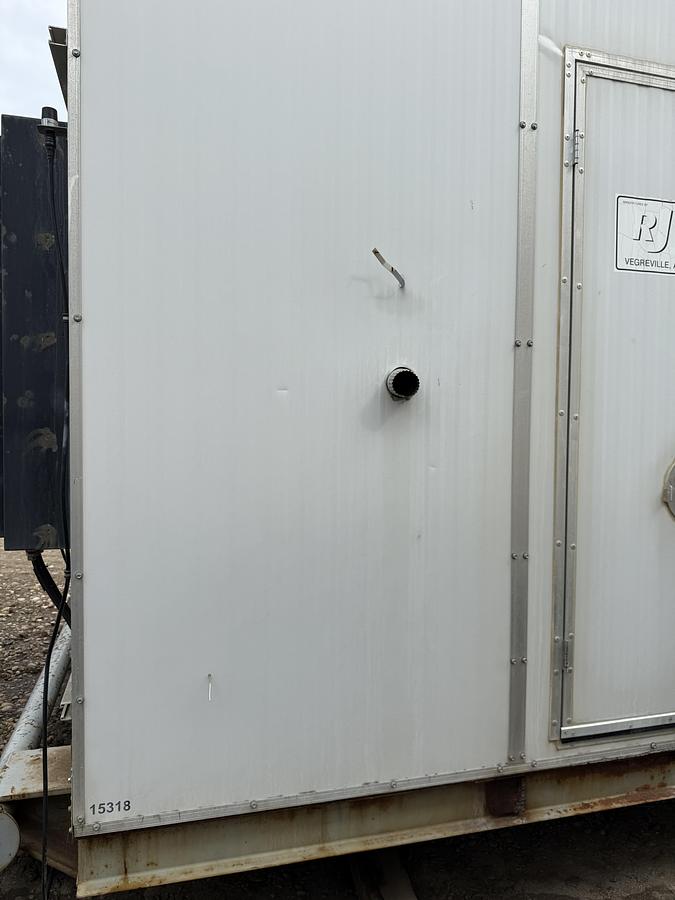

| Building | 11'6" W x 38'6" L x 14'10" H |
| Skid | 11'6" W x 38'6" L |
