30" 1440 PSI Vertical Sour Separator Package w/Integral 400 BBL Tank - 16065
30" 1440 PSI Vertical Sour Separator Package w/Integral 400 BBL Tank - 16065
Location:Alberta, Canada
or
Call 587-779-6921
Description

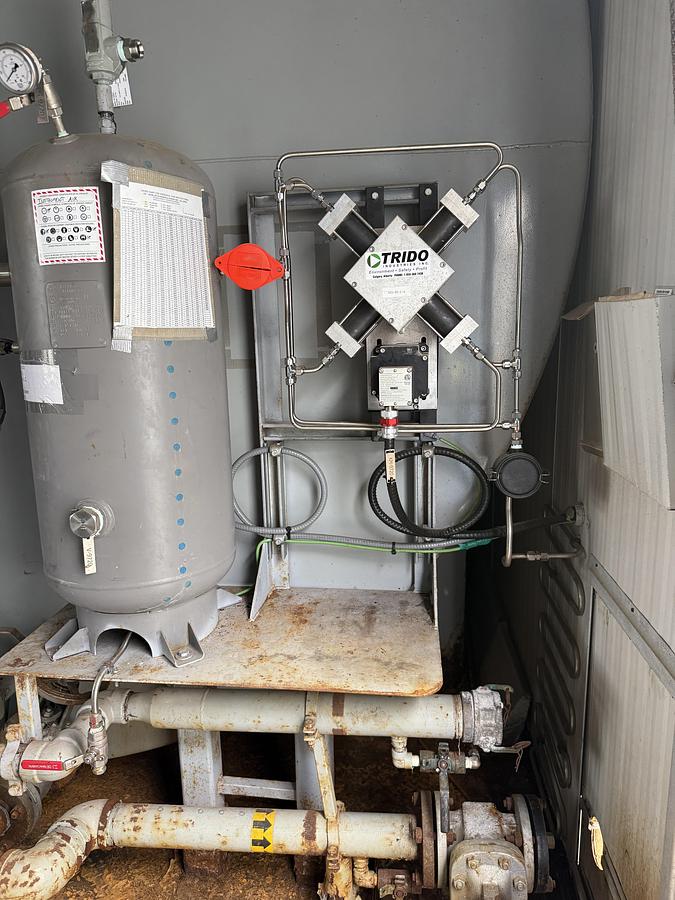

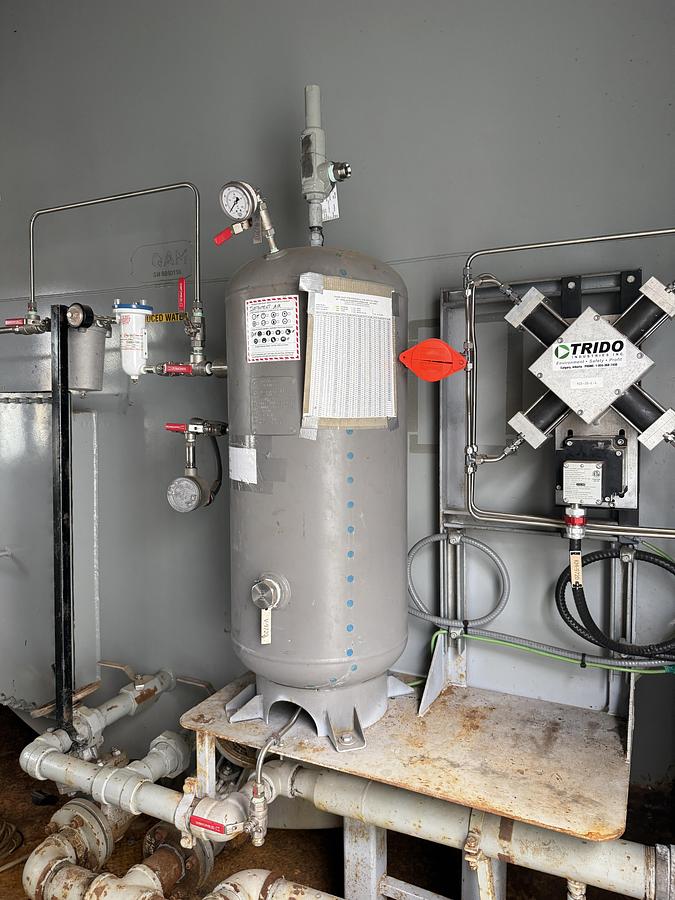

As per RJV Shop Drawing 4840 with the Addition of Trido Solar Powered Self Contained Air Compressor

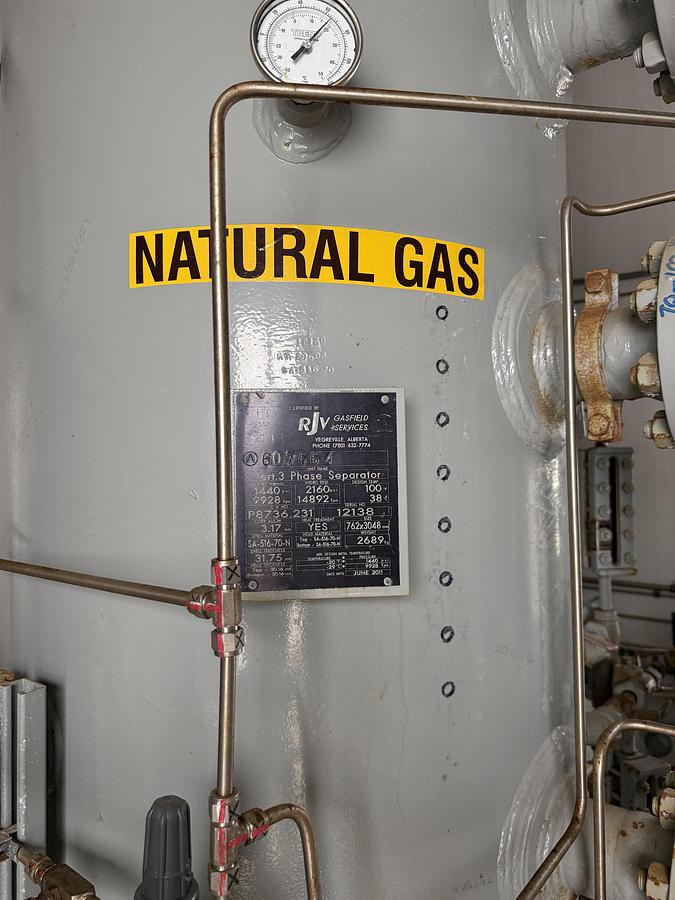

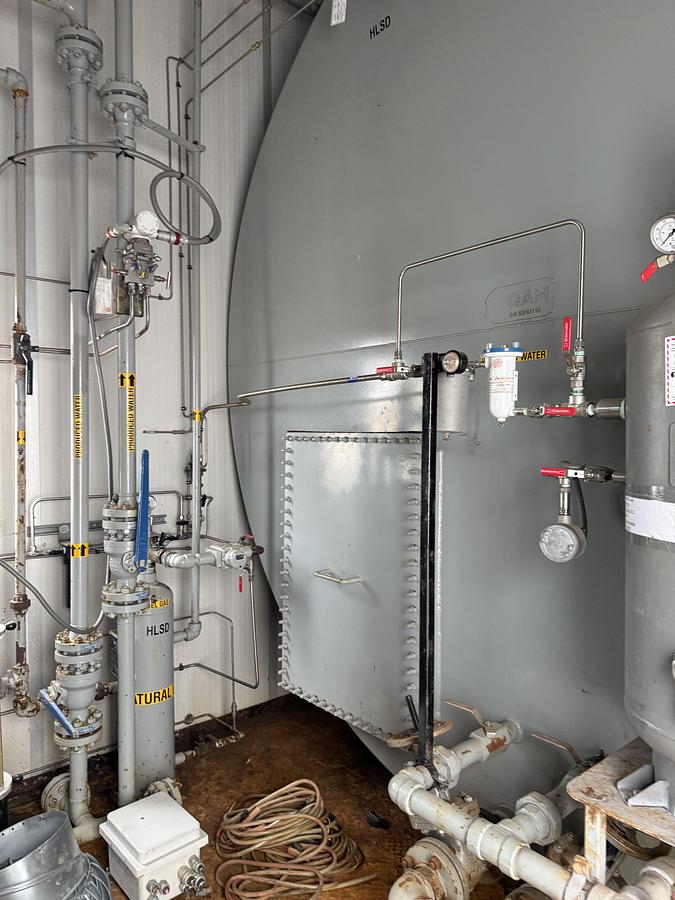

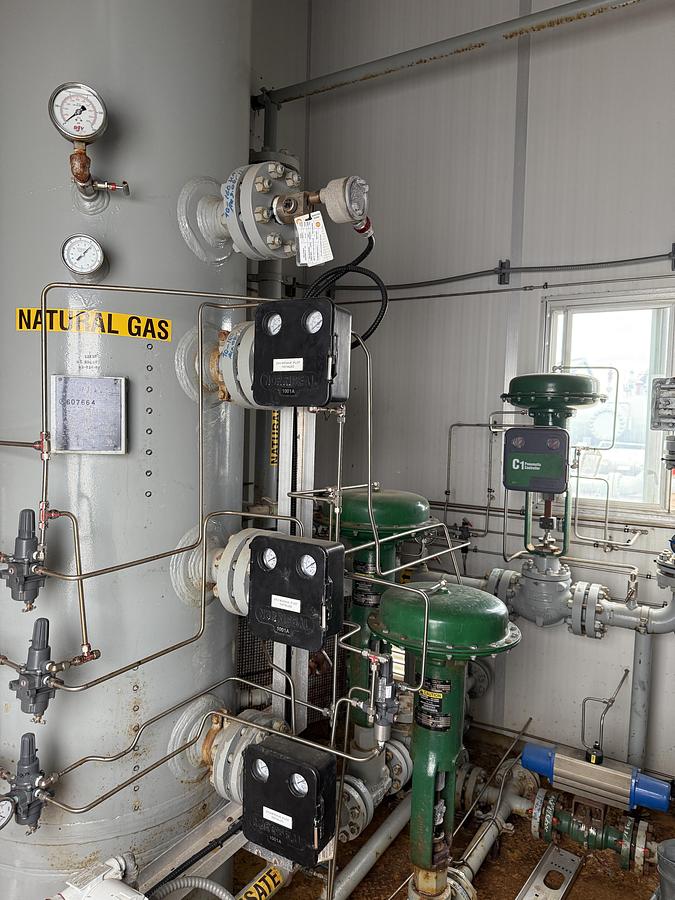

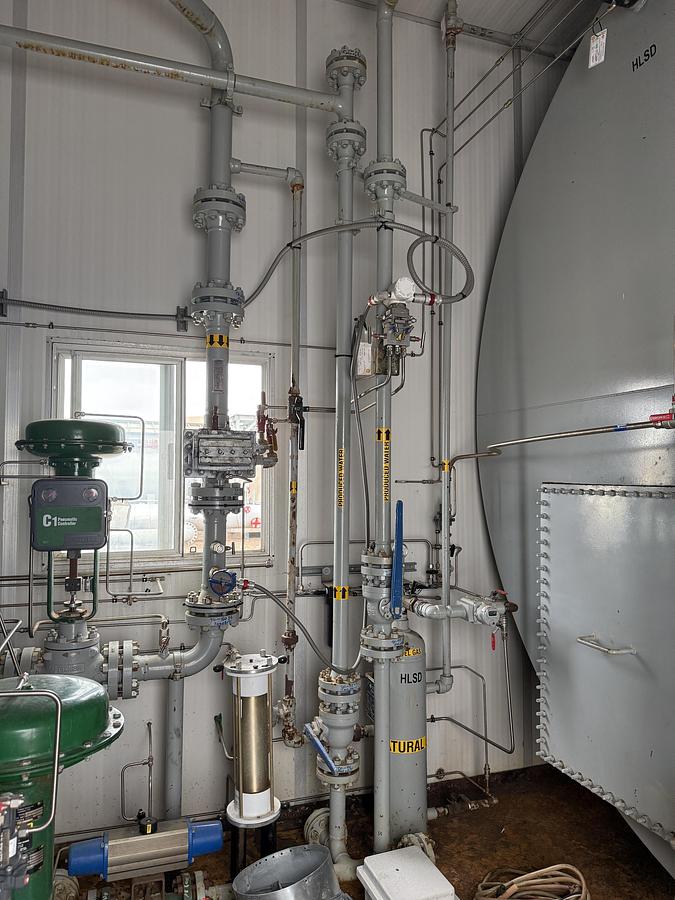

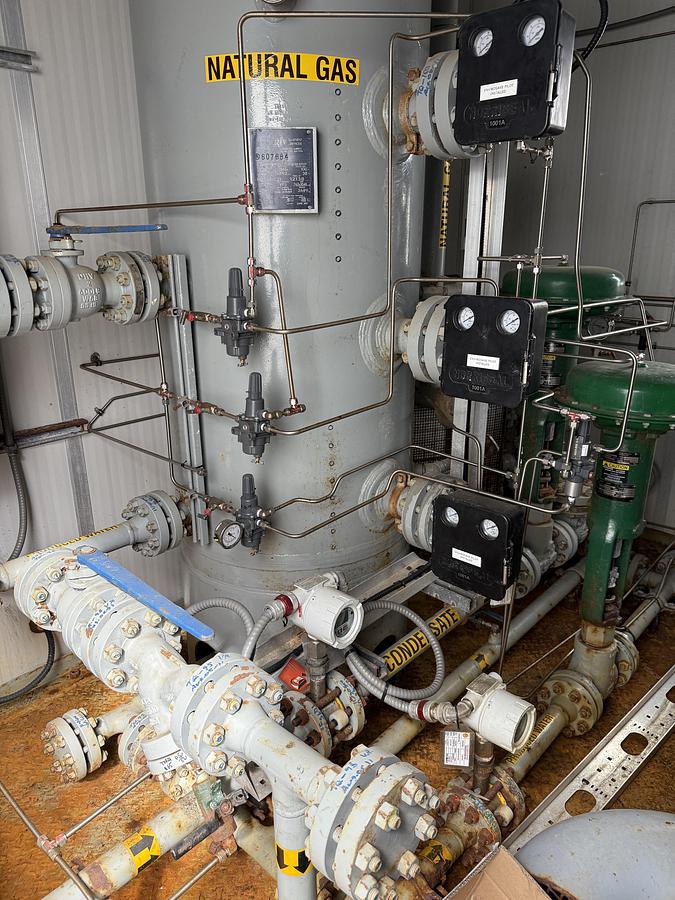

The used 30" x 10' 1440 PSI vertical sour separator package by RJV is designed to efficiently manage three-phase separation in sour service applications. The separator includes a 400 BBL tank.

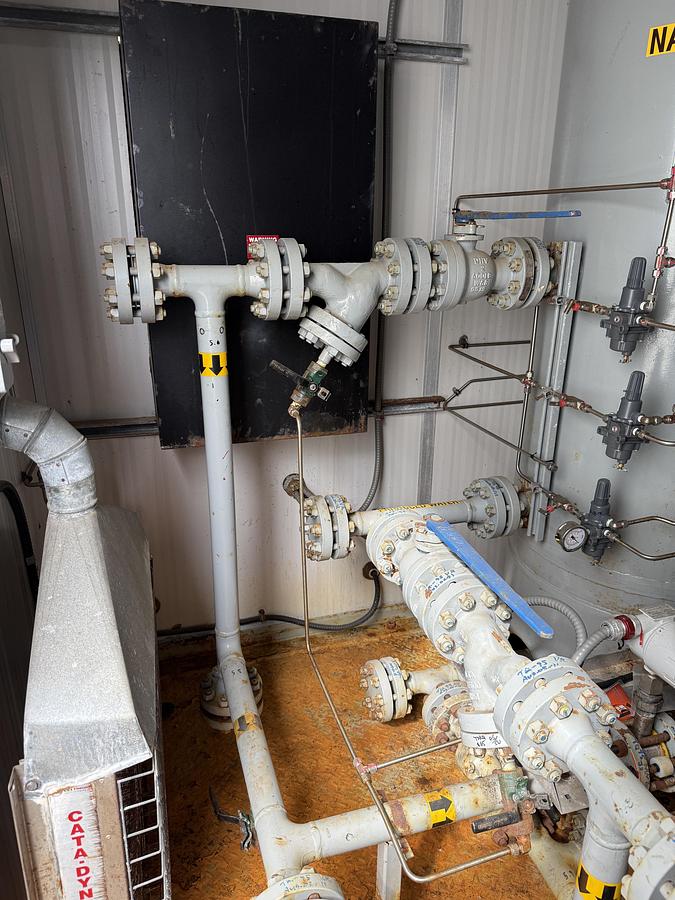

Key specifications include a 4" 600 ANSI RF inlet and outlet. The package is well-equipped with a 3" 600 ANSI senior meter run with a Fisher BPCV for sales gas management. A fuel gas scrubber is included, measuring 6" x 30", and rated at 150 PSI, complete with a PSV and fuel gas regulator to ensure safe and efficient operations.

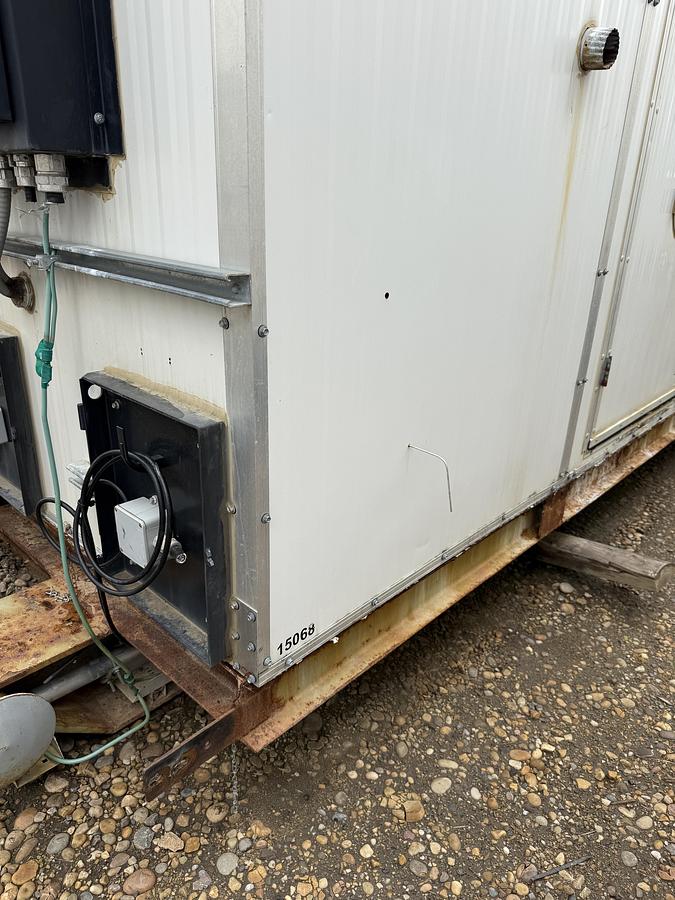

The assembly is housed in a building measuring 11'6" in width, 38'6" in length, and 14'10".
Specifications
| Manufacturer | RJV |
| Year | 2011 |
| Condition | Used |
| Serial Number | 12138 |
| Stock Number | 16065 |
| Diameter | 30" |
| Design Pressure | 1440 PSI |
| Orientation | Vertical |
| Service | Sour |
| Length | 10' |
| Phase | 3 Phase |
| A# | 607664 |
| CRN# | P8736.231 |
| Inlet | 4" 600 ANSI RF |
| Outlet | 4" 600 ANSI RF |

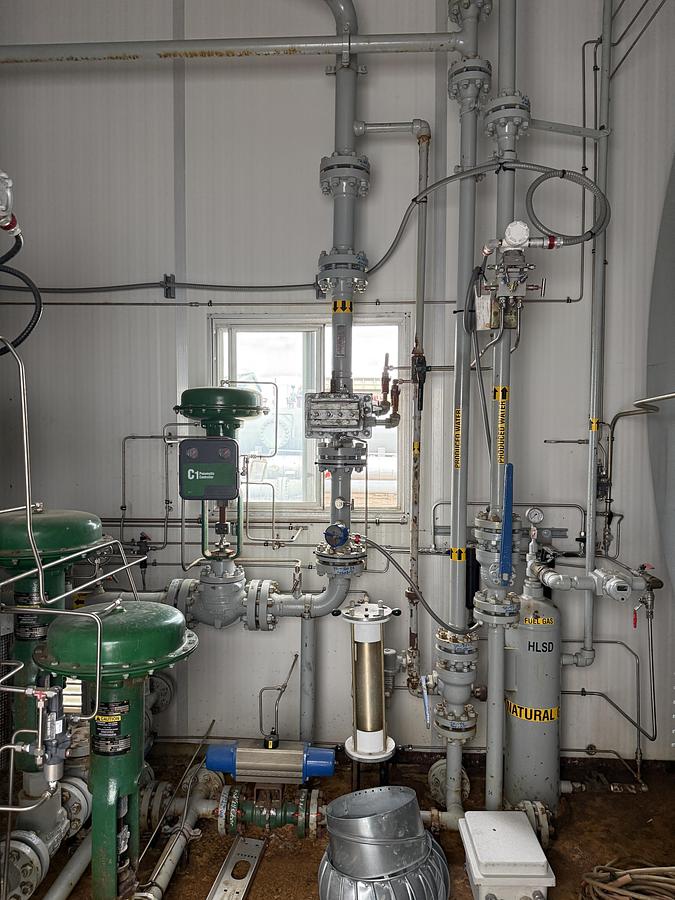

| Sales Gas | 3" 600 ANSI Senior Meter Run w/3" 600 ANSI Fisher BPCV |
| Condensate Details | 2" 600 ANSI LCV w/ Liquid Meter, Y-Strainer & Prover Taps |
| H2O Details | 2" 600 ANSI LCV w/ Liquid Meter, Y-Strainer & Prover Taps |
| Fuel Gas | 6" x 30" 150 PSI Fuel Gas Scrubber w/ PSV & Fuel Gas Regulator |
| Building | 11'6" W x 38'6" L x 14'10" H |
| Skid | 11'6" W x 38'6" L |
