30" 1440 PSI Vertical Sour Separator Package w/Integral 400 BBL Tank - 16064
30" 1440 PSI Vertical Sour Separator Package w/Integral 400 BBL Tank - 16064
Location:Alberta, Canada
Description

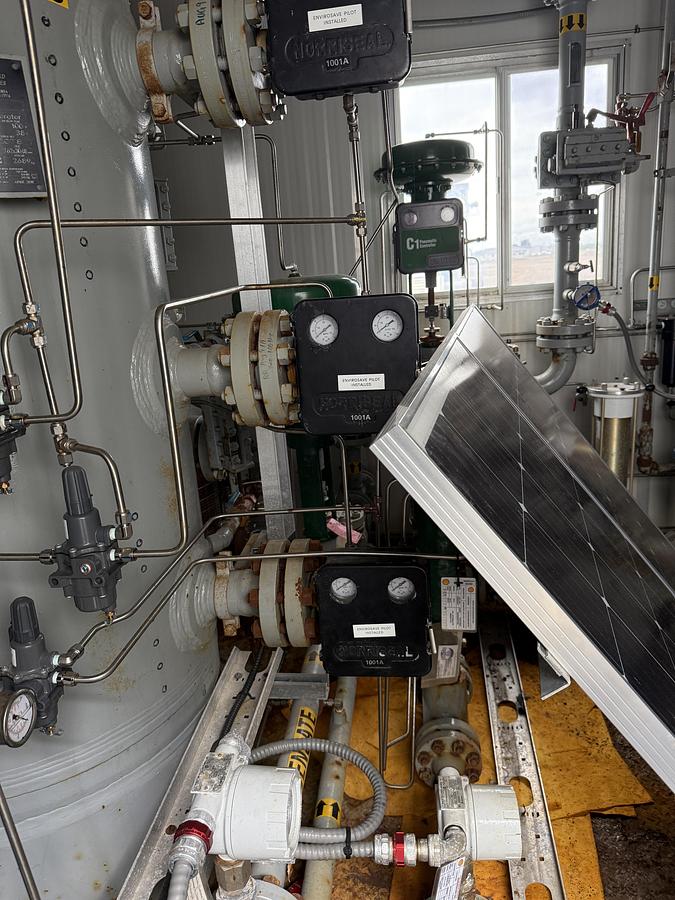

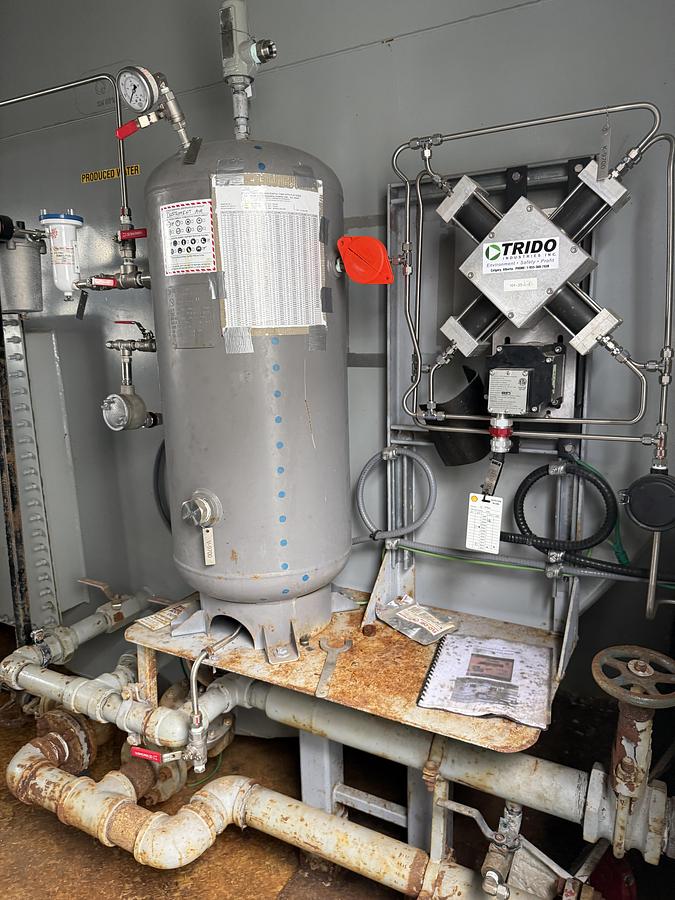

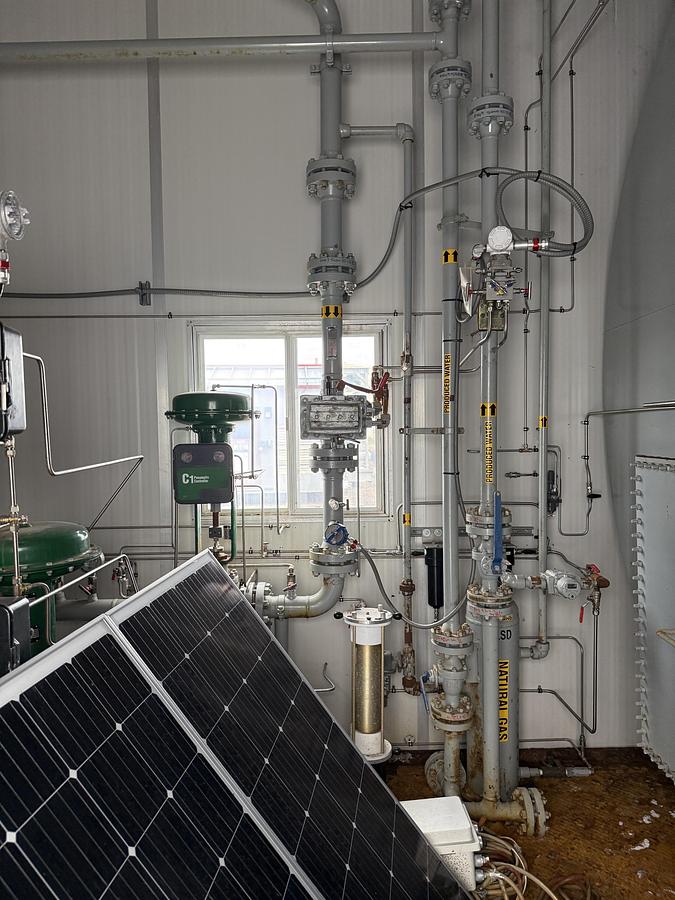

As per RJV Shop Drawing 4826 with the Addition of Trido Solar Powered Self Contained Air Compressor

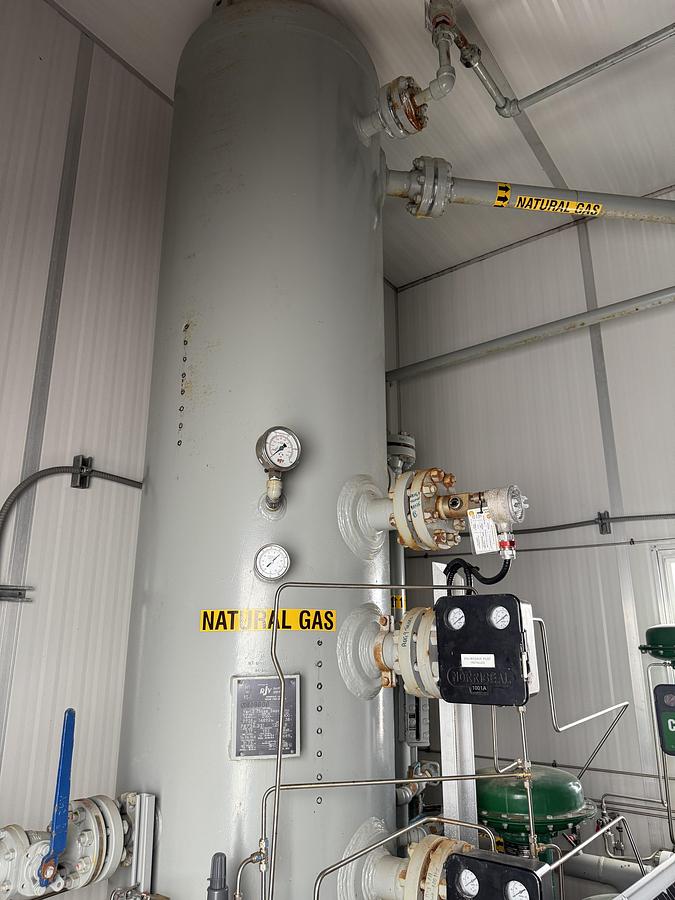

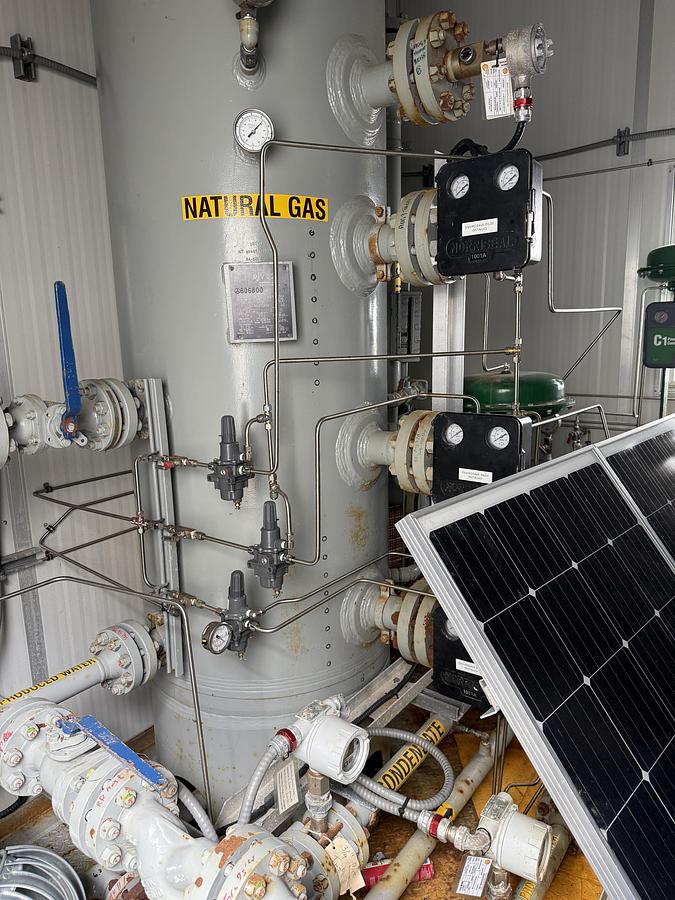

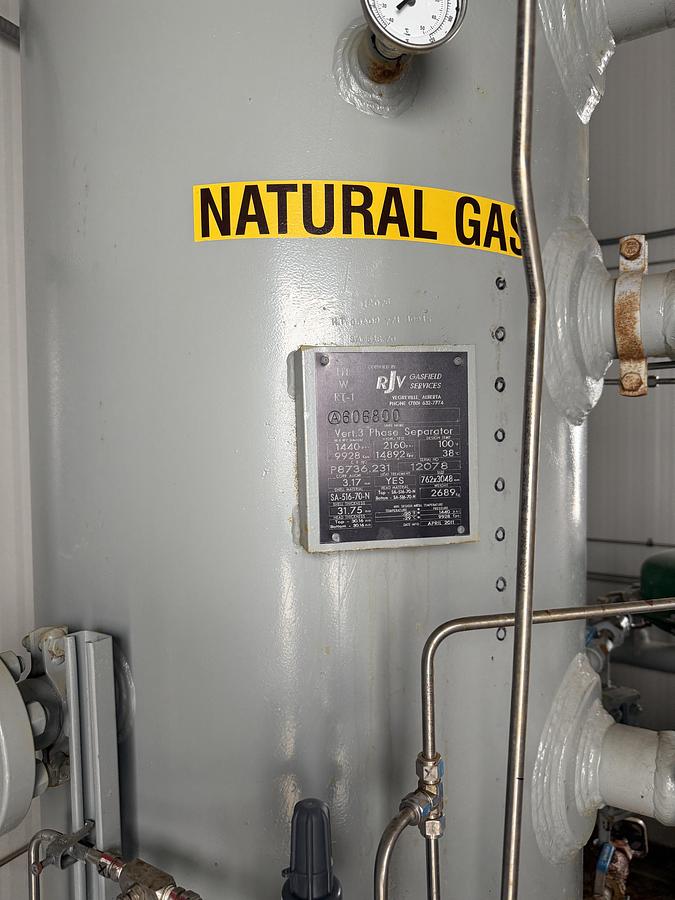

The used 30" 3 Phase 1440 PSI vertical sour separator package by RJV. The separator includes an integral 400 BBL tank to handle substantial volumes efficiently.

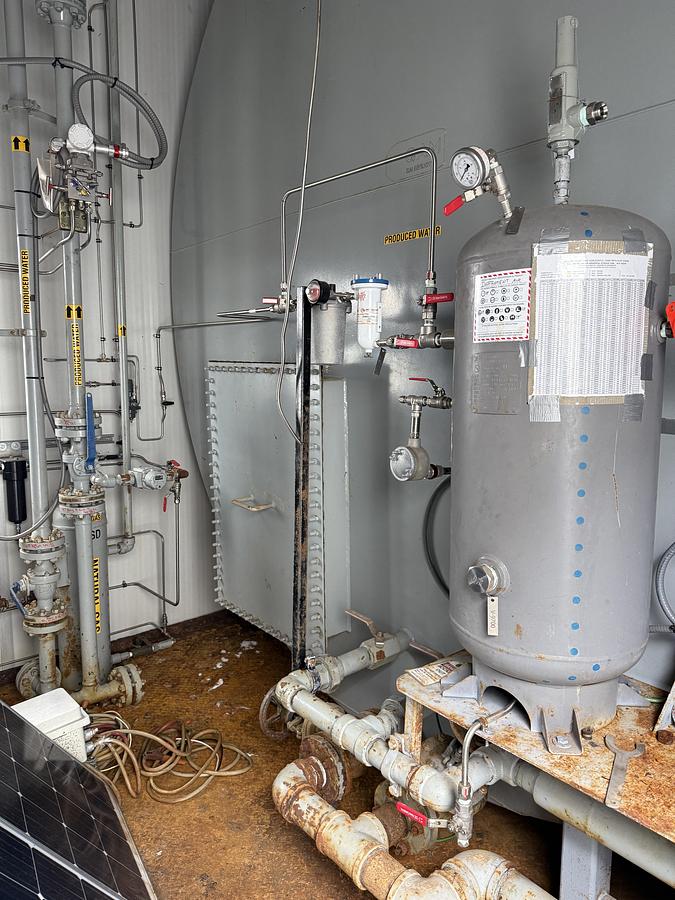

Key specifications include a 4" 600 ANSI RF inlet and outlet. The package has a 3" 600 ANSI senior meter run with a Fisher BPCV for sales gas management. Adequate provisions are made for condensate and water handling through 2" 600 ANSI LCVs, both fitted with liquid meters, Y-strainers, and prover taps. Additionally, a fuel gas scrubber is included, measuring 6" x 30", and rated at 150 PSI, complete with a PSV and fuel gas regulator.

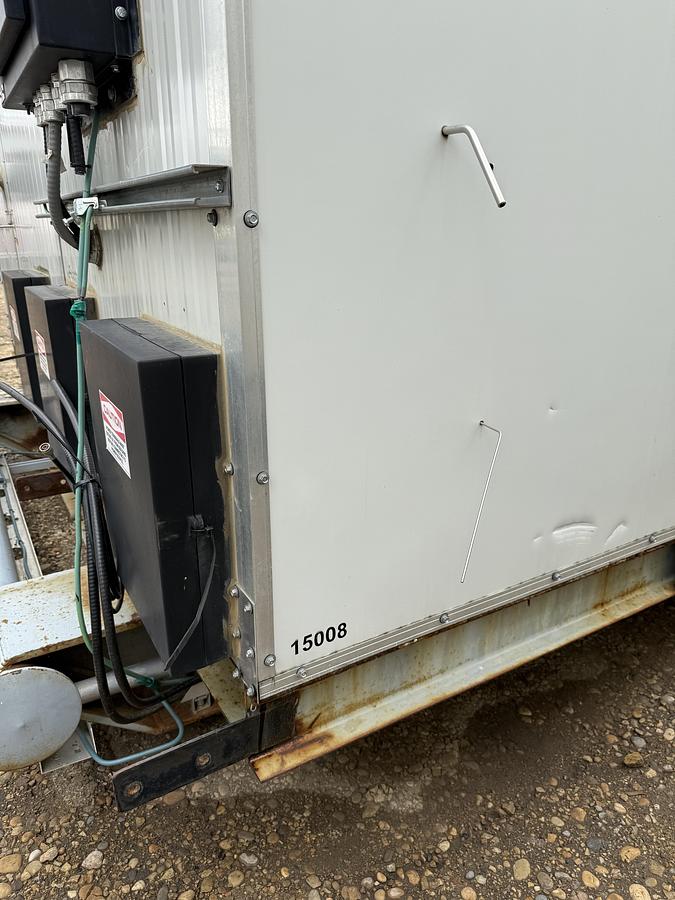

The assembly is housed in a building measuring 11'6" in width, 38'6" in length, and 14'10" in height.
Specifications
| Manufacturer | RJV |
| Year | 2011 |
| Condition | Used |
| Serial Number | 12078 |
| Stock Number | 16064 |
| Diameter | 30" |
| Design Pressure | 1440 PSI |
| Orientation | Vertical |
| Service | Sour |
| Length | 10' |
| Phase | 3 Phase |
| A# | 606800 |
| CRN# | P8736.231 |
| Inlet | 4" 600 ANSI RF |
| Outlet | 4" 600 ANSI RF |
| Sales Gas | 3" 600 ANSI Senior Meter Run w/3" 600 ANSI Fisher BPCV |
| Condensate Details | 2" 600 ANSI LCV w/ Liquid Meter, Y-Strainer & Prover Taps |
| H2O Details | 2" 600 ANSI LCV w/ Liquid Meter, Y-Strainer & Prover Taps |
| Fuel Gas | 6" x 30" 150 PSI Fuel Gas Scrubber w/ PSV & Fuel Gas Regulator |
| Building | 11'6" W x 38'6" L x 14'10" H |
| Skid | 11'6" W x 38'6" L |
