2000 BBL Cone Bottom Tank - 16060

2000 BBL Cone Bottom Tank - 16060

Location:Lloydminster, Canada

Description

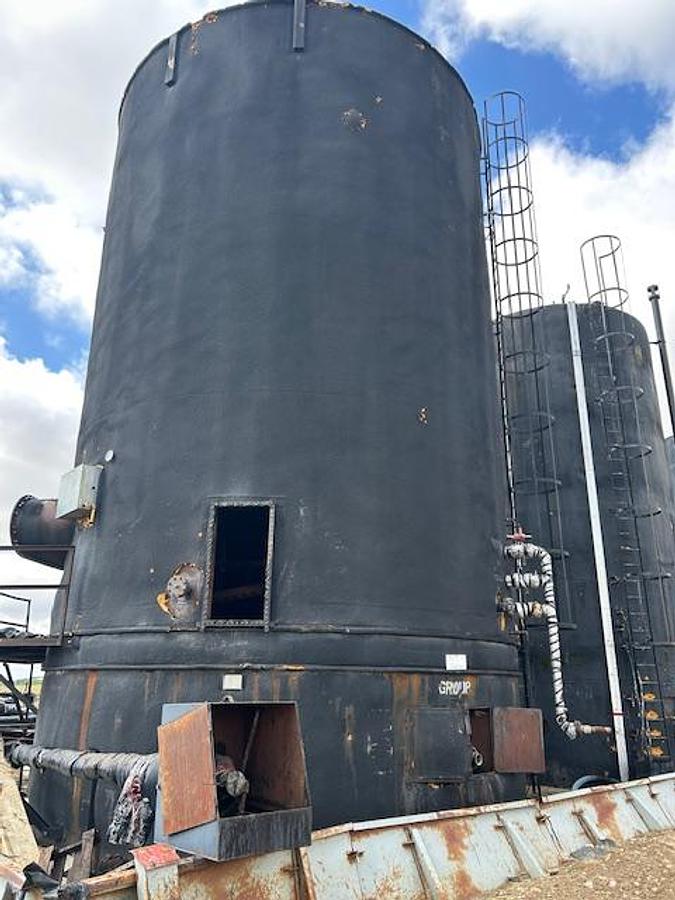

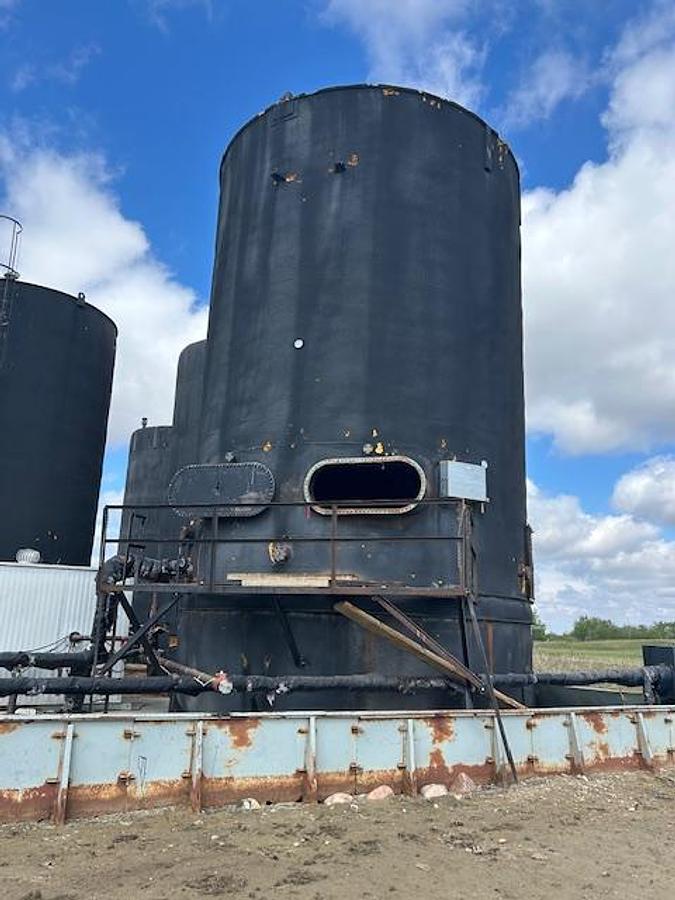

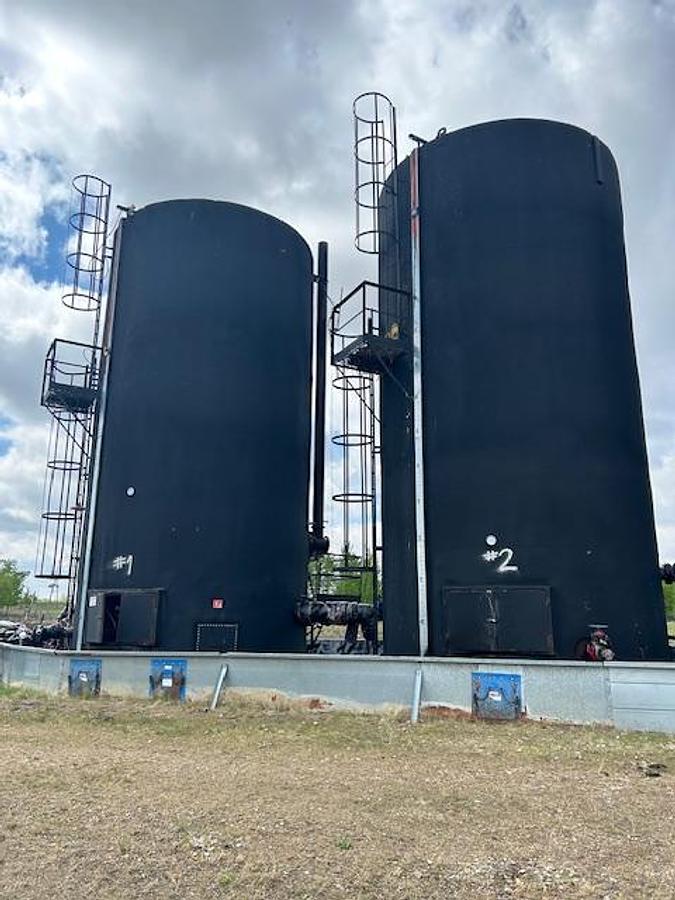

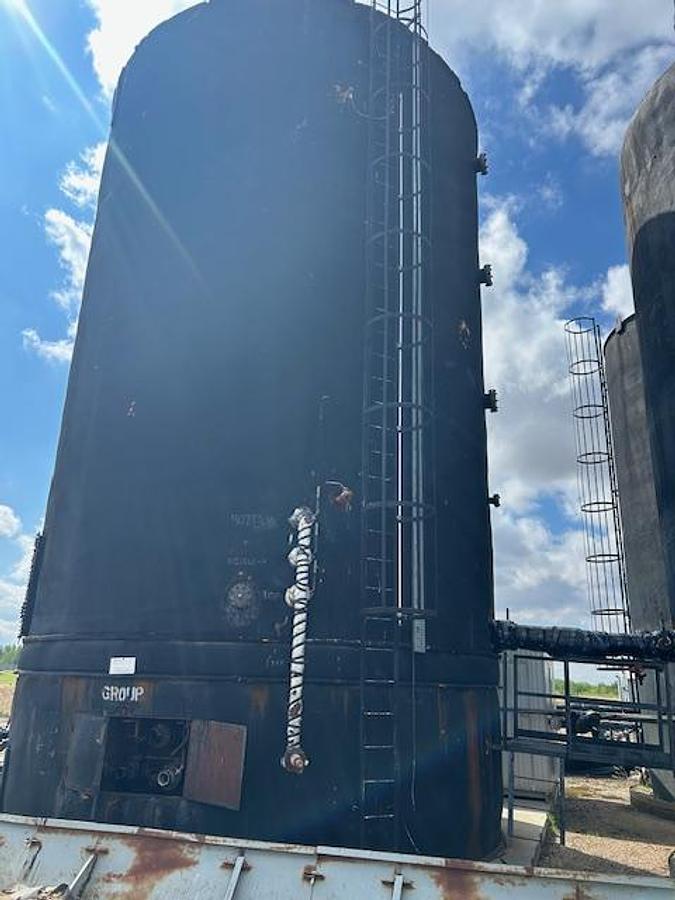

This used 2000 BBL Cone Bottom Tank from Universal Industries Ltd. is cleaned, disconnected, and ready for immediate loading. The tank boasts a capacity of 2000 barrels and features a single wall design with a diameter of 21 feet 3 inches and a height of 30 feet 3/16 inches. Engineered for practicality, it comes without a skid but provides proper stability with its form and construction. The tank's design pressure allows for up to 6 ounces, with urethane foam insulation complete with an elastomeric coating to protect against harsh conditions. Although the tank lacks a coating and heat tubes are not included, it does have provisions with two blinds for potential firetube installation. Functional accessories include a thief hatch and a level indicator for monitoring contents efficiently. This tank is ideal for industrial sectors requiring large-scale storage solutions.

Specifications

ManufacturerUniversal Industries Ltd.
Year2003
ConditionUsed
Serial Number03-07-11-12394
Stock Number16060
Capacity (bbl)2000
Wall - Single or DoubleSingle
Diameter21’ 3”
Height30’ 3/16”
Design Pressure6oz
SkidNone
InsulationUrethane Foam c/w Elastomeric Coating
Heat(2) blinds for 24” firetubes (tubes not included)
CoatingNil
Thief HatchYes
Level IndicatorYes
