24" 1415 PSI Sour 8 Tray Dehydrator - 16057

Sold

24" 1415 PSI Sour 8 Tray Dehydrator - 16057

Location:Redcliff Yard

Description

Year Built      2004

Diameter        24"

MAWP (kPa)      9756

MAWP (PSI)      1415

Number of Trays 8

Sour Service    Yes

Reboiler Duty (BTU/hr)  375,000

Flash Tank      Yes

Pump Style      Electric

Manufacturer    Alco

A#      516851

CRN#    R8686.2

Serial# 2004-7269-01

Location        09-36-081-19 W6M


Description

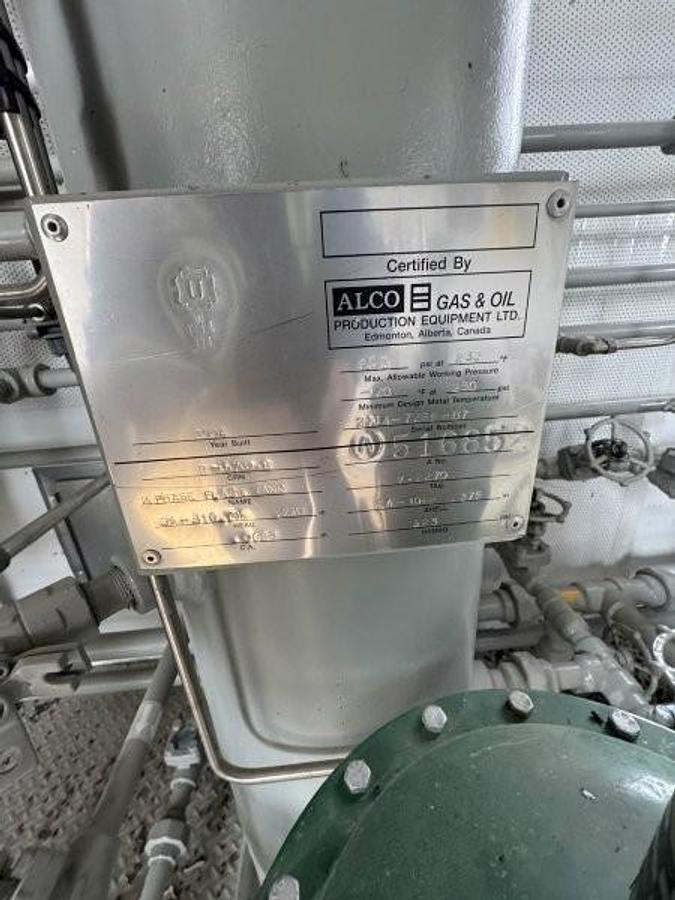

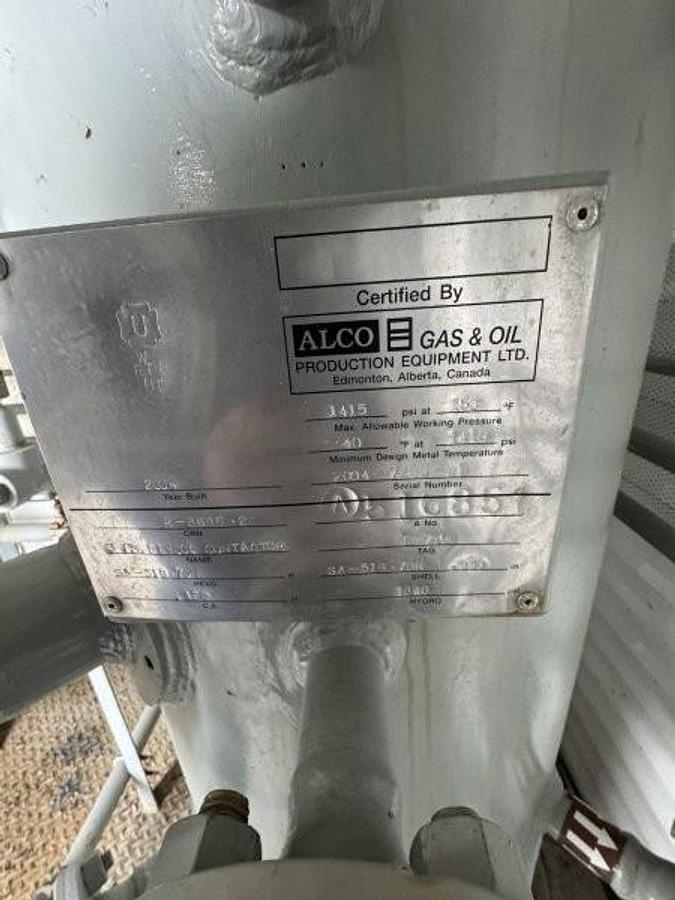

2004 Alco Sour Dehydrator

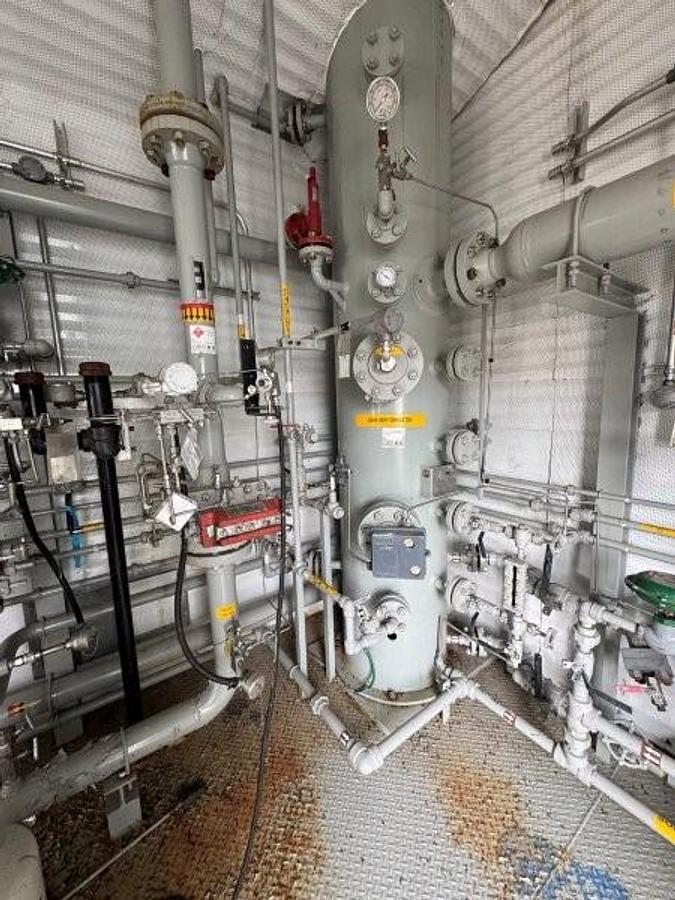

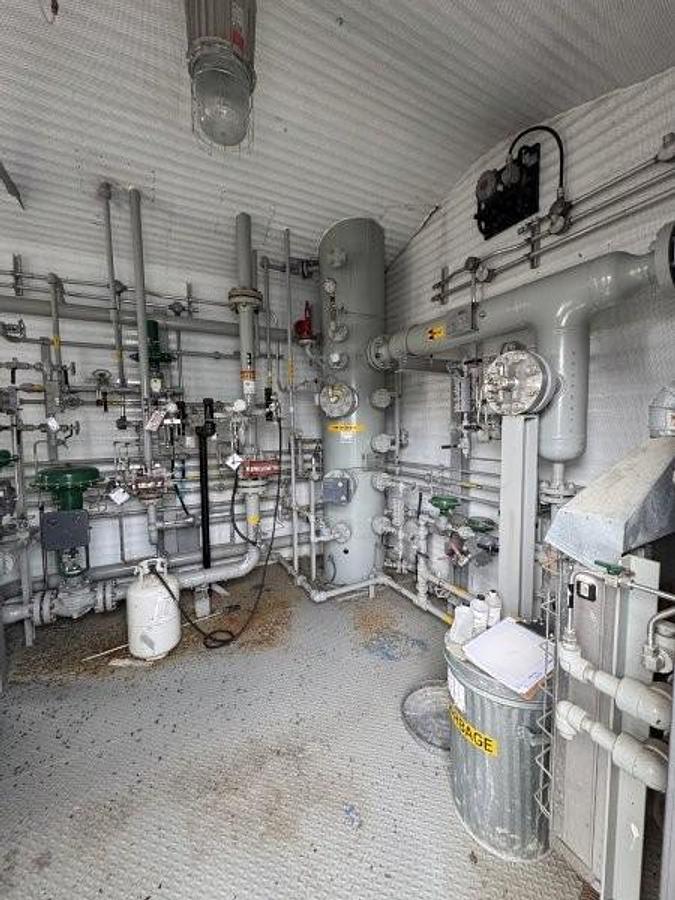

24" x 28' 8 tray 1415 psi Contactor

375,000.000 btu/hr Zirco Flame Arrested Burner

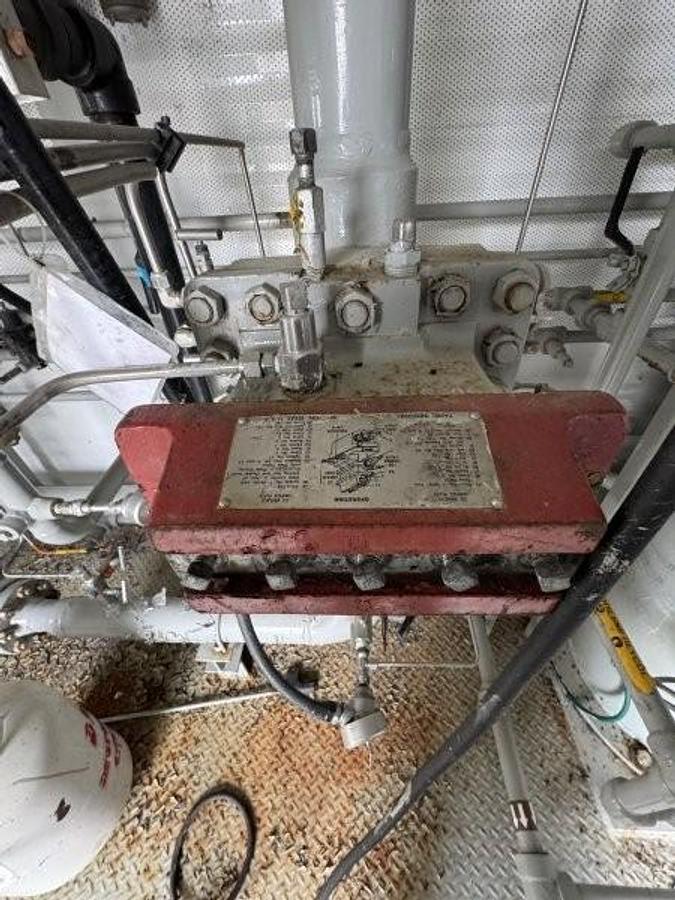

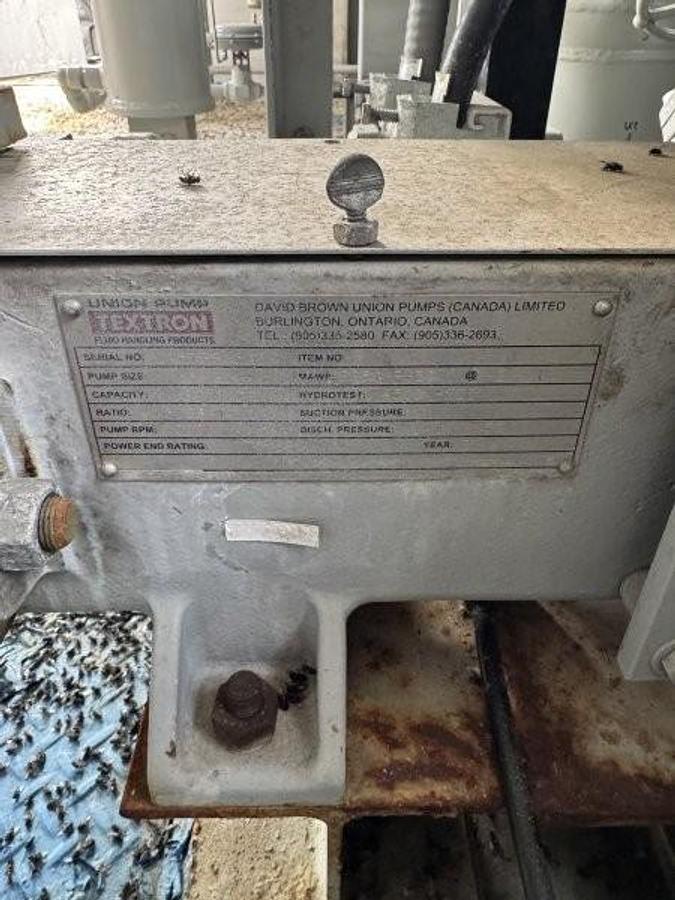

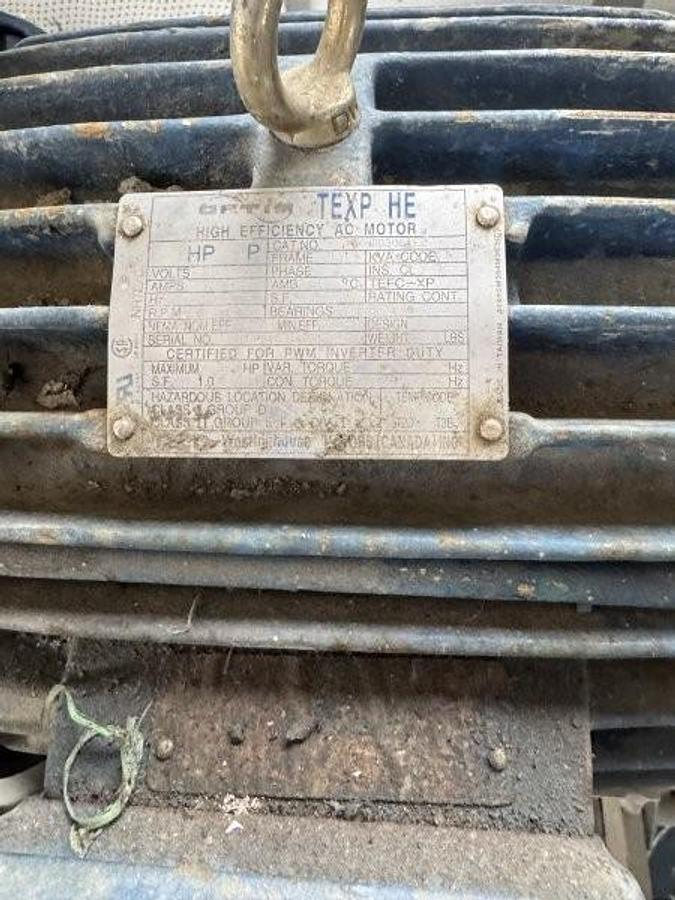

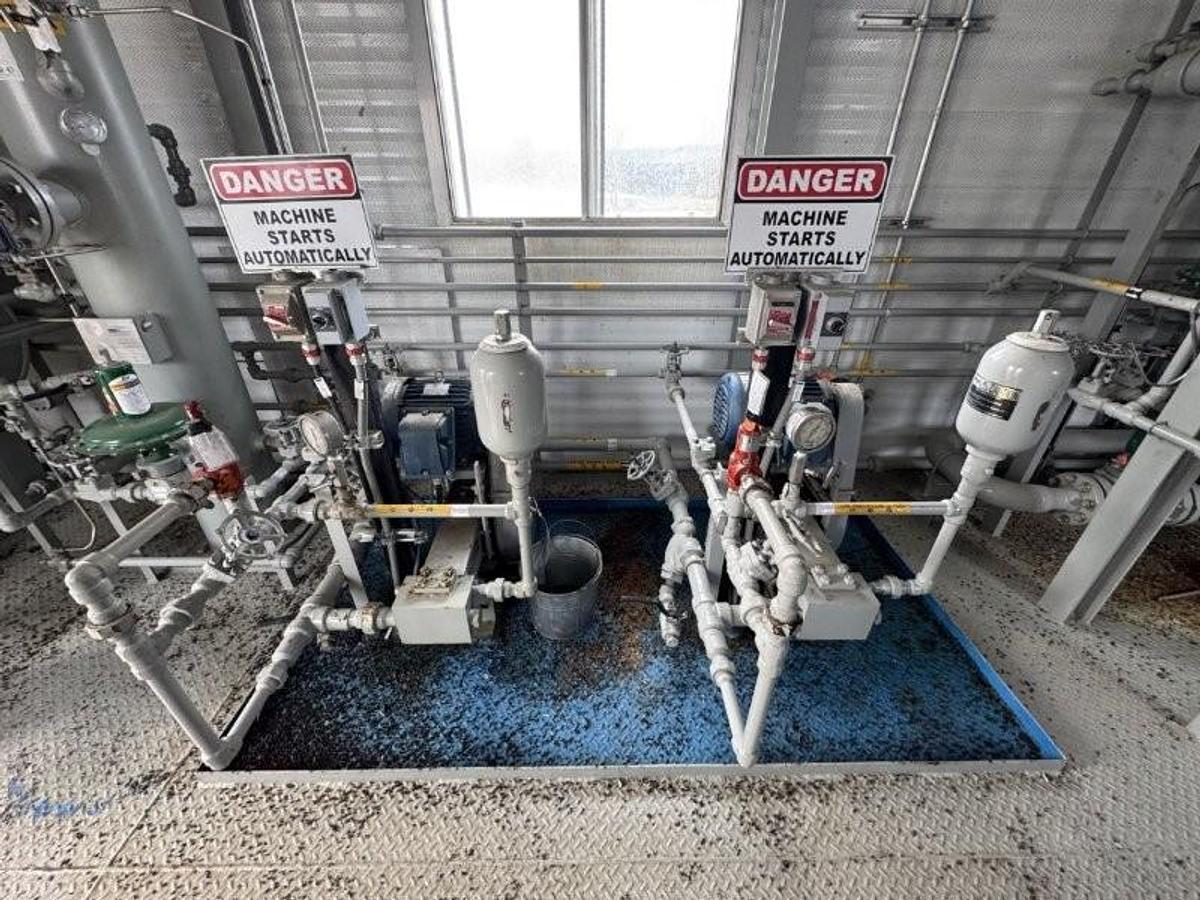

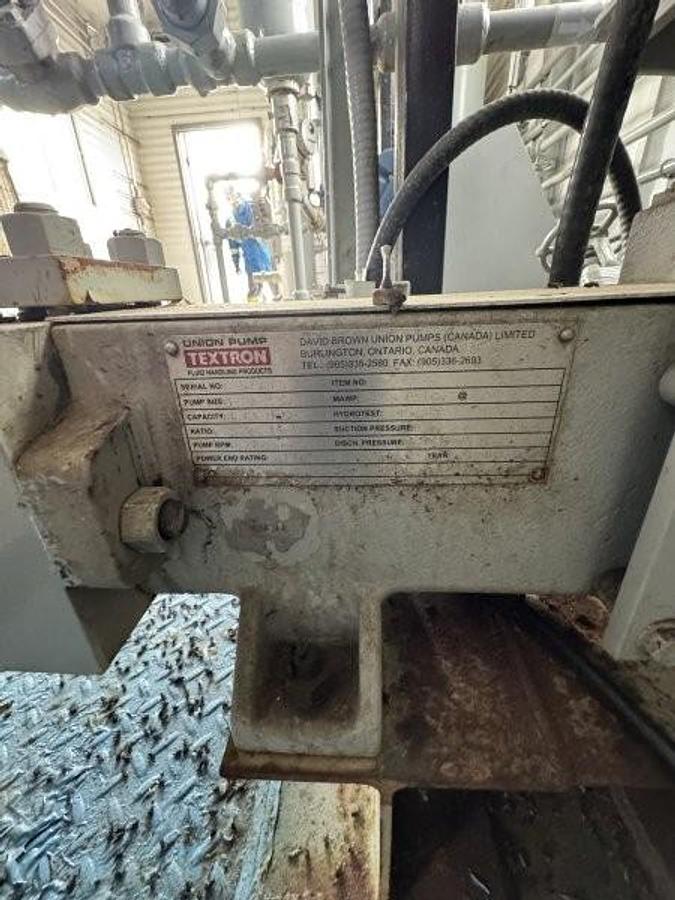

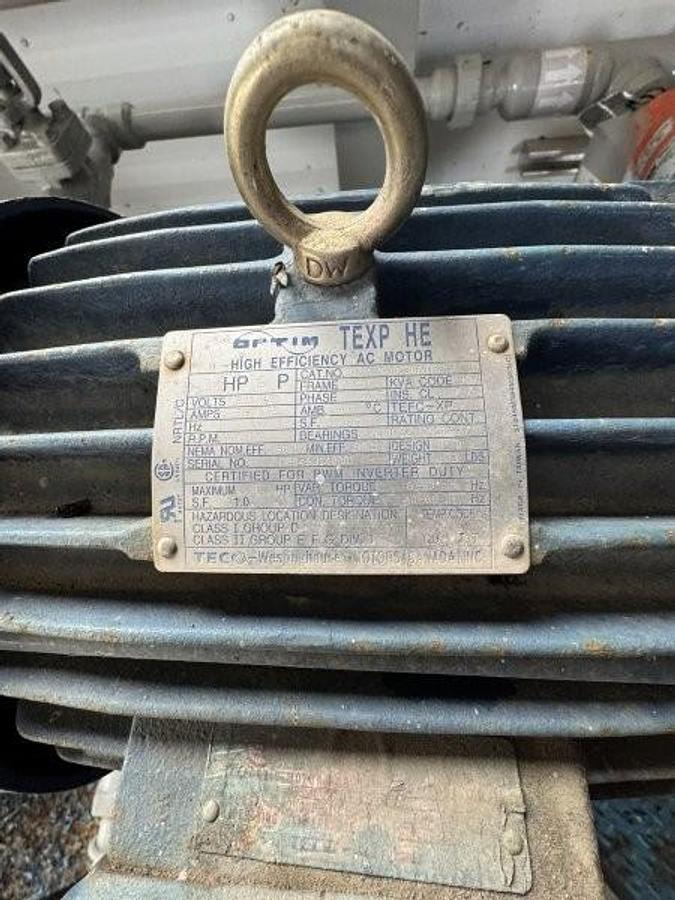

2 x 3 HP Union SX-3 Simplex Glycol Pumps 1.61 USGPM

4" 600 ANSI Sr Daniel Meter Run

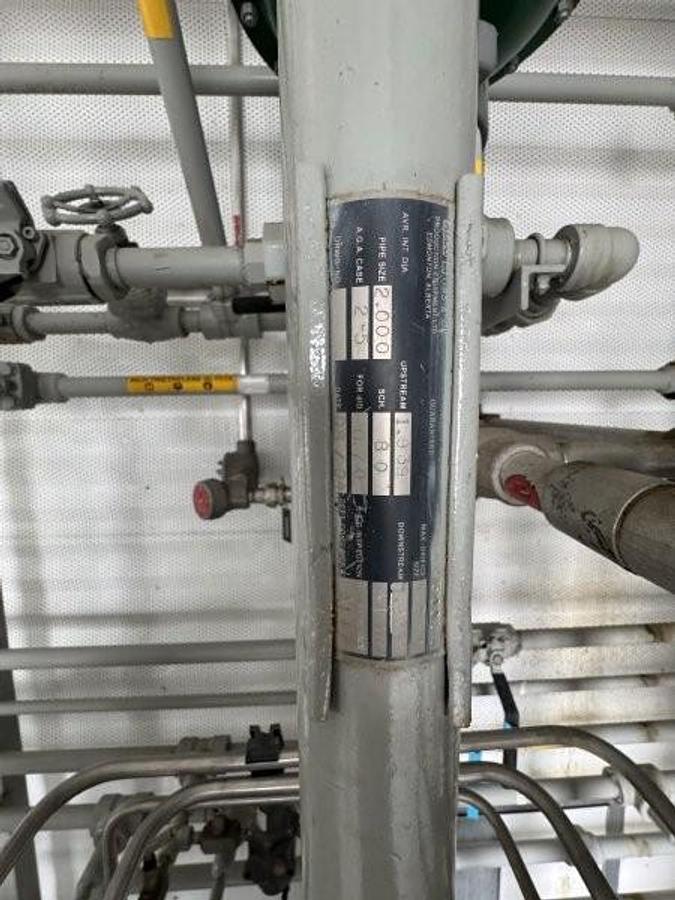

2" 600 ANSI Sr Daniel Fuel Gas Meter Run

2 x Rosemount Multi Variable Transmitter

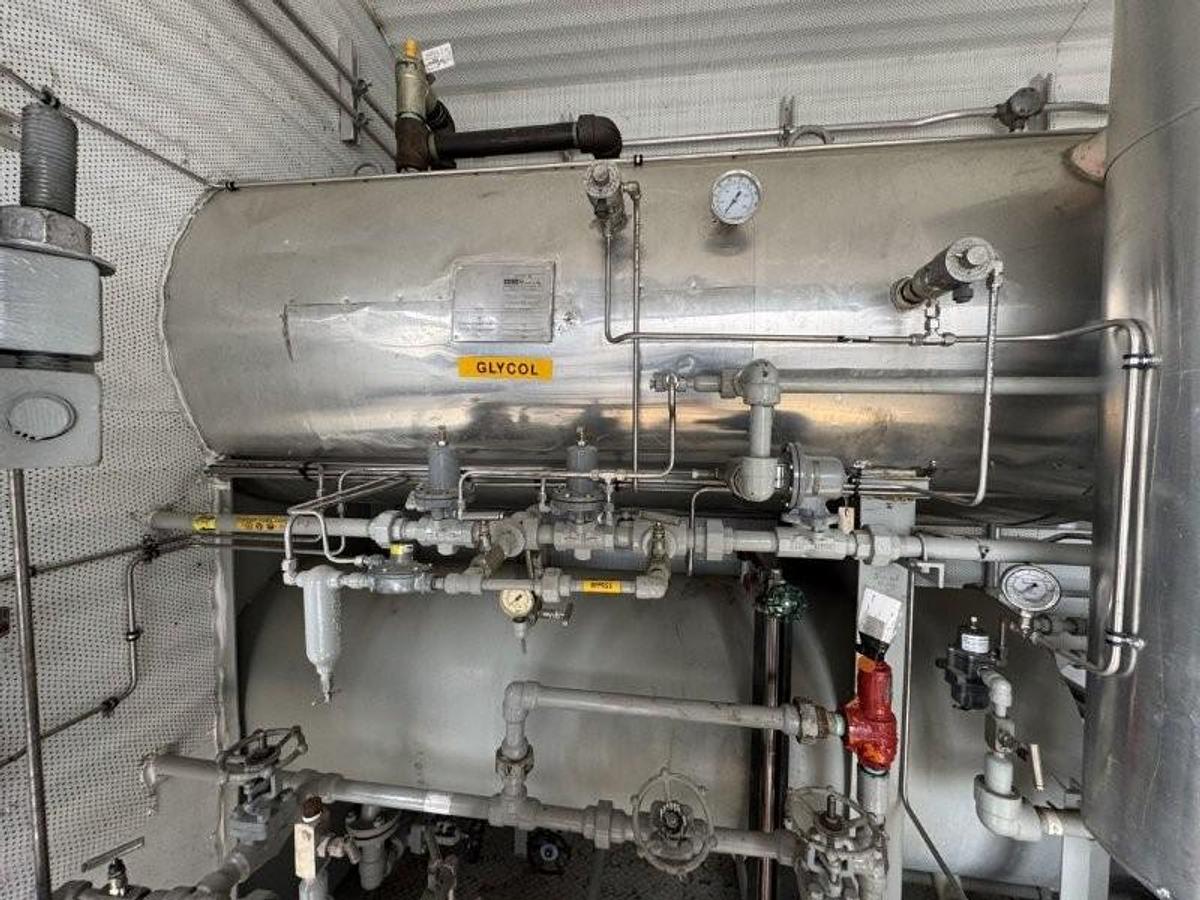

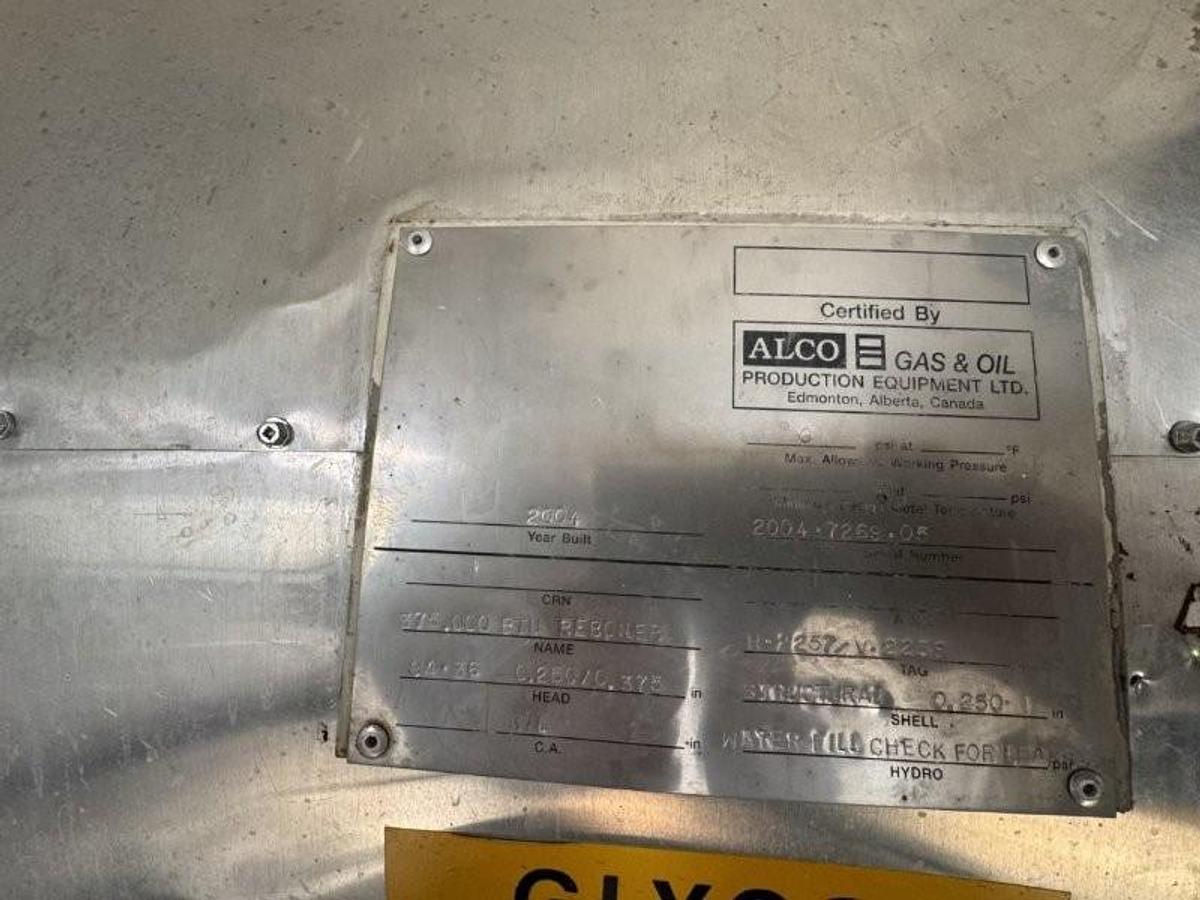

30" X 7'11" Reboiler with High Level Shutdown

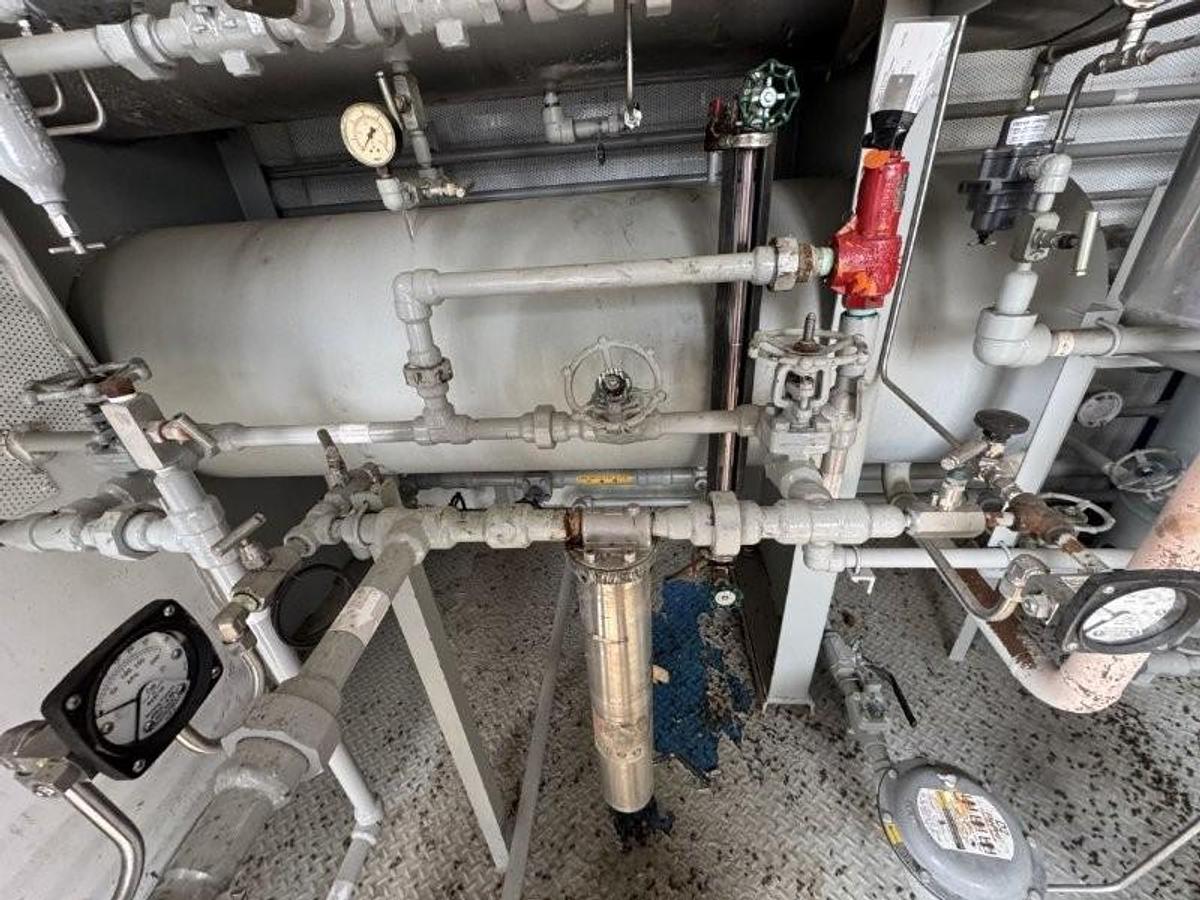

24" x 6' Surge Tank with Low Level Shutdown

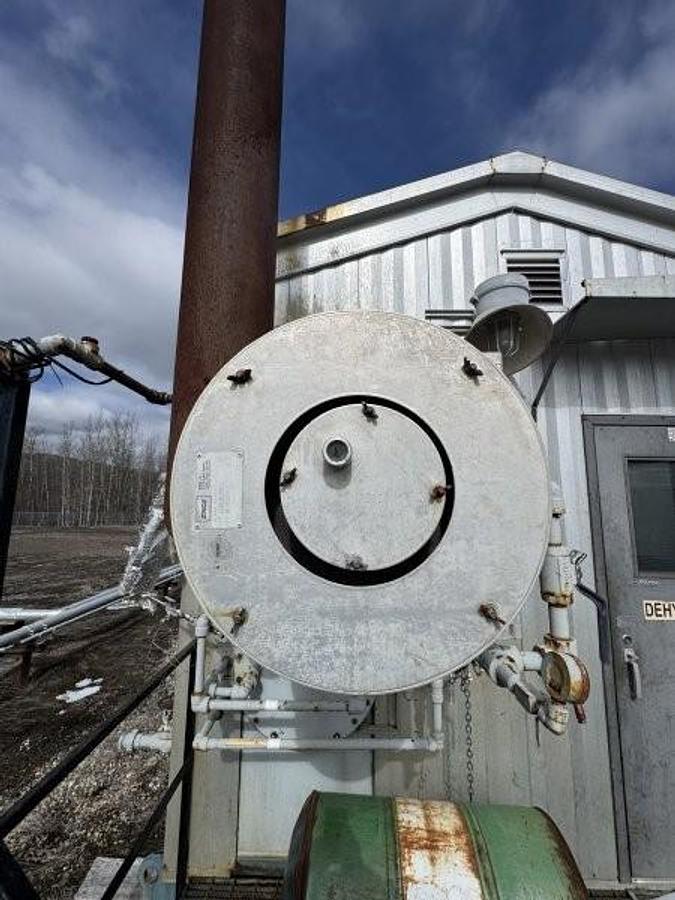

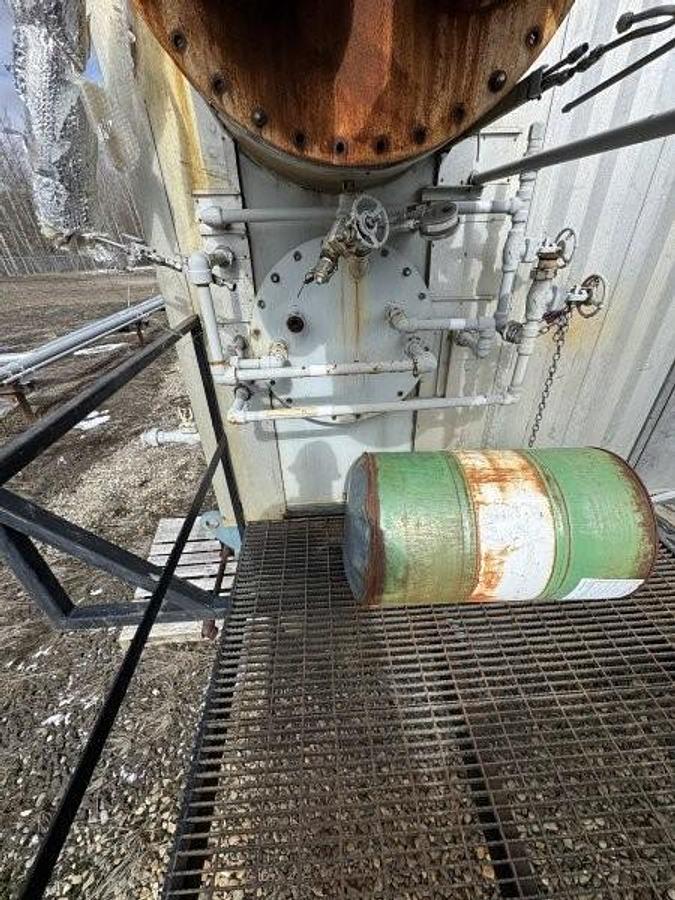

10 3/4" OD Firetube and Exhaust Stack

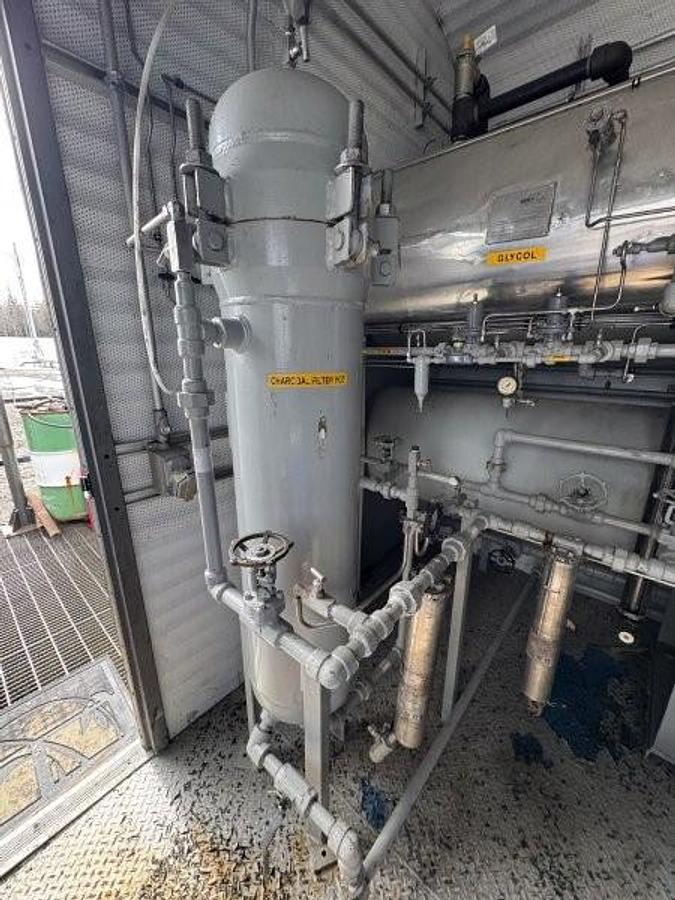

Charcoal Filter CRN# R9739.213 s/n JL2007-134

Particle Filter

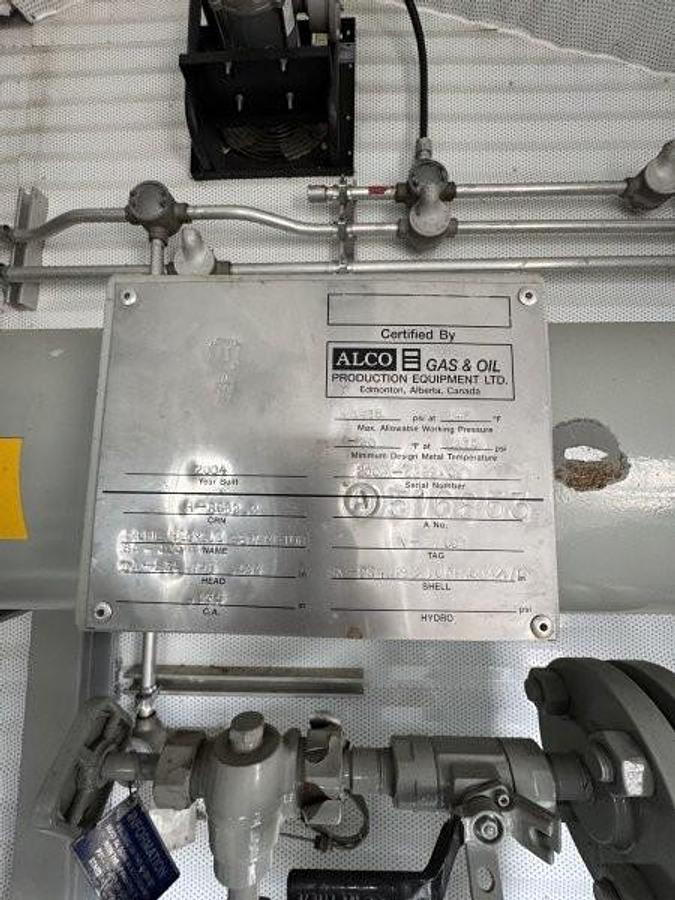

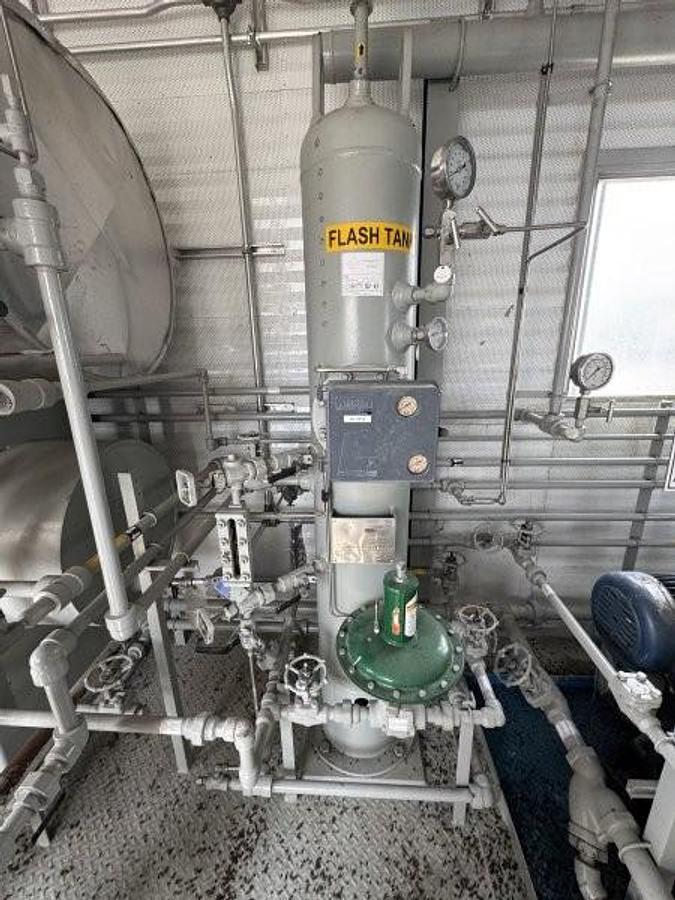

Glycol Flash Tank A# 516852 CRN# R8769.2 s/n 2004-7269,07

Inline Cyclone Separator A# 516853 CRN# R8682.2 s/n 2004-7269.09

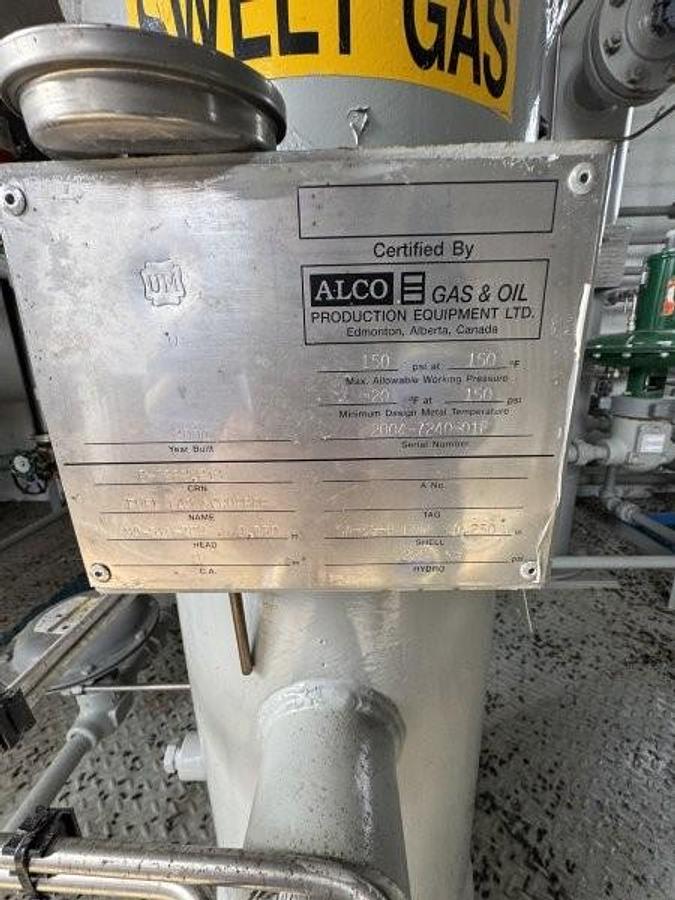

Fuel Gas Scrubber CRN# C-4262.213 s/n 2004-7240-01F

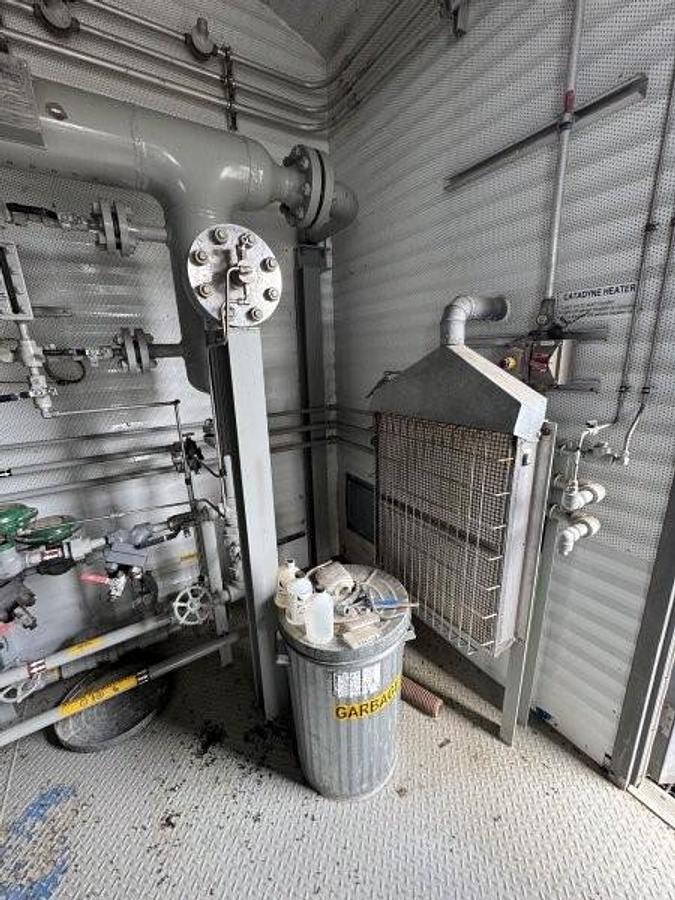

3 x 24" x 30" Catadyne Heater

Morgan Chemical injection Pump with Level Rate Gauge


Gas/Glycol Heat Exchanger

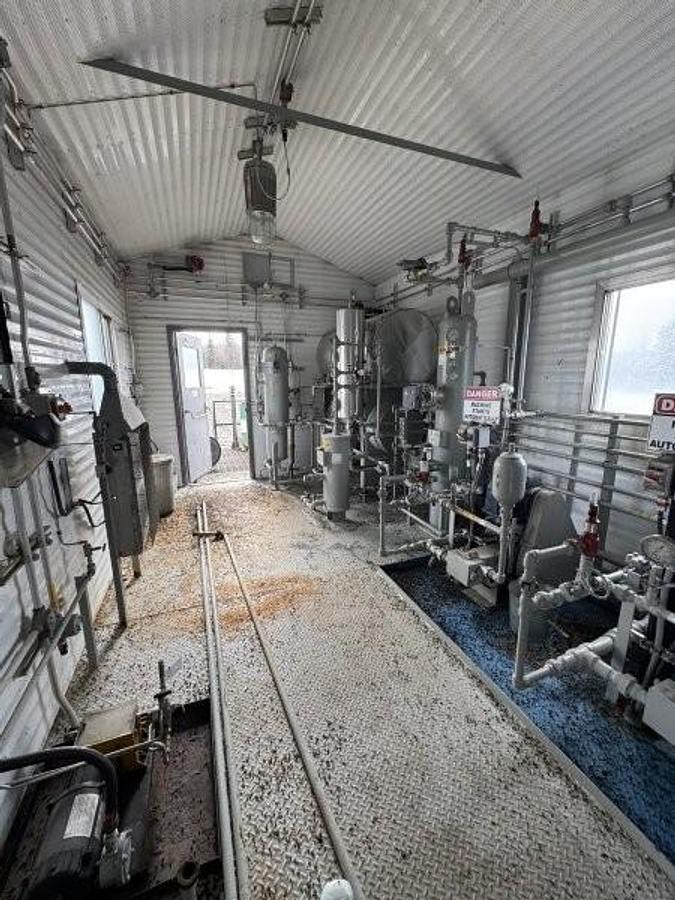

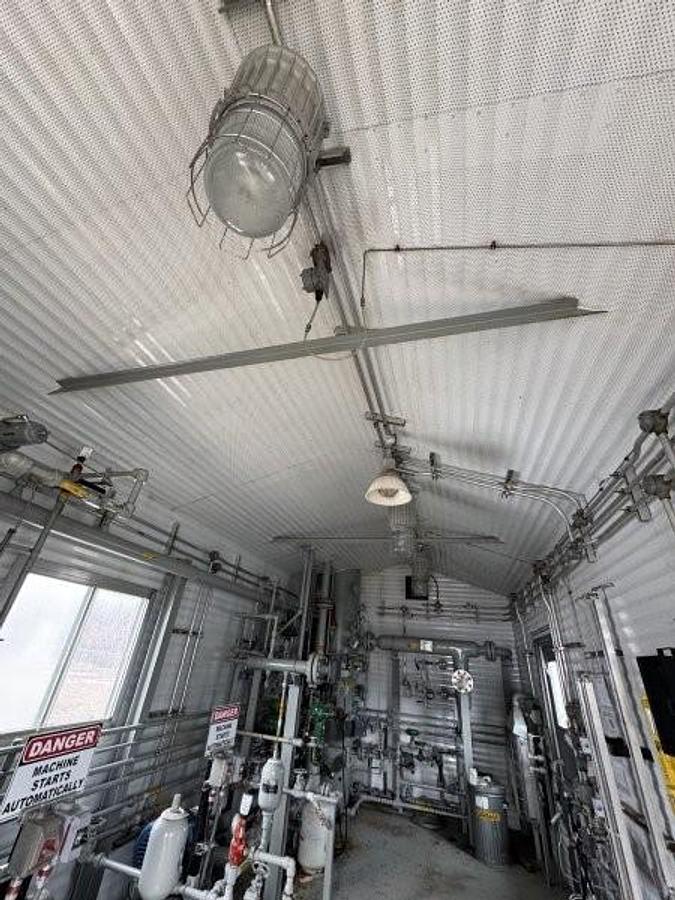

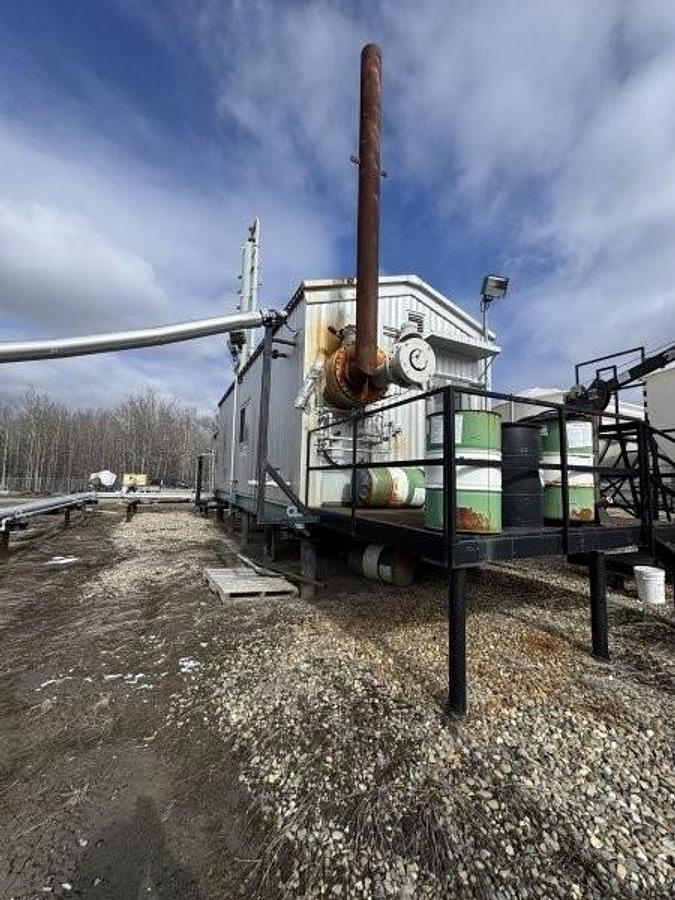

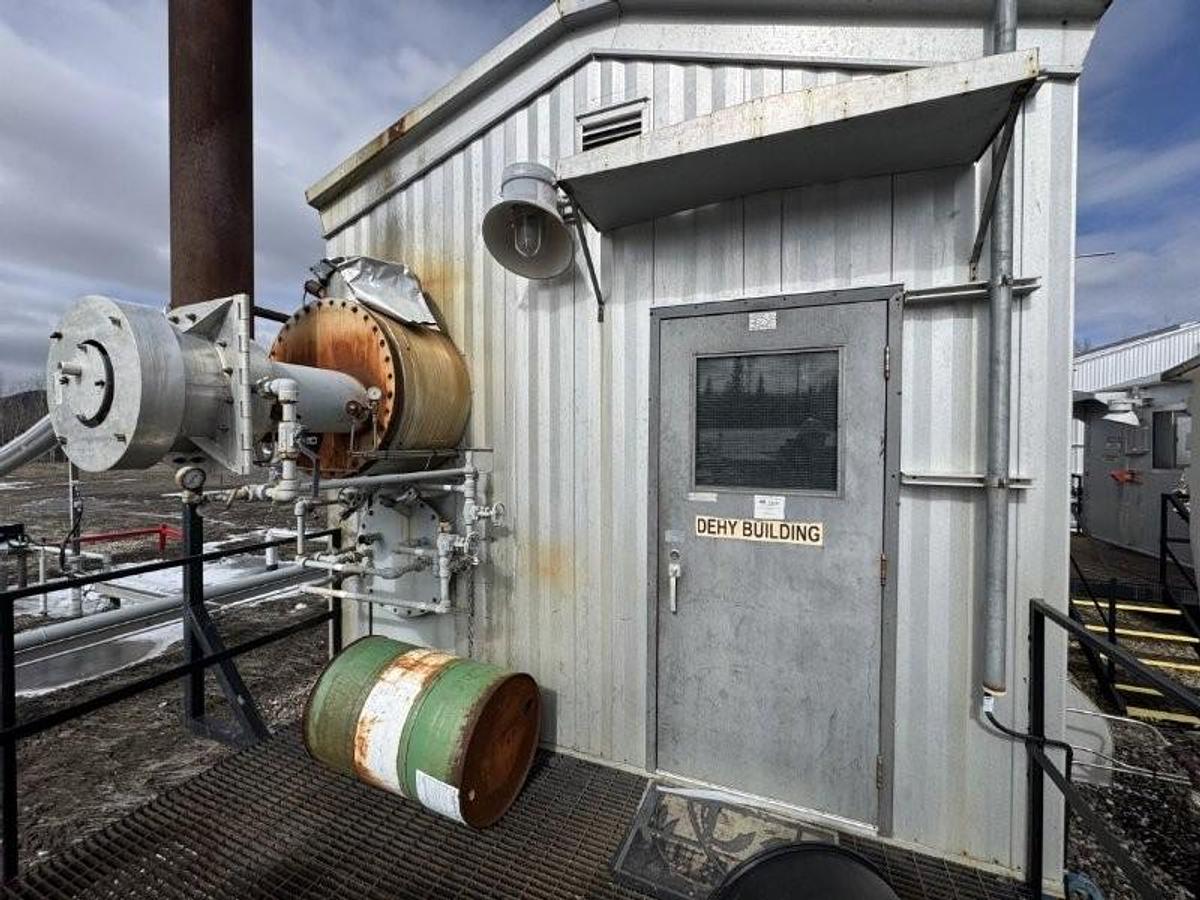

30' L x 11'6" W x 12' T building


30' L x 11'6" W Skid with 10" I beam (Welded to piles)


Show All

Specifications

ManufacturerAlco
Year2004
ConditionUsed
Serial Number2004-7269-01
Stock Number16057
Diameter24"
Length28'
Design Pressure1415 PSI
ServiceSour
# Trays8
Reboiler Rating375,000 BTU/Hr.
A#516851
CRN#R8686.2
Inlet4" 600 ANSI RF
Outlet4" 600 ANSI RF

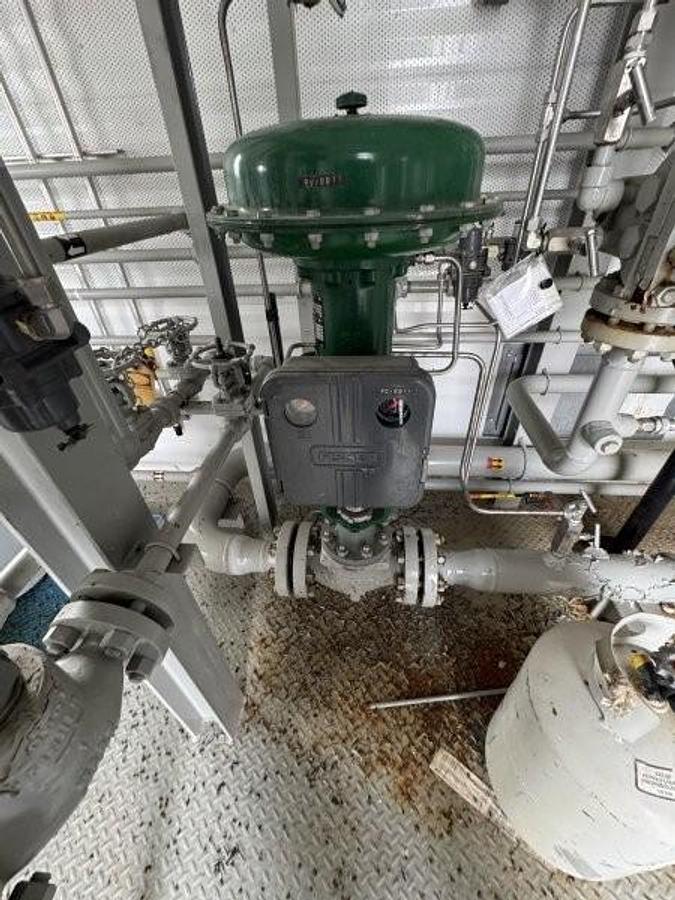

Sales Gas4" 600 ANSI Senior Meter Run w/3" 600 ANSI Fisher 667-45 "ET" Body & 4150 Pressure Controller
H2O DetailsFisher 1" NPT D2

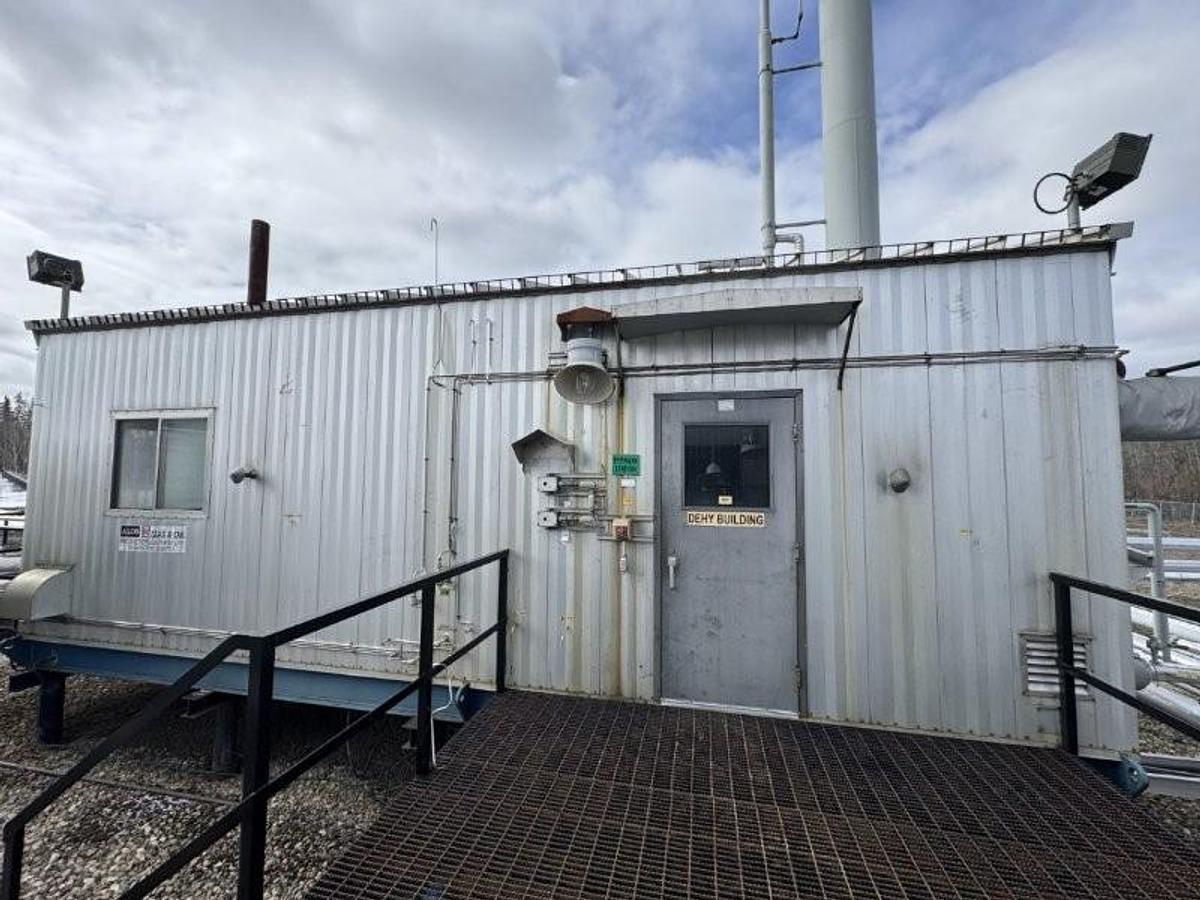

Building12' W x 30' Long x 10'6" High Self Framing Gable Roof Building
Skid12' W x 30' Long Structural Steel Skid w/checker plate floor
