24" 720 PSI Vertical AB Sour Separator 8 Well Header Package - 16040

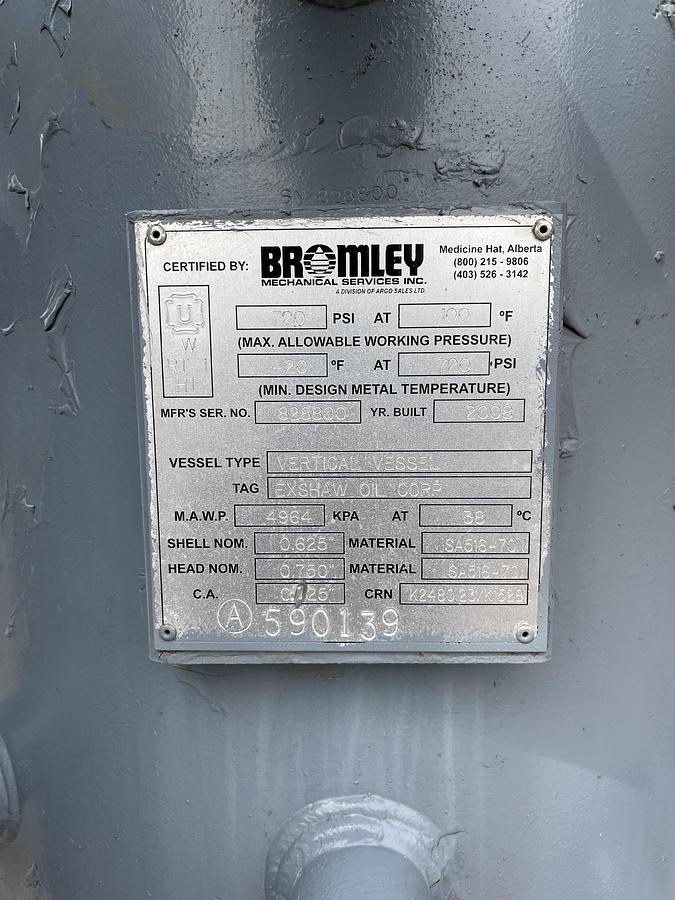

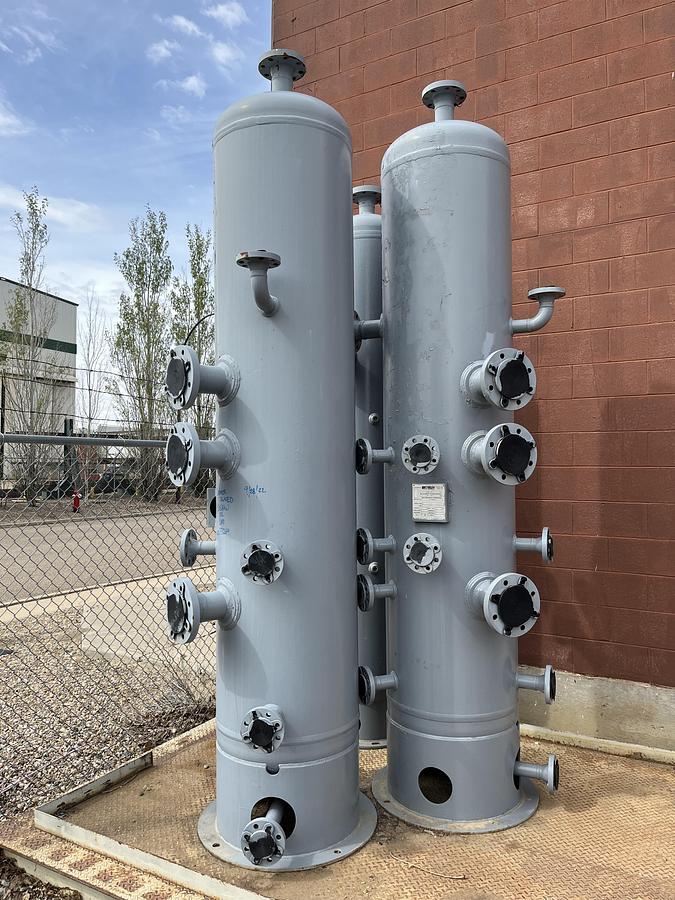

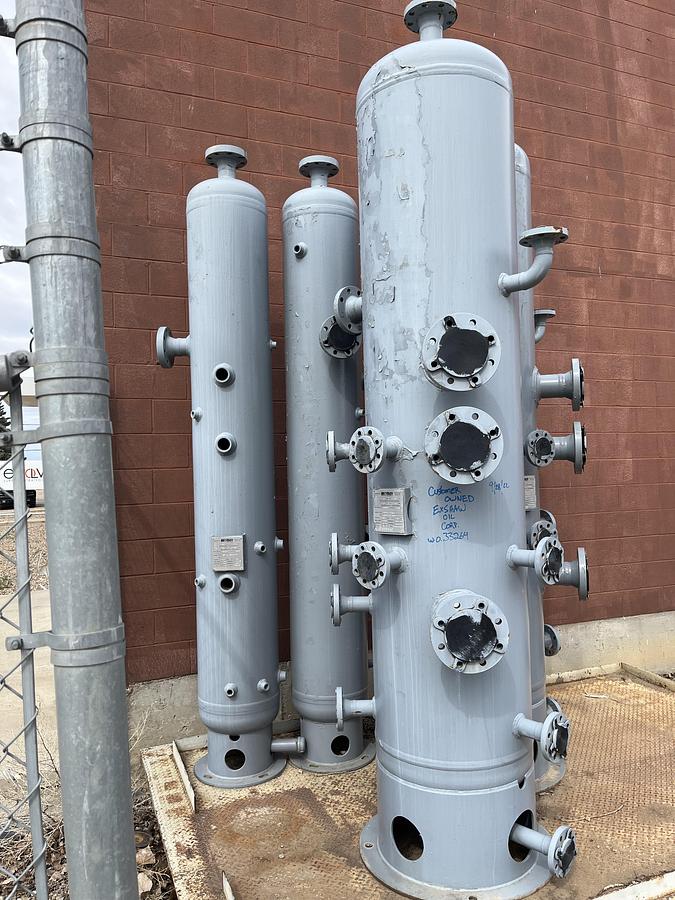

V-1000 - 24" x 8' Vertical 3 Phase (dressed 2) SOUR Test Separator w/3" 300# ANSI RF Inlet /Gas Outlet, 2" NPT PSV, TI & PI

LSH 1000 - 2" NPT Pneumatic Level Switch

LSHH 1000 - 2" NPT Electric Level Switch

PSHH 1000 - High Pressure Pilot with Manual Latch & Pilot Valve

ESDV 1000 - 2" 300# ANSI Actuated Fail Close Ball Valve

ESDV 1001 - 2" 300# ANSI Actuated Fail Open Ball Valve

LC 1000 - 2" NPT Snap Acting Level Controller

LCV 1000 - 2" NPT Level Control Valve, Y-Strainer & Reflex Level Gauge with Isolation Valves

FE/FQIT 1002 - 2" EZ-In Turbine Meter with MC-III Totalizer, Welker Threaded Quill & (3) 2" Ball Valves for Prover Loop

FE 1000 - 2" 300# ANSI Dual Chamber Orifice Meter with Pin Flow Conditioner & Welker Threaded Quill

BPCV 1000 - 2" 300# ANSI Sur-Flo Actuated Valve with Expansion Bottle

Instrument Air Header - (4) Pressure Reducing Instrument Air Regulators

BH1010 - Ruffneck Electric Heater

4 Well Oil Header

(4) 2" 300# ANSI RF Inlets, (4) 2" Weld Tees, (8) 2" 300# ANSI RP Ball Valves, (4) 2" Weld Elbows, (4) 2" Weld Tees with 1" NPT Drain Valve into 2" Test Separator Header, (4) 3" x 2" Conc. Reducers, (4) 3" Weld Tees into 3" Oil Group Outlet Header

4 Well Gas Header

(4) 2" 300# ANSI RF Inlets, (4) 2" Weld Tees, (8) 2" 300# ANSI RP Ball Valves, (4) 2" Weld Elbows, (4) 2" Weld Tees with 1" NPT Drain Valve into FC/FE 1001 2" Flow Conditioner/Wafer Gas Turbine Meter, (4) 3" x 2" Conc. Reducers, (4) 3" Weld Tees into 3" Gas Group Outlet Header

12' x 20' Skidded Building
