400 BBL Double Wall L-Skidded, EnviroVaullt Heated, Insulated & Internally Coated Tank - 16036
400 BBL Double Wall L-Skidded, EnviroVaullt Heated, Insulated & Internally Coated Tank - 16036
Location:Alberta, Canada
or
Call 587-779-6921
Description

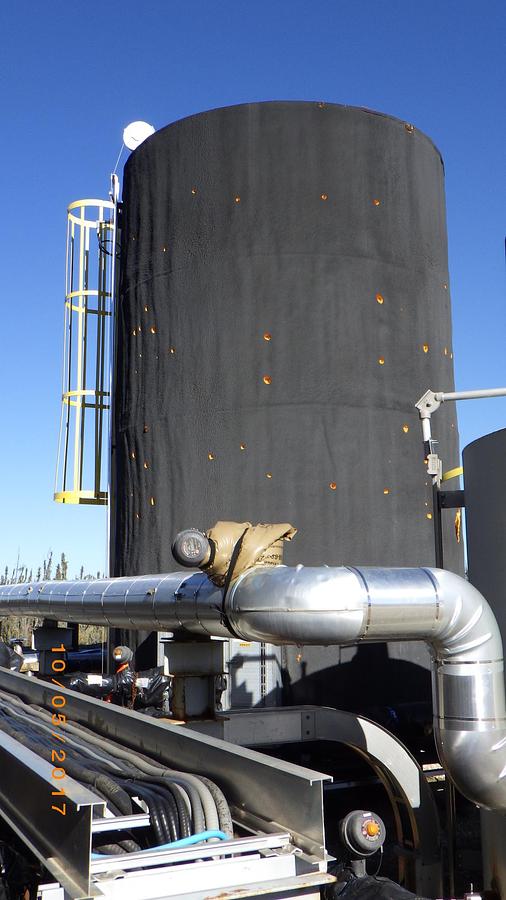

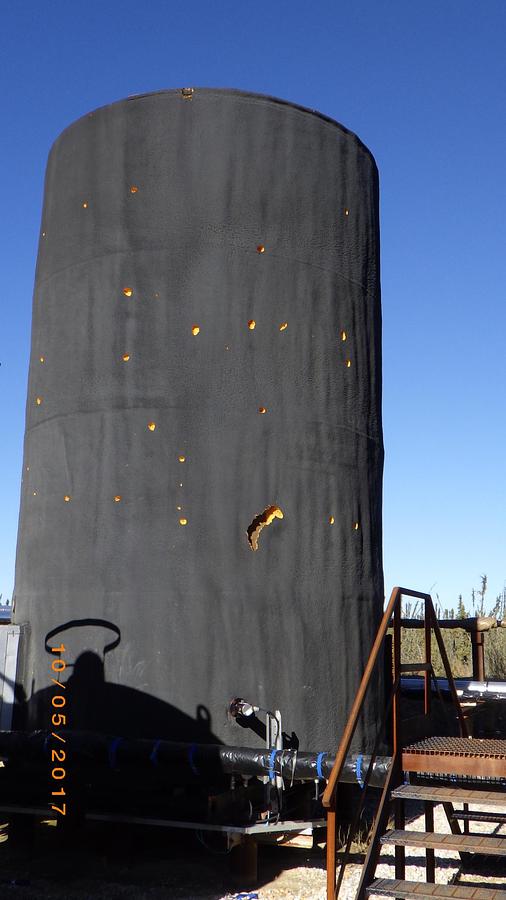

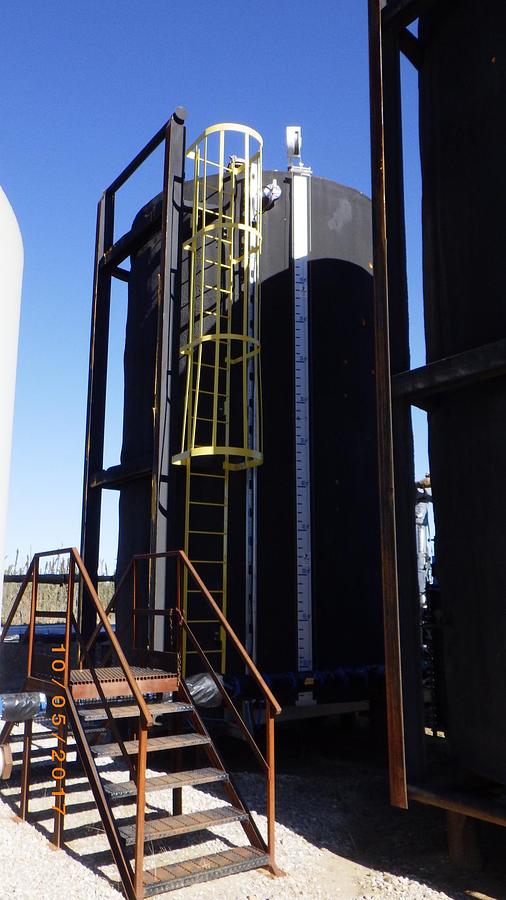

Field Run Bilton Welding & Manufacturing 400 BBL Double Wall L-Skidded tank. The tank measures 12 feet in diameter and stands 20 feet high.
The tank is insulated with spray foam and includes an EnviroVault heating system, featuring a Catadyne heater. It includes an 8-inch standard thief hatch and a sealed level indicator with a L-skid design. .
Specifications

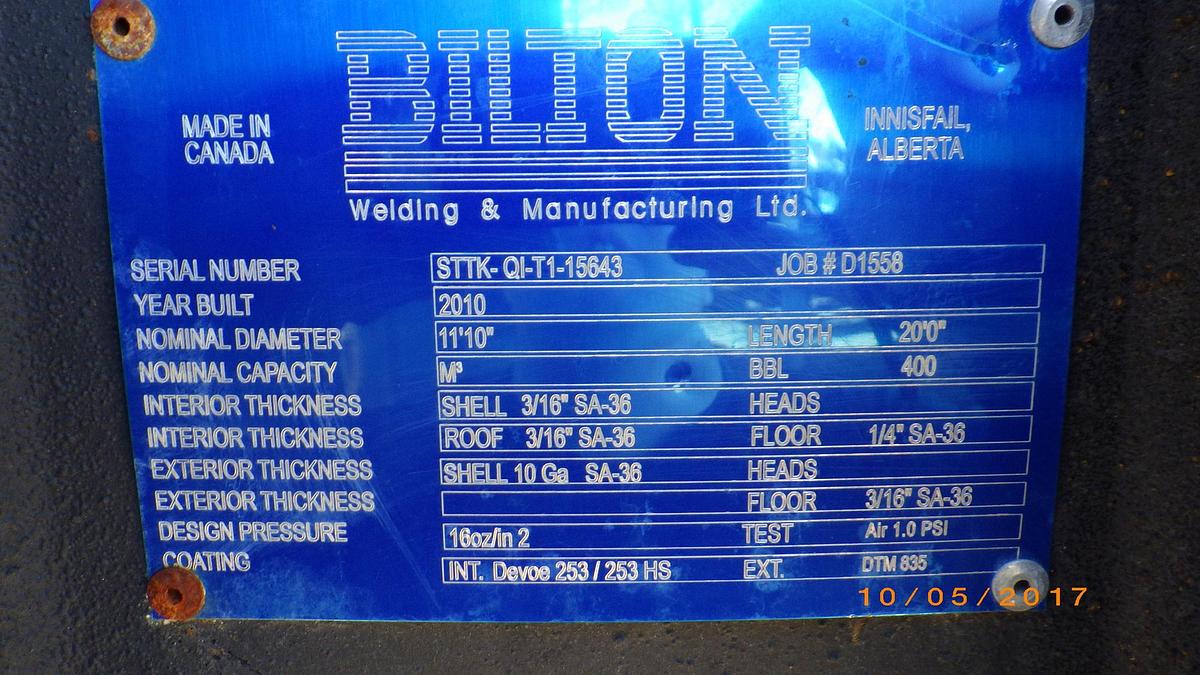

| Manufacturer | Bilton Welding & Manufacturing |
| Year | 2010 |
| Condition | Used |
| Serial Number | STTK-Q1-T1-15643 |
| Stock Number | 16036 |
| Capacity (bbl) | 400 |
| Wall - Single or Double | Double |
| Diameter | 12' |
| Height | 20' |
| Design Pressure | 16 oz. |

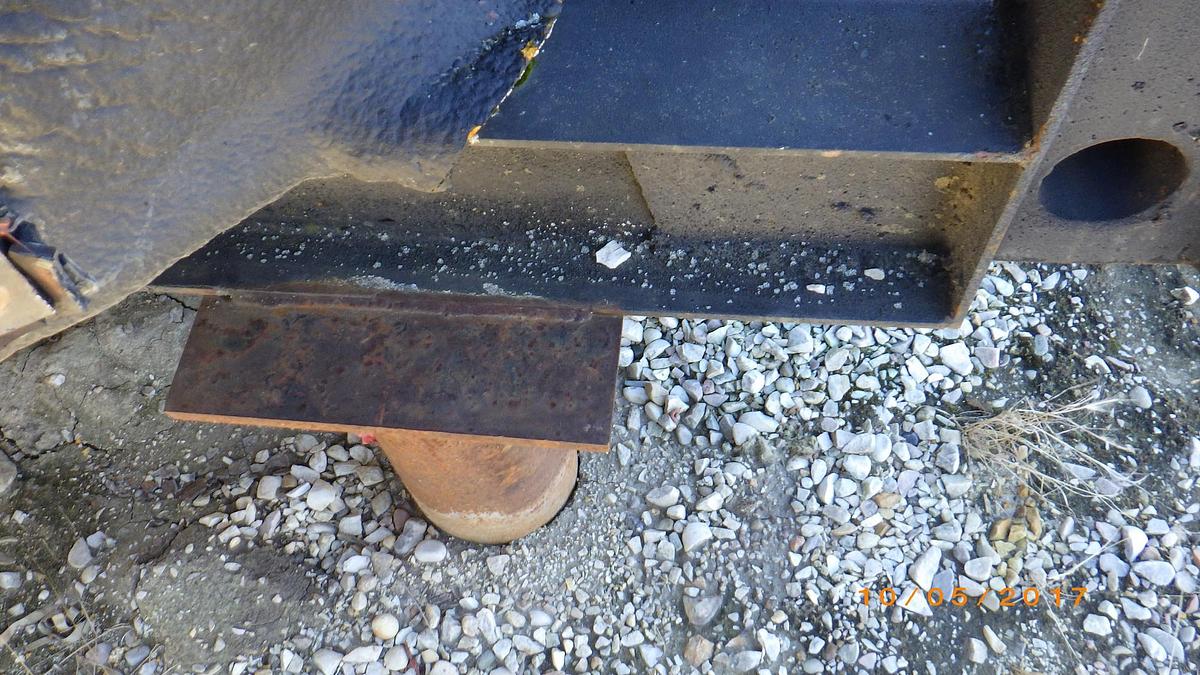

| Skid | L-Skid |
| Insulation | Spray Foam |
| Heat | EnviroVault c/w Catadyne Heater |
| Coating | Devoe 253 Internal Coating |
| Thief Hatch | 8" Standard |
| Level Indicator | Sealed Level Indicator |
