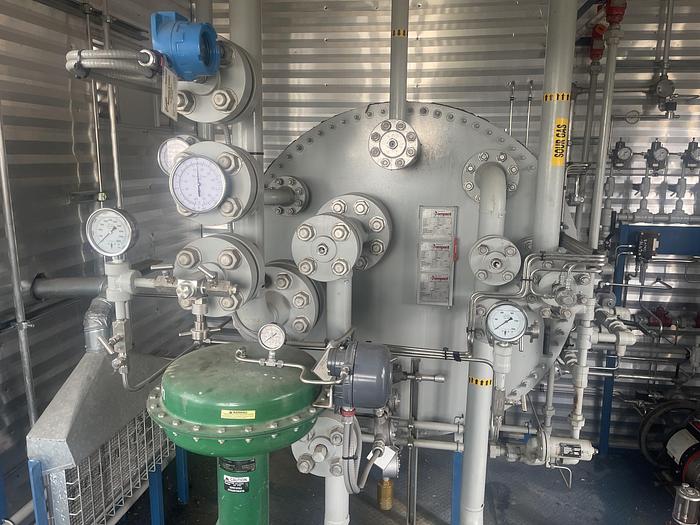

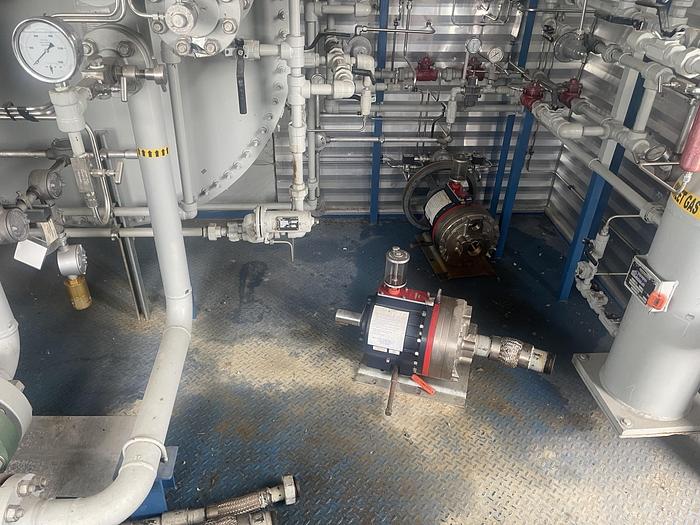

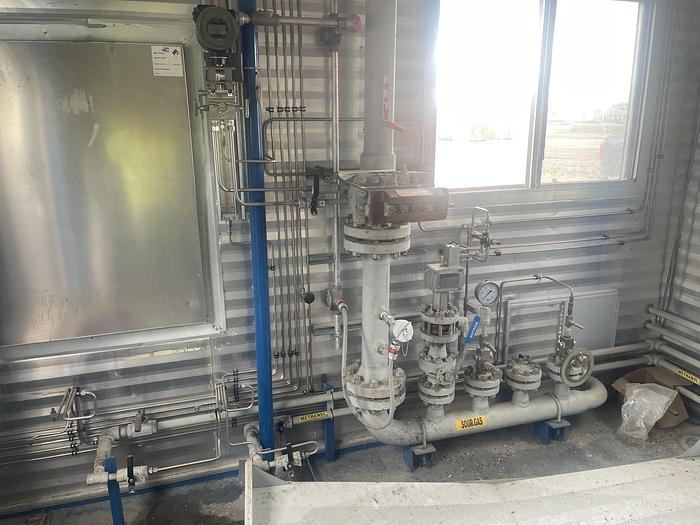

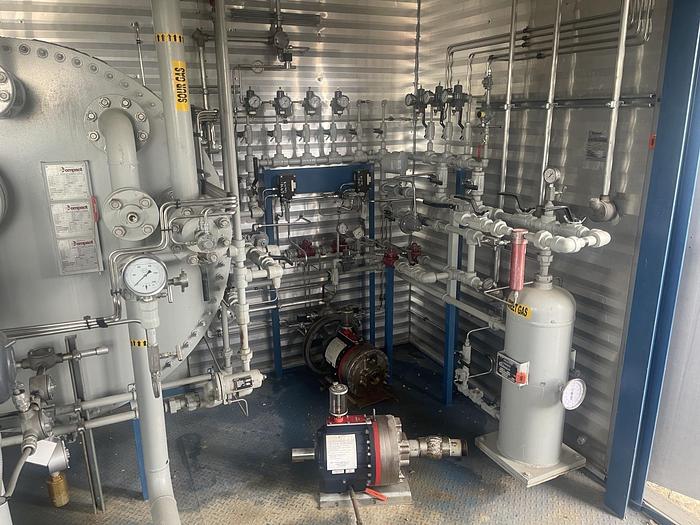

Line heater 2,000,000 BTU/Hr. - 15851

Line heater 2,000,000 BTU/Hr. - 15851

Location:Grande Prairie, Canada

or
Call 587-779-6921

Description

Fisher Actuated Angle Body Choke between Preheat & Reheat Coils

2" 600# ANSI 1350 PSI 10 Pass Distillate Coil w/1/8" corrosion allowance, 100% x-ray & PWHT

3" 600 ANSI Daniel Senior Orifice Chamber/Meter Run

Show All

Specifications

ManufacturerCompact
Year2004
ConditionUsed
Serial Number04-7022
Stock Number15851
Rating (BTU/Hr)2,000,000

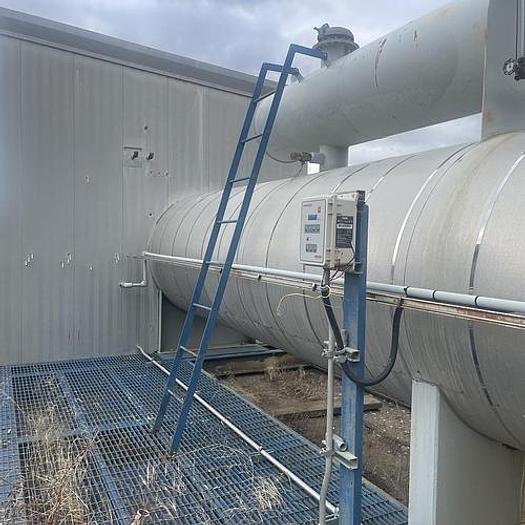

Diameter54"
Length20'
Preheat Coil3" 2500# ANSI 5000 PSI 10 Pass, 1/8" corrosion allowance, 100% x-ray & PWHT
Reheat Coil3" 600# ANSI 1350 PSI 6 Pass, 1/8" corrosion allowance, 100% x-ray & PWHT
InsulationYes

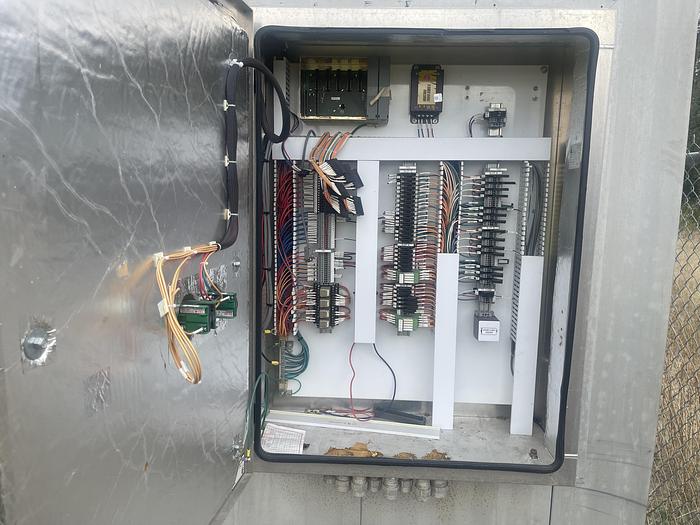

BMSProfire PF2100 BMS
A#504382
CRN#P7867.21
BuildingApproximately 10' W x 15' L Self Framing Metal Building with Double Doors
SkidApproximately 10' W x 30' L Structural Steel Skid
