400 BBL Heated, Internally Coated, and Insulated Tank - 15845

400 BBL Heated, Internally Coated, and Insulated Tank - 15845

Location:Redcliff Yard

Description

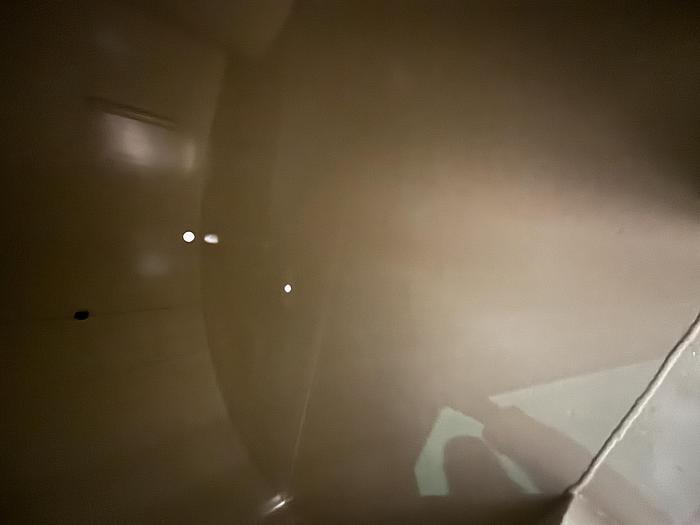

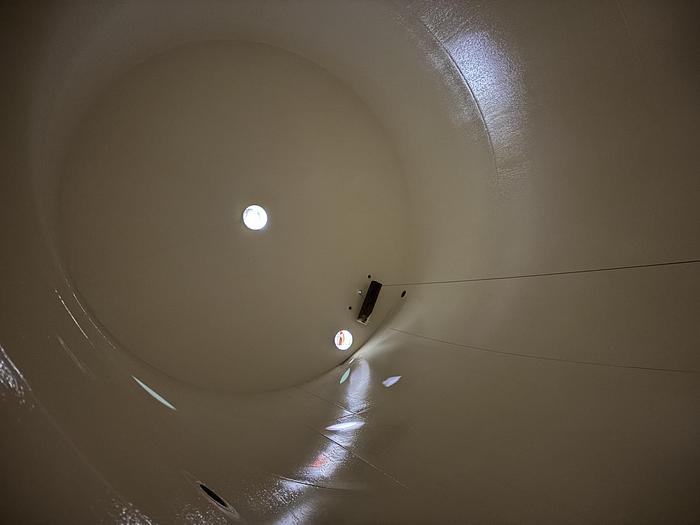

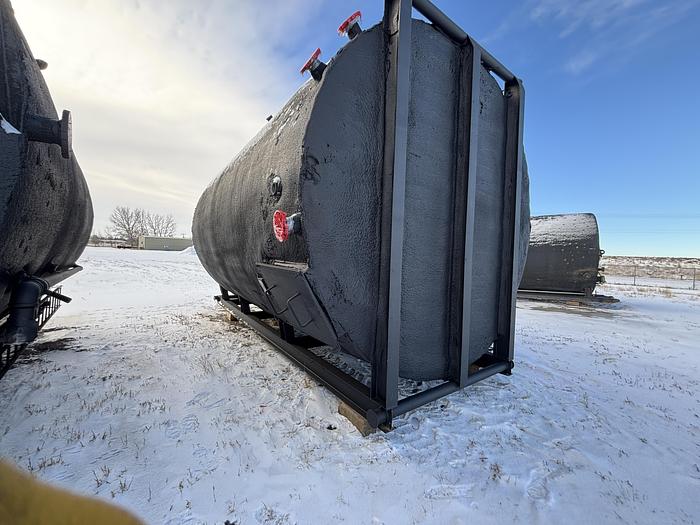

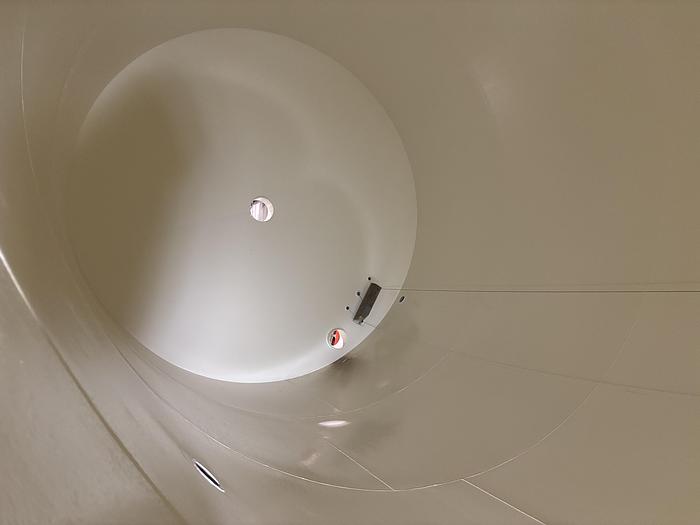

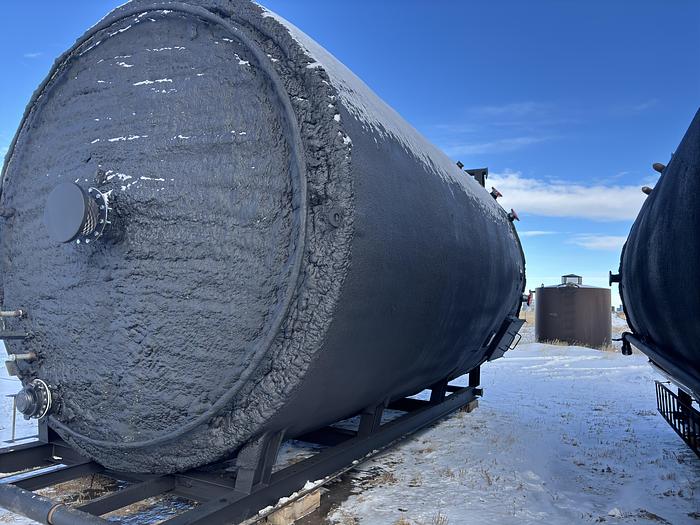

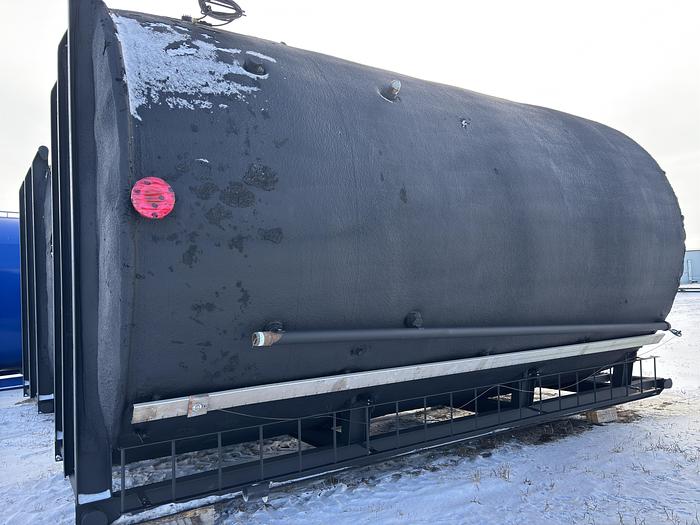

This refurbished 400 BBL tank offered by GLM Industries LP features a new Clovaline 83295 internal coating and has been insulated with urethane foam and a new black elastomeric coating. Designed with a single wall, this tank stands at 20 feet high with a diameter of 12 feet. It’s equipped to handle atmospheric pressure and comes built on an L-Skid for easy transport and stability. The tank includes an EnviroVault system equipped with a Catadyne heater, running on 120V with dimensions of 12 x 24 inches, ensuring optimal temperature control, especially in colder environments. The insulation has been fully repaired and the tank has undergone thorough shop testing for quality assurance. Additional features include a thief hatch and a level indicator, contributing to efficient operations and monitoring. With its robust internal and external enhancements, this refurbished tank provides reliability and efficiency, making it a suitable choice for industrial and storage needs.

Specifications

ManufacturerGLM Industries LP
Year2003
ConditionRefurbished

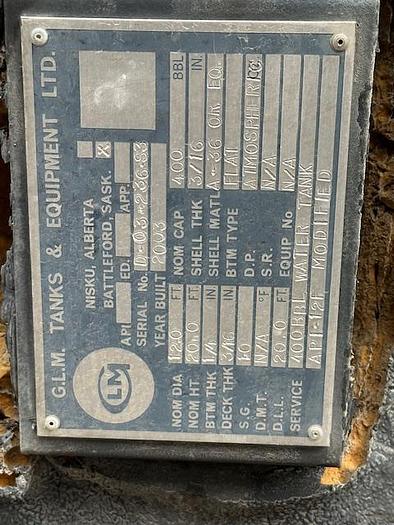

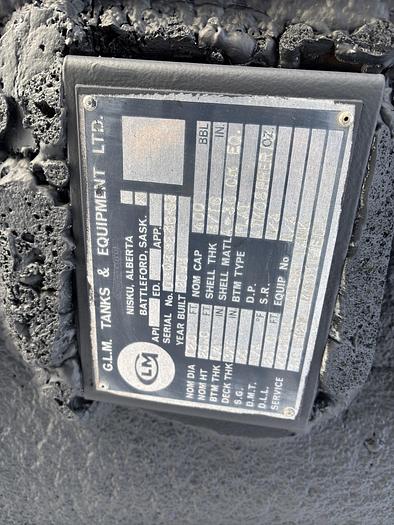

Serial NumberD-03-236-S3
Stock Number15845
Capacity (bbl)400
Wall - Single or DoubleSingle
Diameter12'
Height20'
Design PressureATM
SkidL-Skid
InsulationUrethane Foam c/w Elastomeric Coating
HeatEnviroVault c/w Catadyne Heater
CoatingDevoe 253 - NEW
Thief HatchYes
Level IndicatorYes
