30" 1440 PSI Vertical Sour Separator Package w/Integral 400 BBL Tank - 15718

Package Highlights

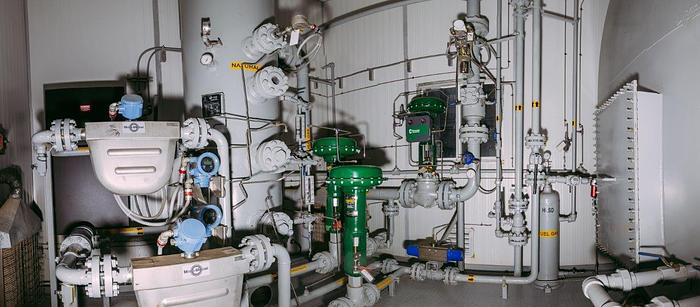

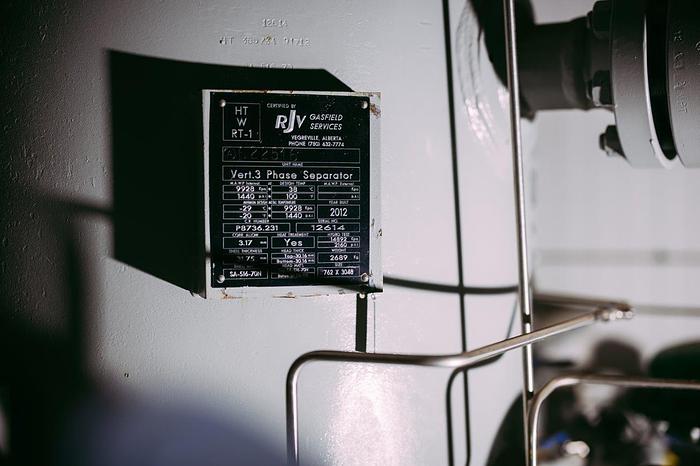

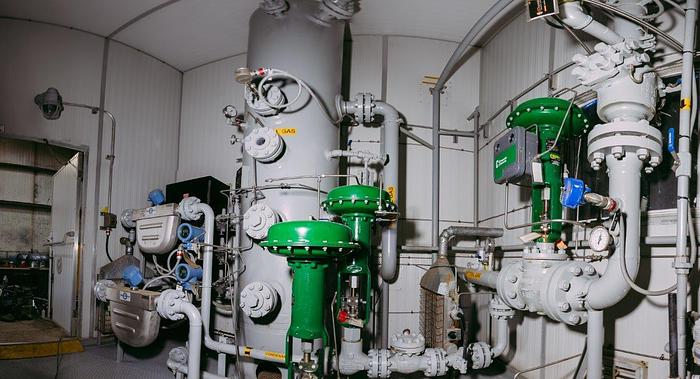

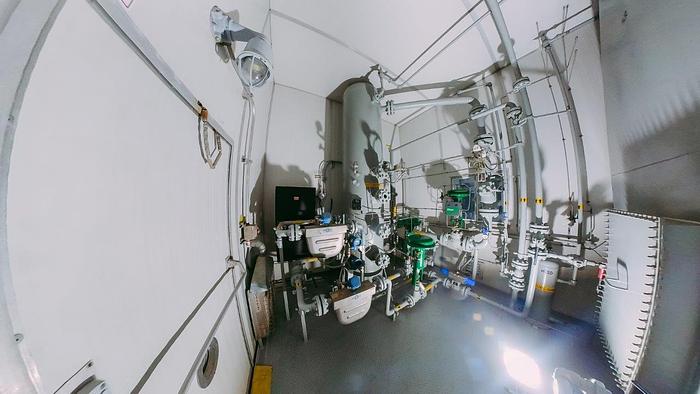

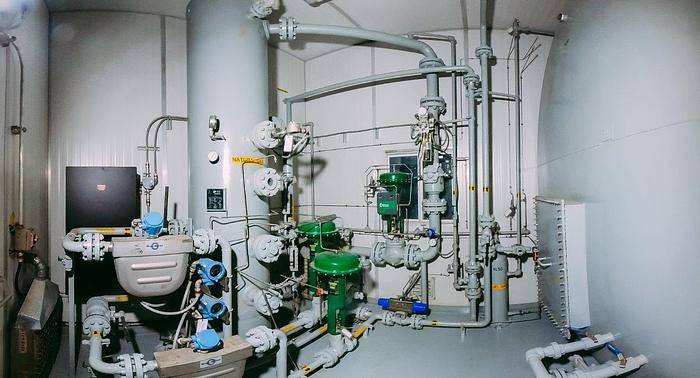

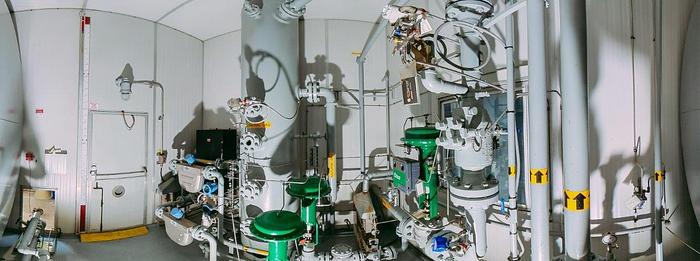

30” x 10’ 1440# 600# ANSI Vertical 3 Phase Separator w/4” 600# ANSI Inlet & Gas Outlet, 1/8” CA, PWHT, 100% RT

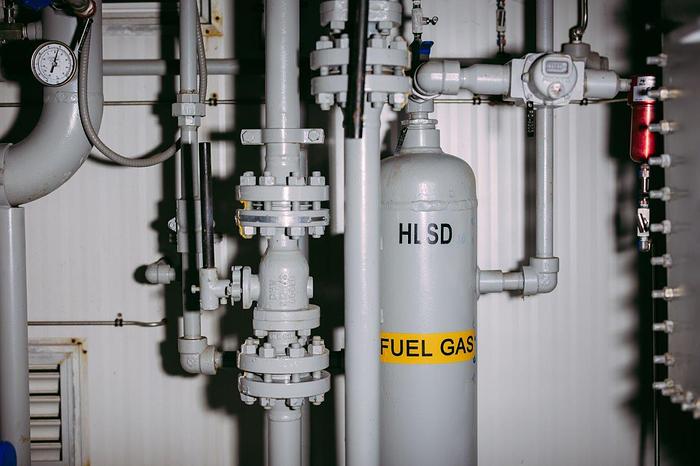

Kimray Electric HLSD

Norriseal LLSD

ESD Valve on Liquid Outlets

(2) Norriseal 1001A Level Controllers

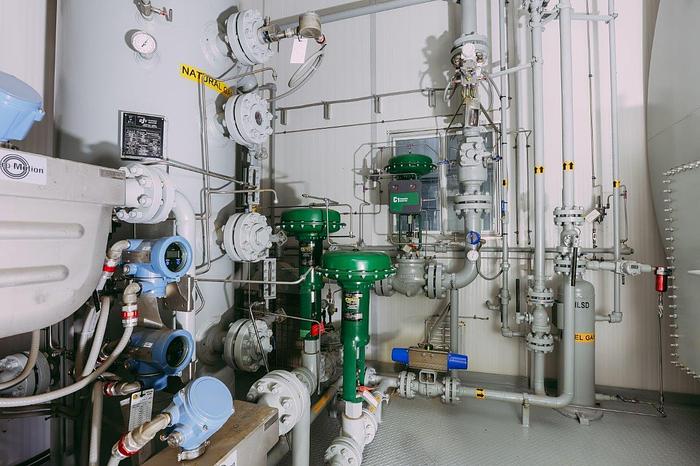

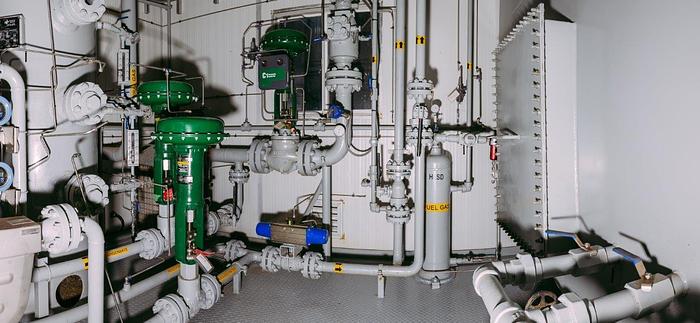

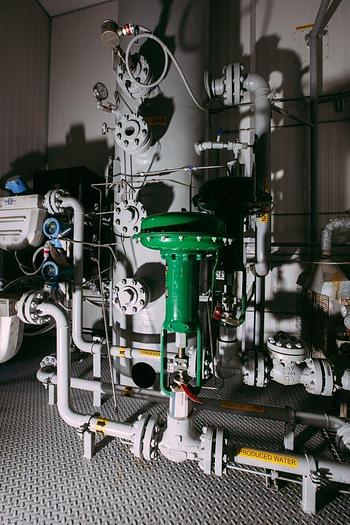

(2) Fisher 2” 600# ANSI 667-45 D Body Level Control Valves

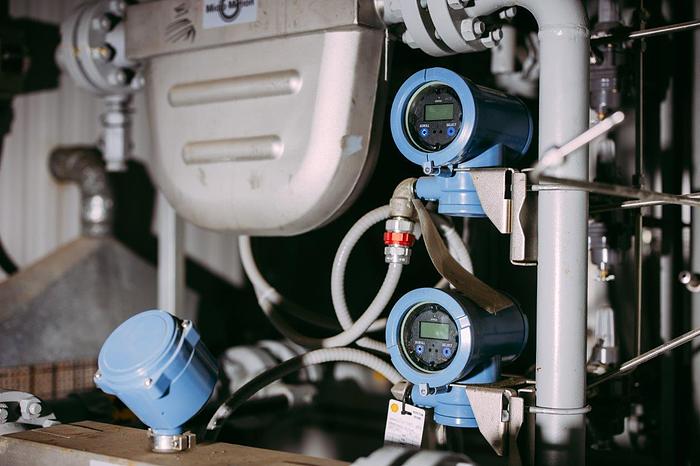

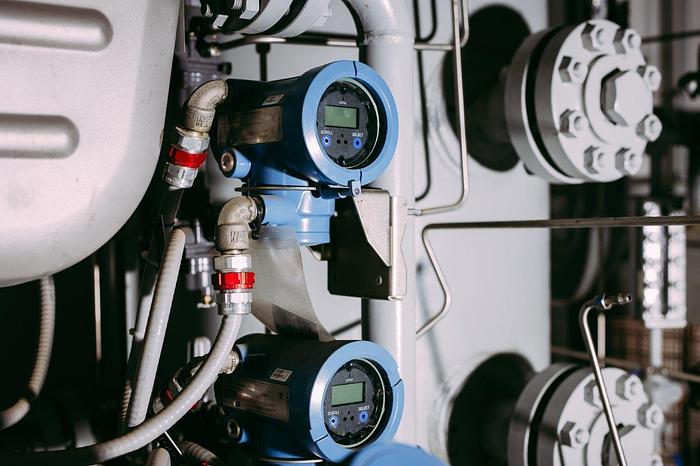

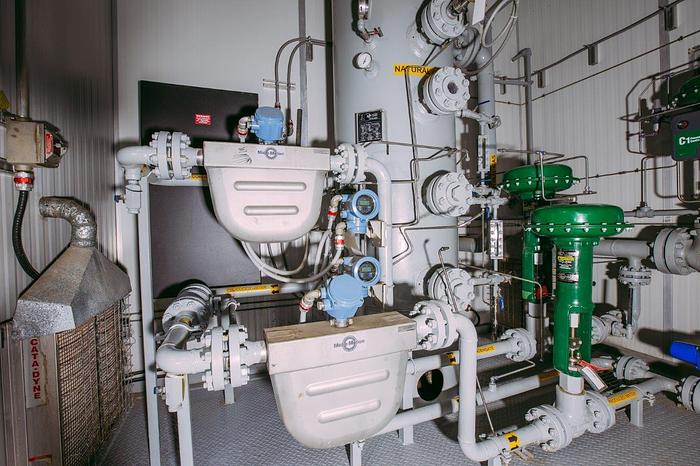

(2) Micro Motion 2” 600# ANSI Liquid Meters w/Transmitter Sensor

Cameron 4” 600# ANSI Senior Orifice Changer

Fisher 205E Multivariable Transmitter

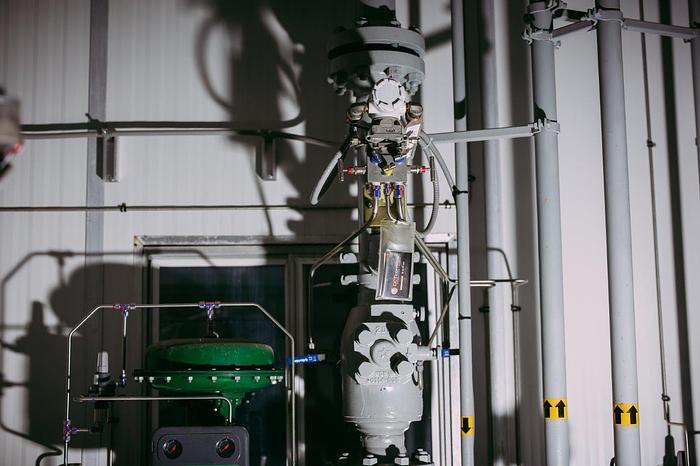

Fisher 4” 600# ANSI 667-70 ET Body Back Pressure Control Valve

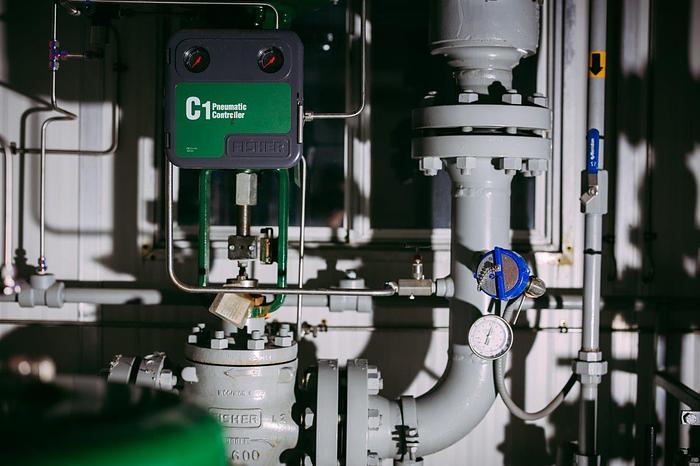

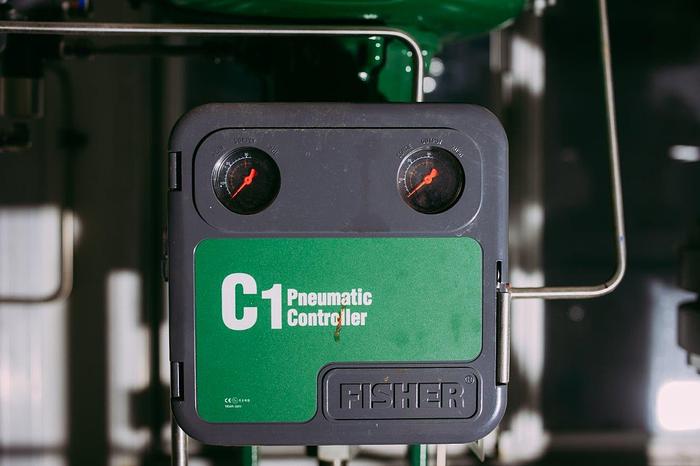

Fisher 4150 C1 Pressure Controller

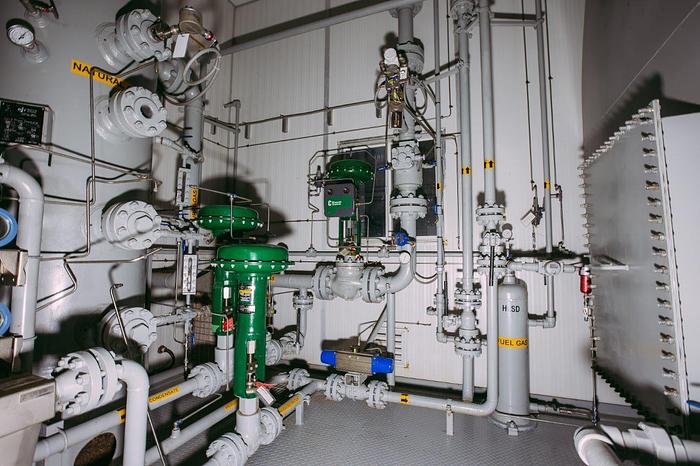

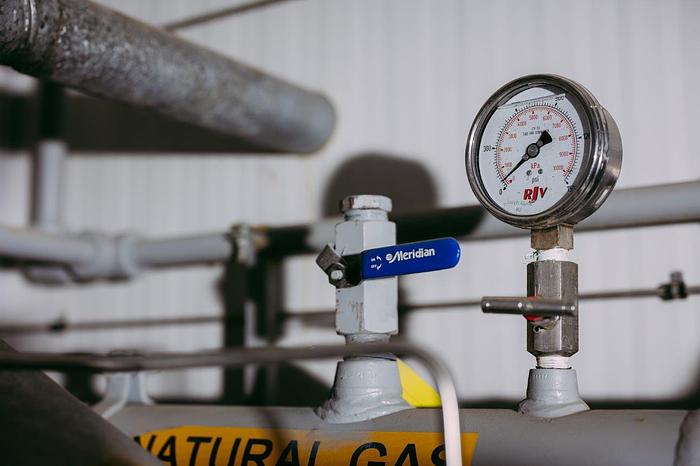

8’ x 30” Fuel Gas Scrubber, PSV, PCV’s

Roots 1 ½” NPT Fuel Gas Meter

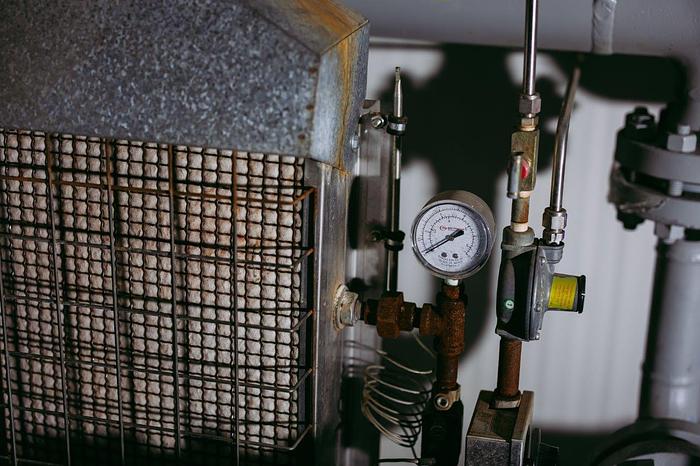

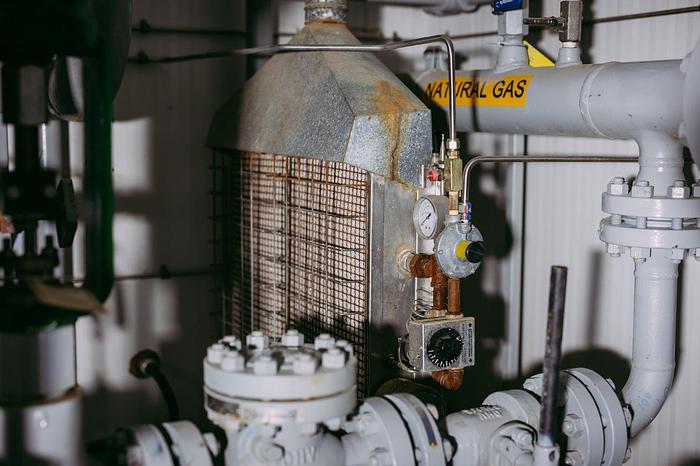

(2) Catadyne 24,000 BTU/Hr. Building Heater (external propane fired)

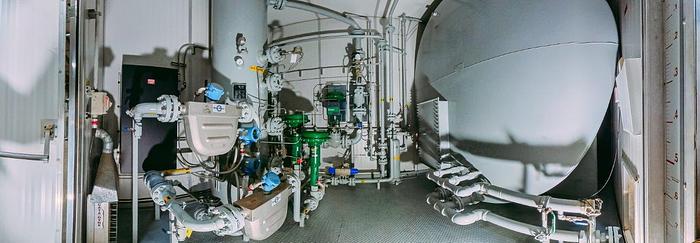

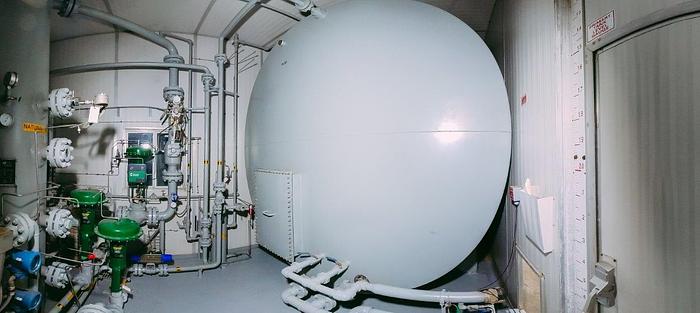

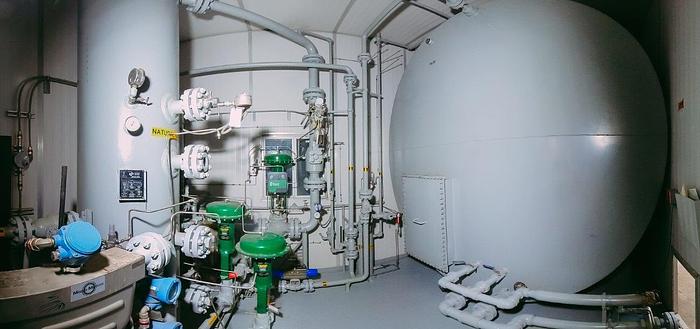

400 Barrel Horizontal Integral Storage Tank Devoe Internal Coating & Internal Weir Plate

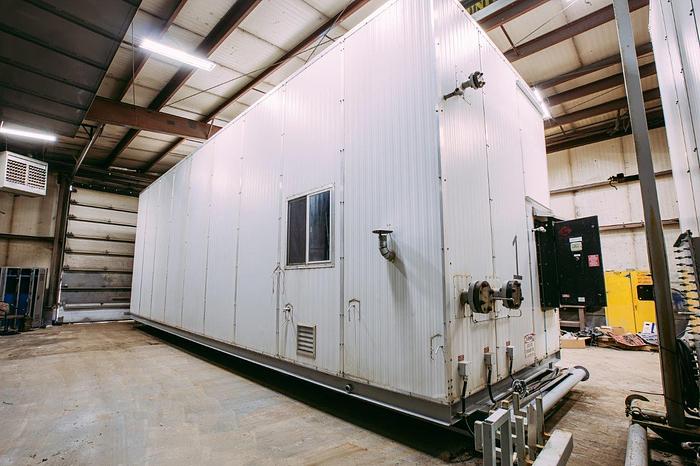

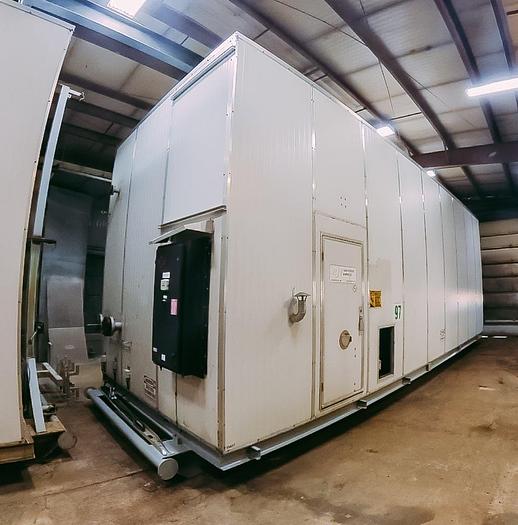

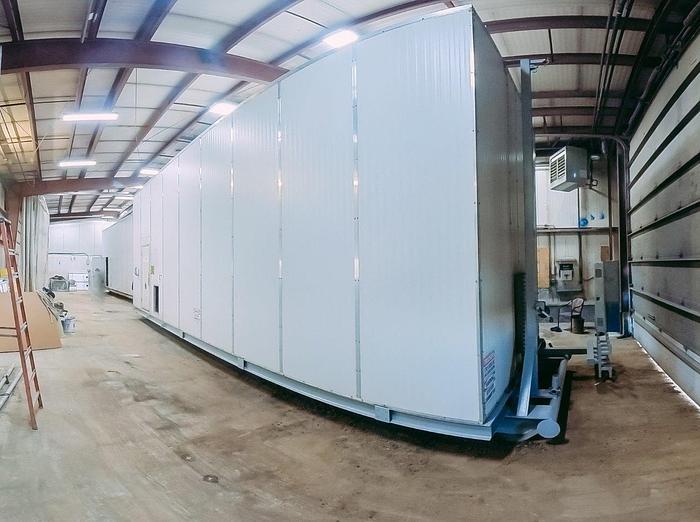

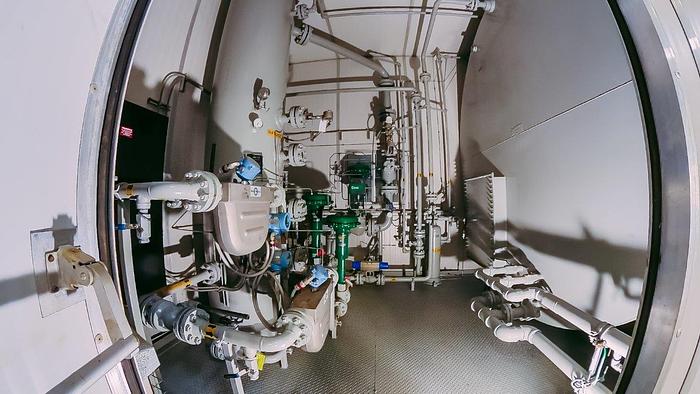

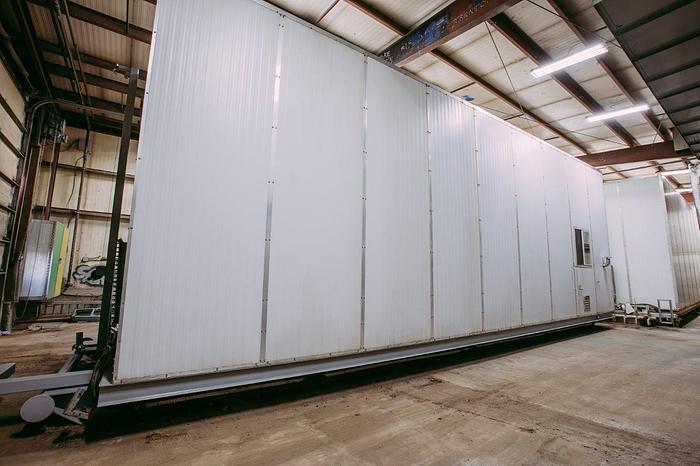

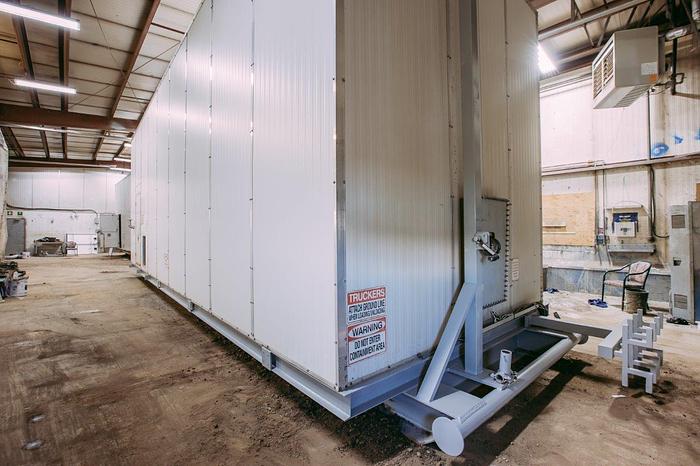

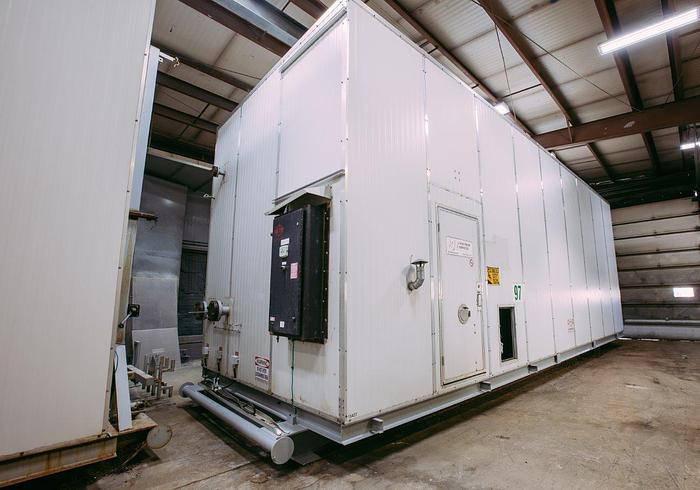

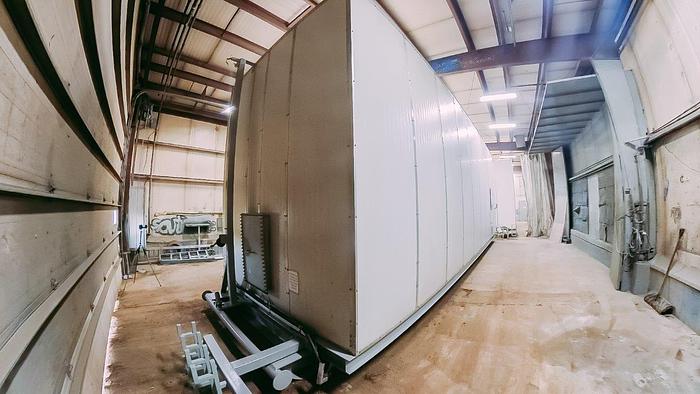

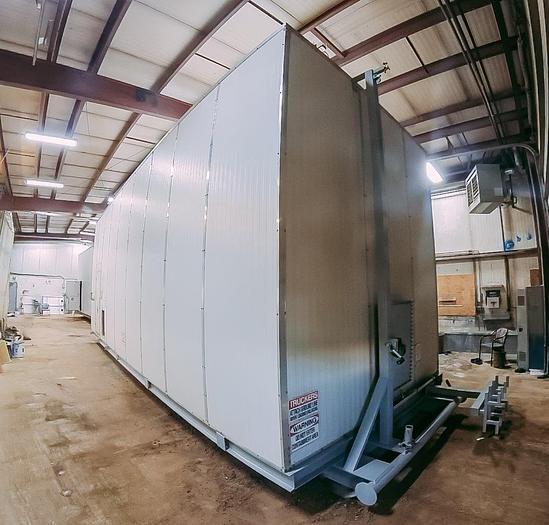

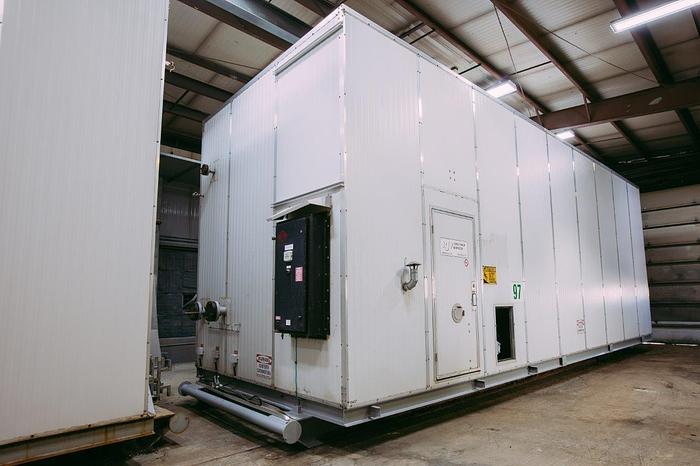

11’6” Wide x 36’ Long x 13’ High Thermal Panel Building

11’6” Wide x 38’ Long Skid with 12” @ 72# Wide Flange Beams, Checker plate flooring, Skid Drain & 3” under skid insulation

All Packages

• Drawings available
• Vessel, Piping & Tank Steam cleaned
• Piping Leak tested & repaired
• Package interior is touch up painted
• All instrumentation is function tested

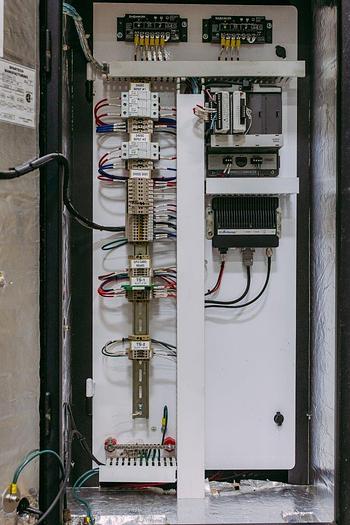

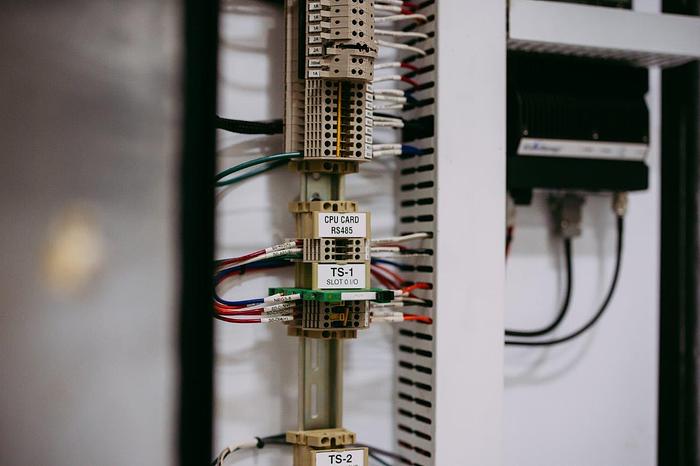

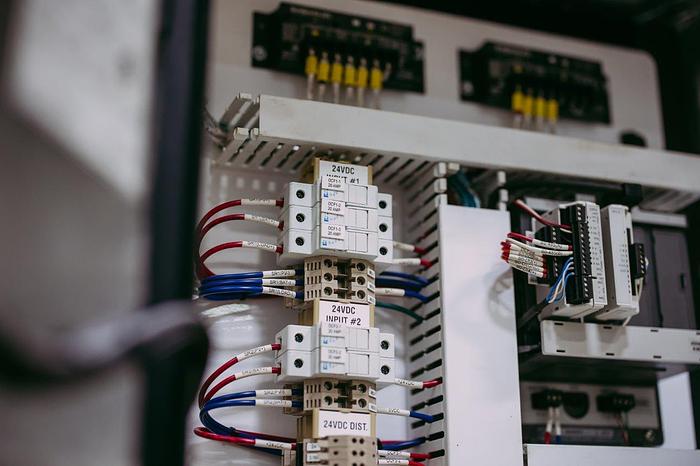

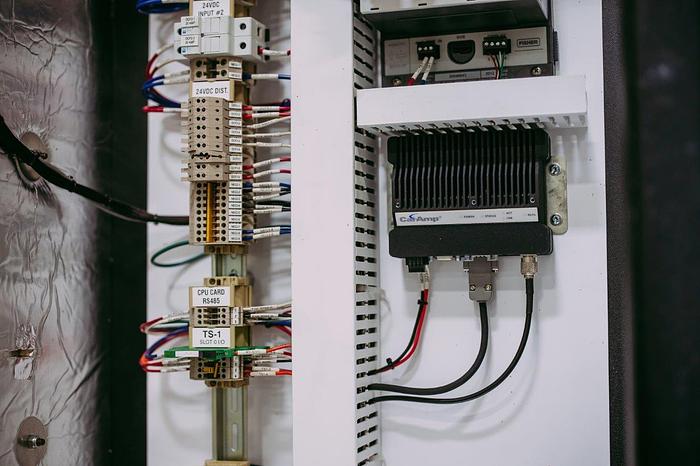

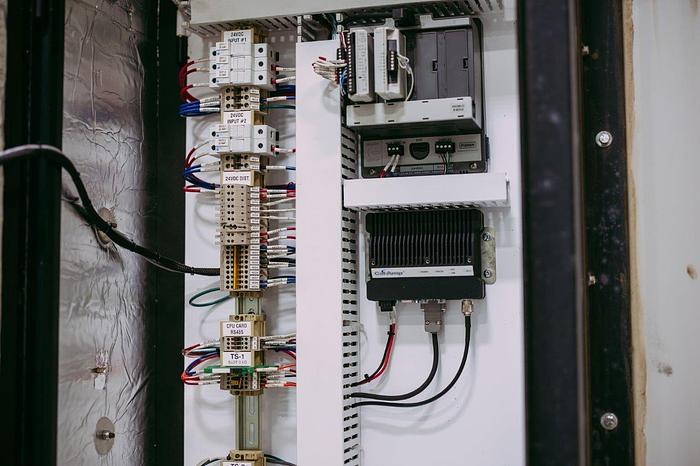

• All Electrical power up tested
• NDE:    vessel & piping Ultrasonic Thickness tested

tanks holiday tested & repaired
