400 BBL Double Wall External Heat Box, Insulated, Internally Coated Tank - 15523

400 BBL Double Wall External Heat Box, Insulated, Internally Coated Tank - 15523
Location:Redcliff Yard
or
Call 587-779-6921
Description

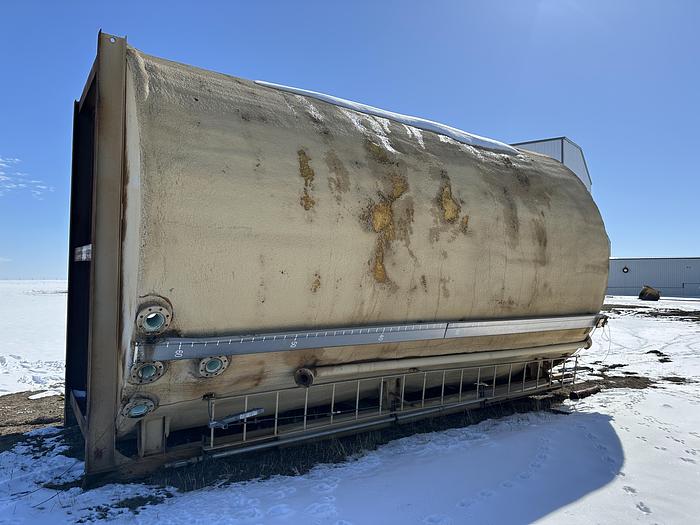

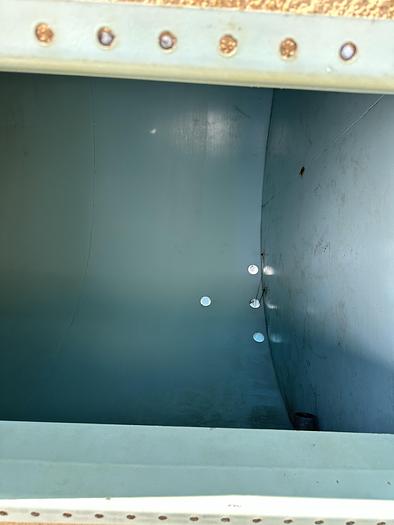

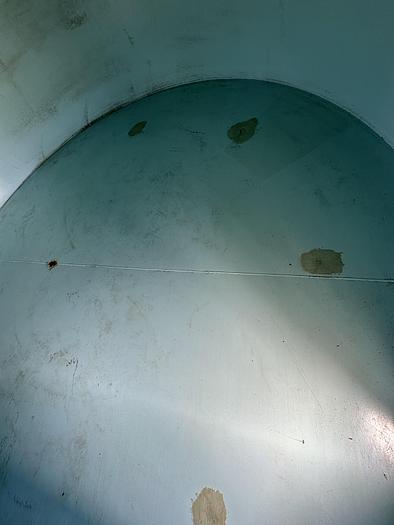

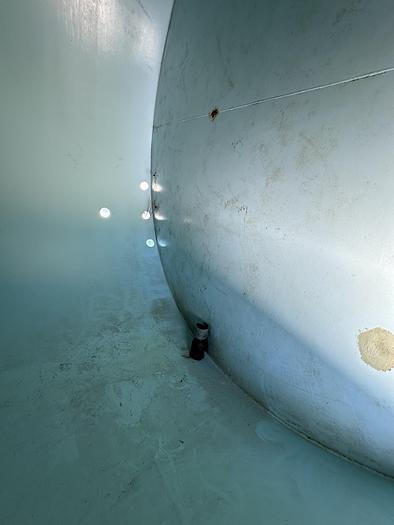

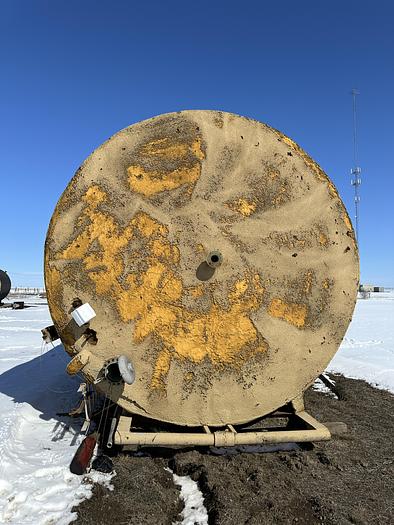

Jensen 400 BBL 16 oz double wall tank. The tank is insulated and features an internal coating and measures12 feet in diameter and 20 feet in height.

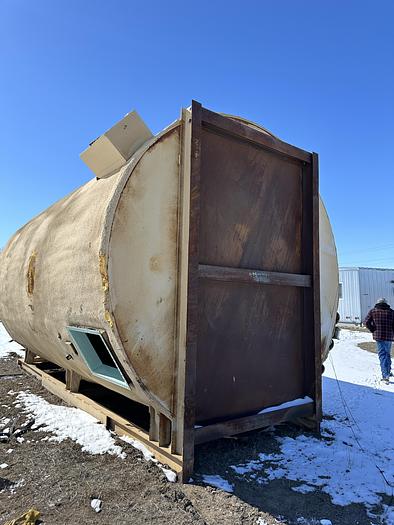

The tank is also equipped with an external heat box and a Catadyne heater.
Specifications

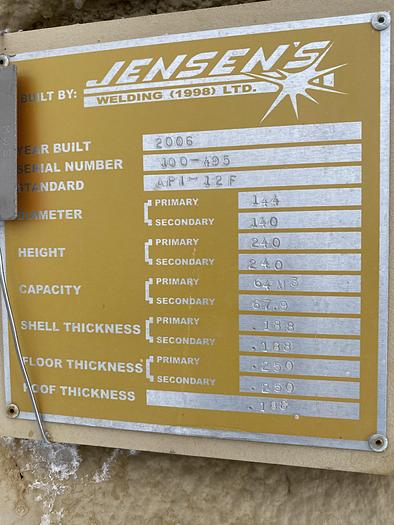

| Manufacturer | Jensen Manufacturing |
| Year | 2006 |
| Condition | Used |
| Serial Number | 400495 |
| Stock Number | 15523 |
| Capacity (bbl) | 400 |
| Wall - Single or Double | Double |
| Diameter | 12' |
| Height | 20' |
| Design Pressure | 16 oz. |
| Skid | L-Skid |
| Insulation | Yes |
| Heat | External Heat Box with Catadyne Heater |
| Coating | Internal Coating |
| Thief Hatch | 8" Standard |
| Level Indicator | Yes |
