16" 1440 PSI Vertical Separator Package w/Integral 100 Bbl Double Wall Fiberglass Tank - 15538
16" 1440 PSI Vertical Separator Package w/Integral 100 Bbl Double Wall Fiberglass Tank - 15538
Location:Stettler, Canada
or
Call 587-779-6921
Description

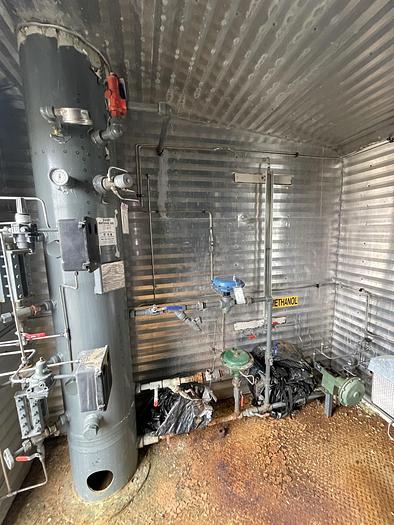

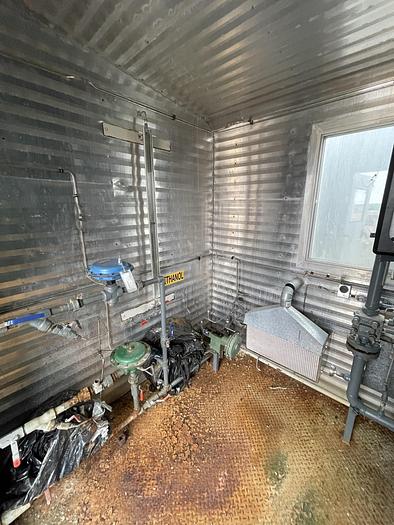

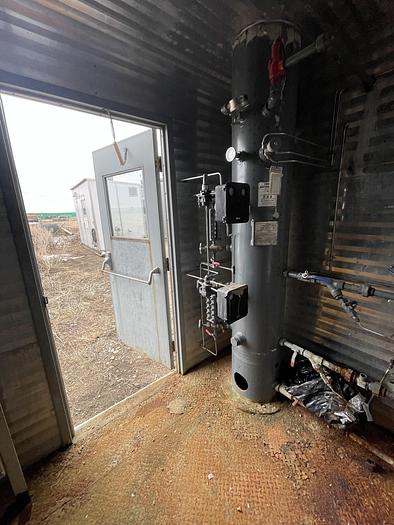

Orban 16” x 7’6” 1440 PSI 3 Phase Vertical Separator Package
(2) Norriseal 1001A LC, (2) Norriseal 2275 LCV, Reflex Sight glass & SG Valves

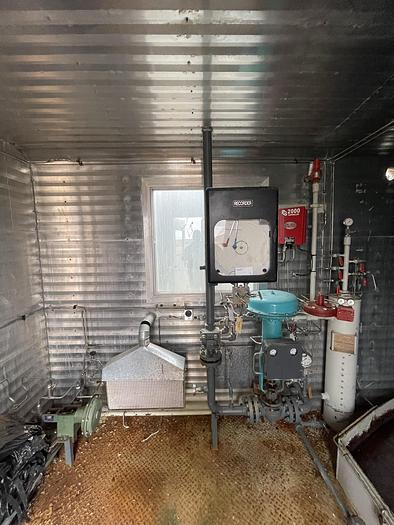

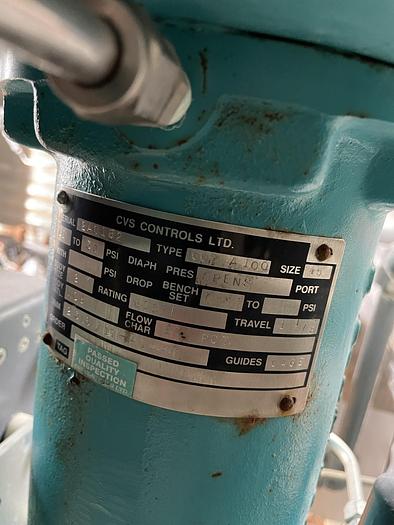

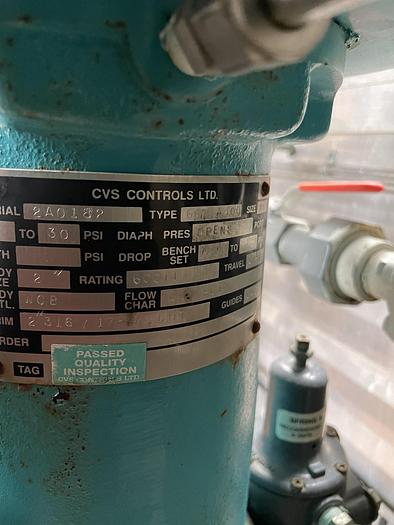

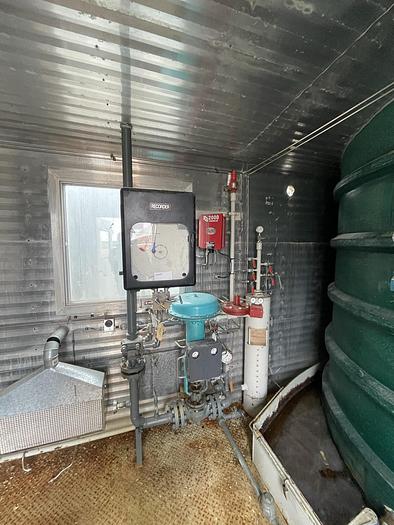

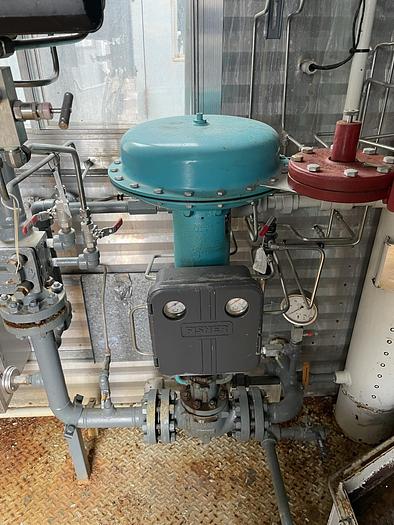

Northstar 2” Simplex meter run w/"D" Body BPCV, 4150 Pressure Controller, Barton 2 Pen Recorder
Fuel Gas Scrubbing System
Methanol Pump
12” x 24” Catalytic Heater

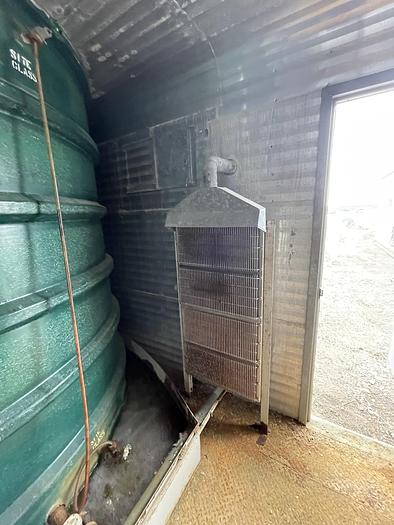

96" x 24" Catalytic Heater for Tank

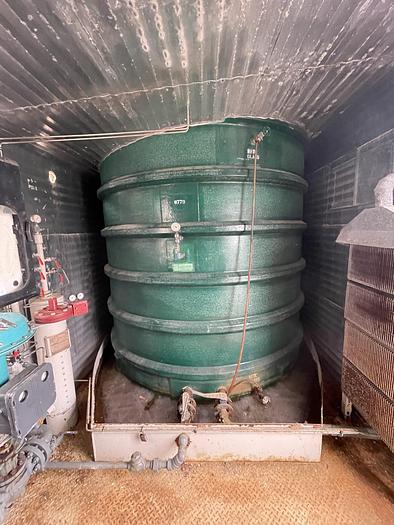

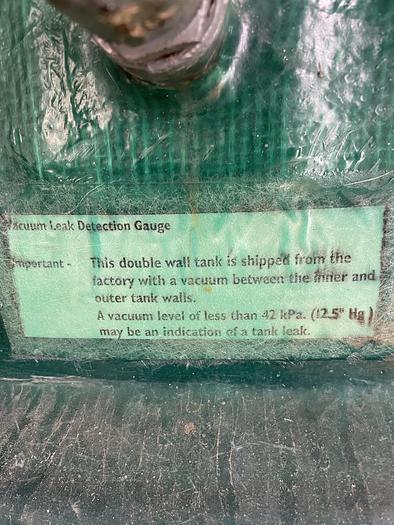

Skid mounted Double Wall 100 Barrel Fiberglass Tank
Tank Level Indication system, Methanol Level/Rate Gauge

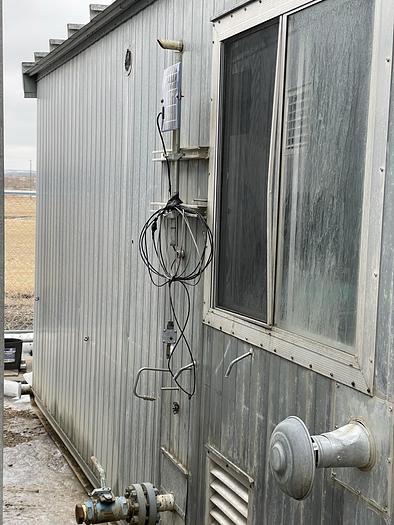

Approximately 8’ x 15’ Building & Skid
Specifications

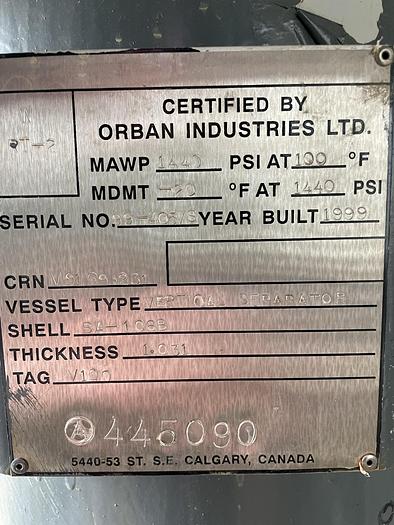

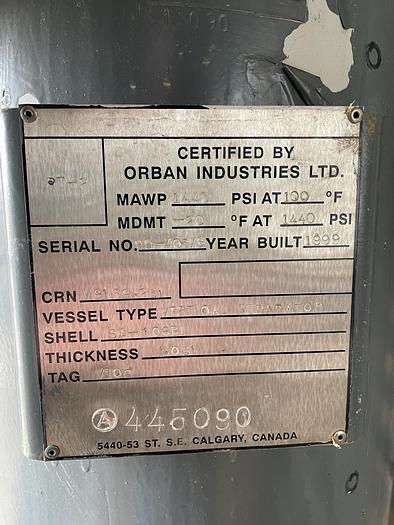

| Manufacturer | Orban Industries Ltd. |
| Year | 1999 |
| Condition | Used |
| Serial Number | 99-405VS |
| Stock Number | 15538 |
| Diameter | 16" |
| Design Pressure | 1440 PSI |
| Orientation | Vertical |
| Service | Sweet |
| Length | 7'6" |
| Phase | 3 Phase |
| A# | 445090 |
| CRN# | M9169.231 |
| Sales Gas | 2" 600 ANSI Simplex Meter Run |

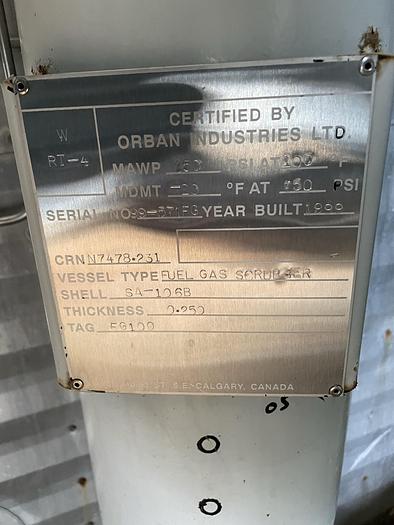

| Fuel Gas | 6 5/8" x 30" 150 PSI Fuel Gas Scrubber w/ PSV & Fuel Gas Regulator |

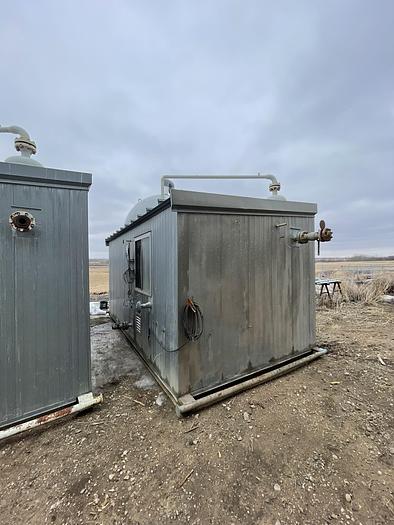

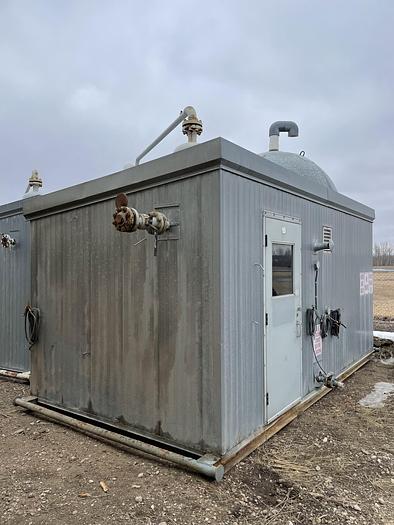

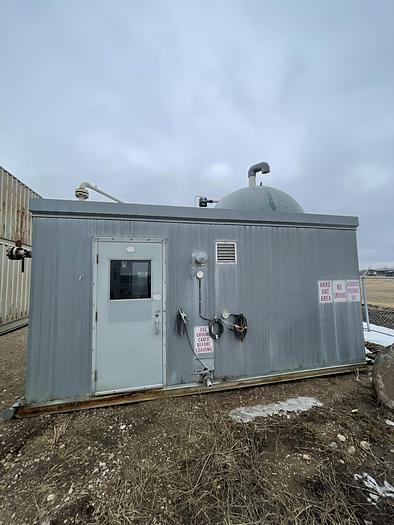

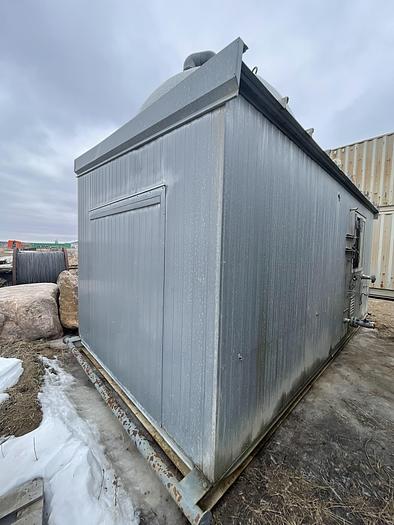

| Building | 8' W x 15' Long Self Framing Building |
| Skid | 8' W x 15' Long Structural Steel Skid w/checker plate floor |
