1,250,000 BTU Hr. 54" x 20' Sour Lineheater - 14394

1,250,000 BTU Hr. 54" x 20' Sour Lineheater - 14394

Location:Stettler, Canada

or
Call 587-779-6921

Specifications

ManufacturerPlains Oil Ltd.
ConditionUsed

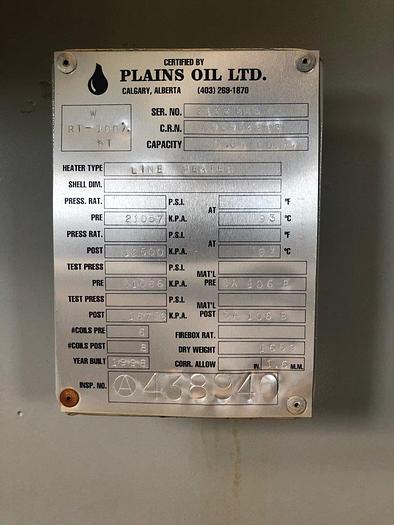

Serial Number2133CB4
Stock Number14394
Rating (BTU/Hr)1.2 MMBTU/Hr
Diameter54"
Length20'
Preheat Coil6 Pass Preheat Coil: 3” 1500 ANSI RTJ 3054 PSI, 1/16” Corrosion Allowance, PWHT & 100% Radiography
Reheat Coil8 Pass Reheat Coil: 3” 900 ANSI RTJ 1813 PSI, 1/16” Corrosion Allowance, PWHT & 100% Radiography
InsulationHeater Shell Insulated
A#A#438940
CRN#N9595.213
Building12’6” x 16’ x 12’6” High Gable Style Self Framing Building w/ (2) Doors w/windows, (2) Windows, Vent & removable panel
Skid12’6” x 30’ Structural Steel Skid
