16" 1440 PSI Vertical Sour Separator Package - 15193
16" 1440 PSI Vertical Sour Separator Package - 15193
Location:Stettler, Canada
or
Call 587-779-6921
Description

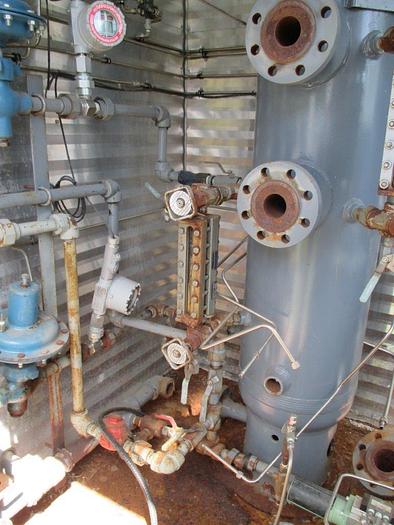

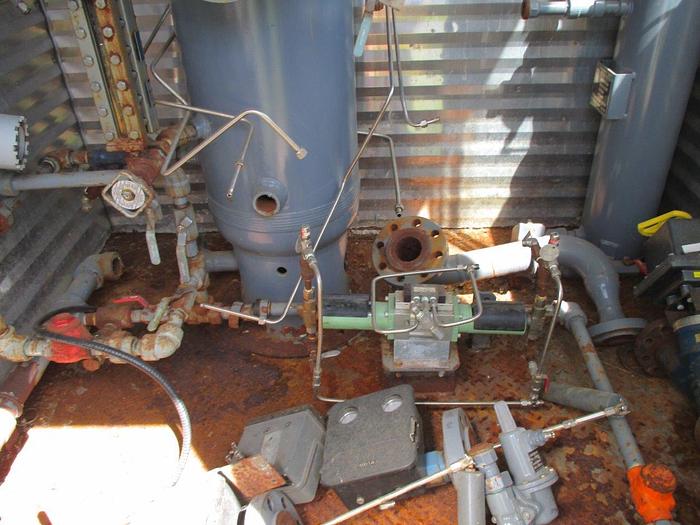

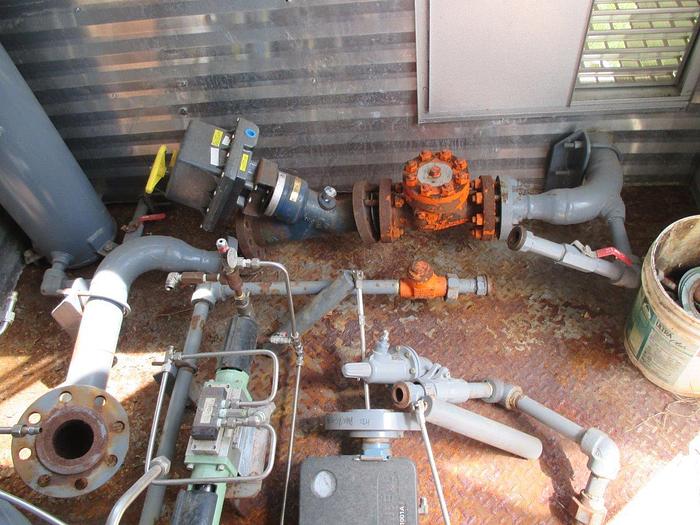

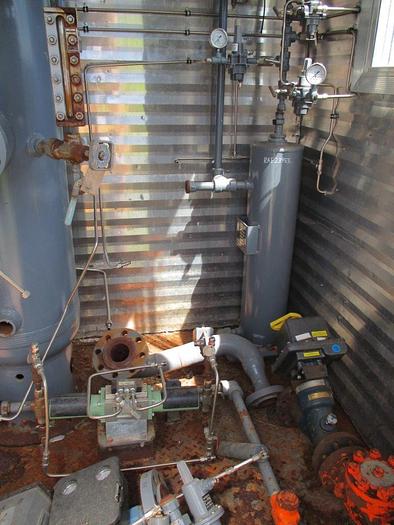

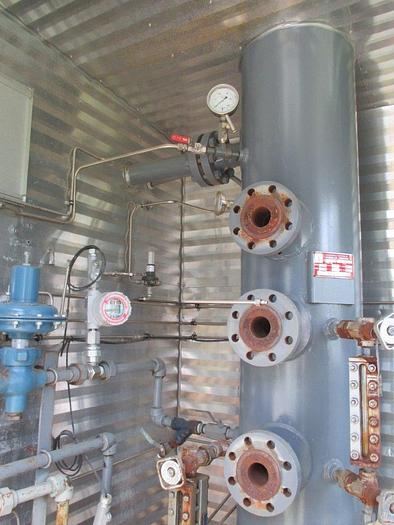

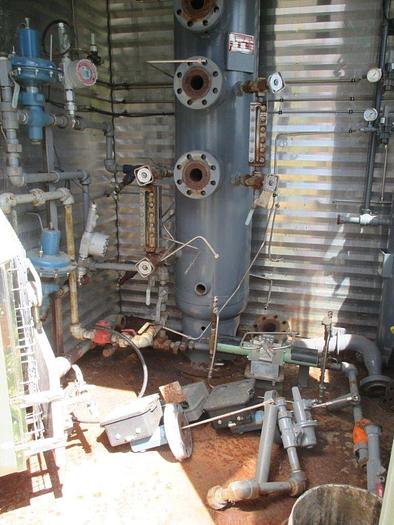

Field run 16" x 7'6" 1440 PSI vertical sour separator package from Penfabco .

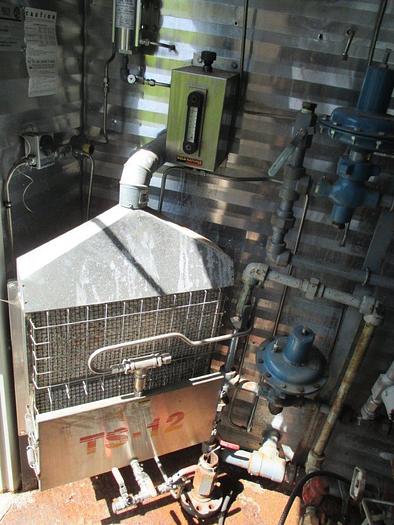

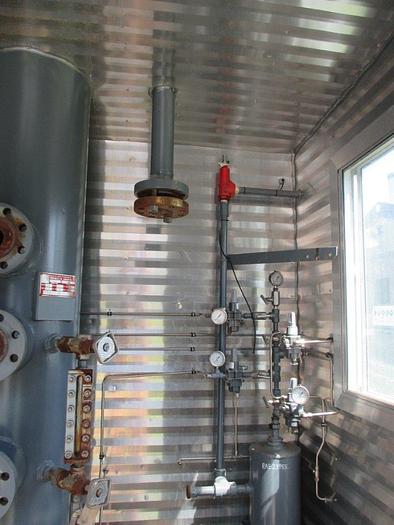

The system features a 3-inch 600 ANSI RF inlet and outlet. And includes a 3-inch 600 ANSI Senior Meter Run for sales gas measurements. Additionally, a fuel gas system is integrated, consisting of an 8 5/8" x 36" 150 PSI fuel gas scrubber equipped with a pressure safety valve (PSV) and fuel gas regulator.. Housed within a self-framing building measuring 7 feet wide by 7 feet long and 8 feet high, and mounted on an L-shaped skid measuring 7 feet wide by 7 feet long and 12 feet high.

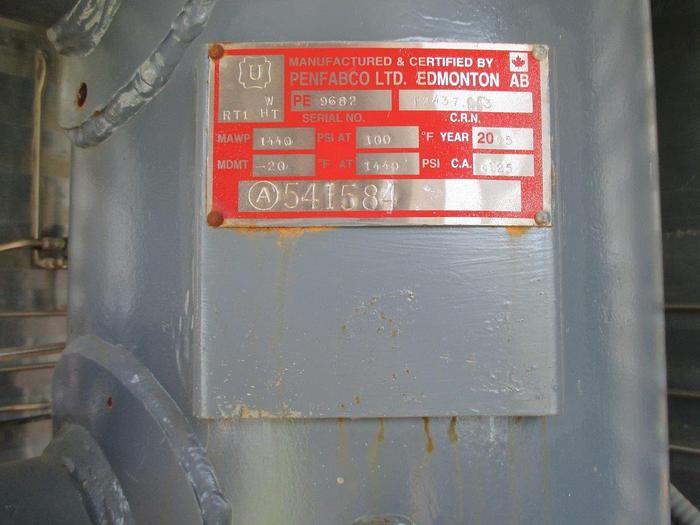

A# 541584
CRN# P-2437.213
Specifications
| Manufacturer | Penfabco |
| Year | 2005 |
| Condition | Used |
| Serial Number | PE9682 |
| Stock Number | 15193 |
| Diameter | 16" |
| Design Pressure | 1440 PSI |
| Orientation | Vertical |
| Service | Sour |
| Length | 7'6" |
| Phase | 3 |
| A# | 541584 |
| CRN# | P-2437.213 |
| Inlet | 3" 600 ANSI RF |
| Outlet | 3" 600 ANSI RF |
| Sales Gas | 3" 600 ANSI Senior Meter Run |

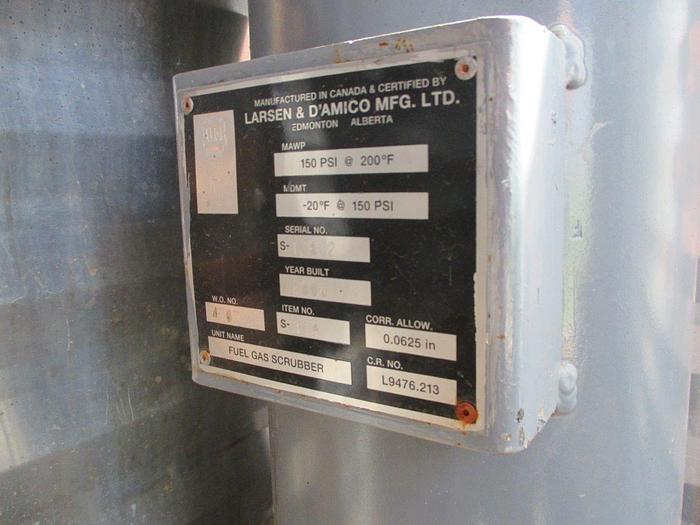

| Fuel Gas | 8 5/8" x 36" 150 PSI Fuel Gas Scrubber w/ PSV & Fuel Gas Regulator |

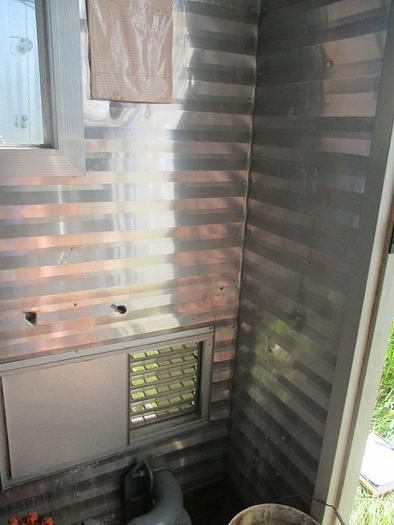

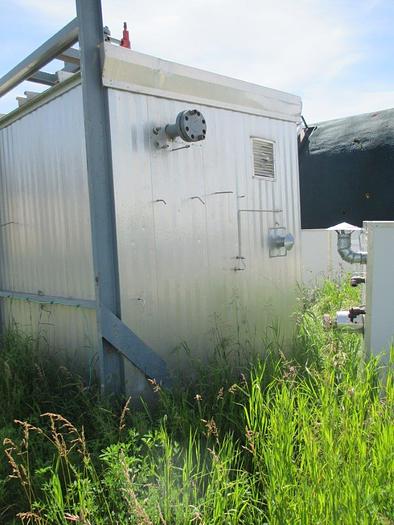

| Building | 7' W x 7' Long x 8' High Self Framing Building |

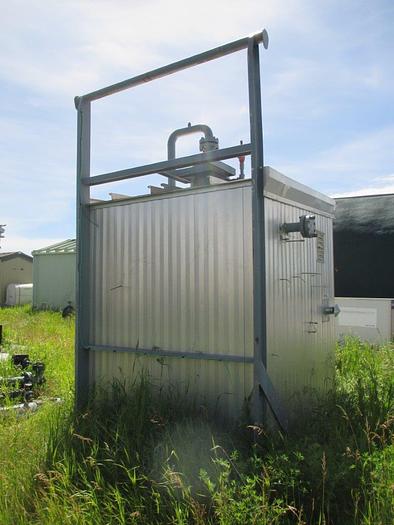

| Skid | 7' W x 7' Long x 12' High L-Shaped Skid |
