400 BBL ThermoVault Tank - 15570
400 BBL ThermoVault Tank - 15570
Location:Crossfield, Canada
or
Call 587-779-6921
Description
New Tank that is designed for tank treating using Catalytic Heat.
EnviroVault Details
6’Wide x 12’Tall
(QTY 3) 24” x 72” Catalytic (Flameless) Heaters
180,000 BTU/hr (Natural Gas)
(QTY 3) 240V Wiring Packages
(QTY 3) Sample Ports (3’, 6’, 9’)
(QTY 2) 3” RFSO Flanged Connections
Tank Details
Single wall design
3/16” Shell & Roof
1/4” Floor – Primary
One (1) 24” x 36” API Manway
Thief Hatch, 16 oz/ 0.4 oz

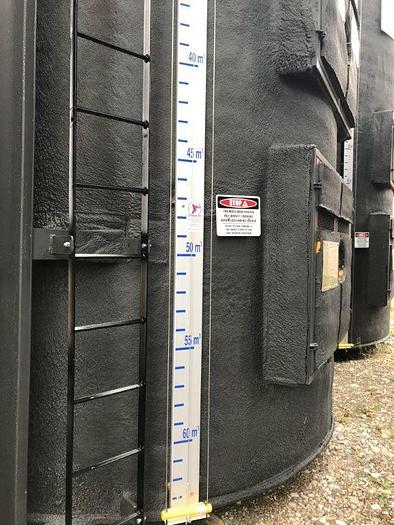

Ladder c/w safety hoop
Hawkeye Industries gauge board c/w RedTail Hawk Gauge Head
Designed to API-12F modified
Specifications
| Manufacturer | Highland Projects |
| Year | 2015 |
| Condition | New |
| Serial Number | 5031 |
| Stock Number | 15570 |
| Capacity (bbl) | 400 |
| Wall - Single or Double | Single Wall |
| Diameter | 12' |
| Height | 20' |
| Skid | L-Skid |
| Insulation | Urethane Foam c/w Elastomeric Coating |
| Heat | (QTY 3) 24” x 72” Catalytic (Flameless) Heaters |
| Coating | NIL |
| Thief Hatch | Thief Hatch, 16 oz/ 0.4 oz |
| Level Indicator | Hawkeye Industries gauge board c/w RedTail Hawk Gauge Head |
